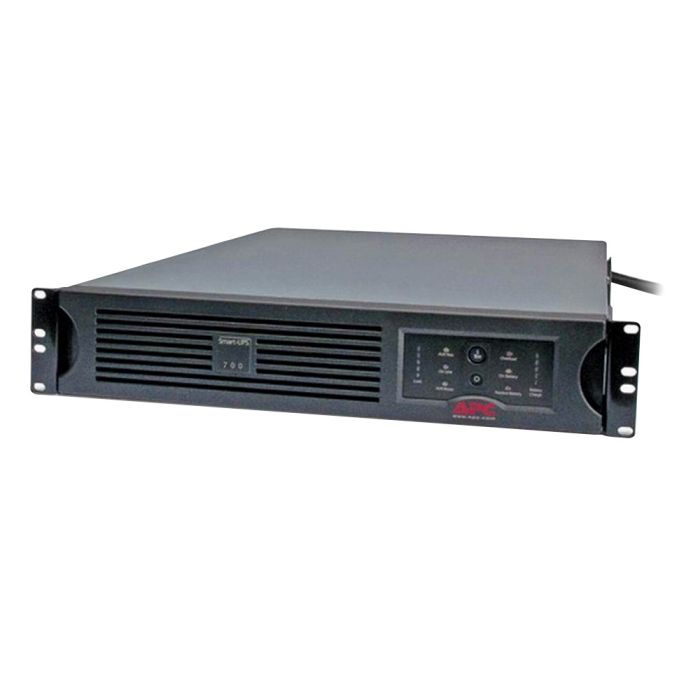

APC Smart-UPS 700VA 450W RM 2U 120V SU700R2BX120 - Refurbished
APC Smart-UPS 700VA 450W RM 2U
Model: SU700R2BX120
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS, Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $229.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 700VA 450W, RM 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SU700R2BX120
Maximum output: 450W / 700VA
Typical backup time at half load: 7.8 minutes (255 Watts)
Typical backup time at full load: 3.1 minutes (450 Watts)
Warranty: 1 year full replacement warranty)
APC Smart-UPS 700VA 450W RM SU700R2BX120 Manual
SU700R2BX120 - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
450W |
||
|
Rated Power in VA |
700VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
4-6 years |
|
Replacement Battery |
RBC22 |
|
Battery Power in VAH |
168 VAh runtime |
|
Battery Charger Power |
56 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.5 inches (89mm, 8.89cm) |
|
Width |
19.0 inches (483mm, 48.26cm) |
|
Depth |
18.0 inches (457mm, 45.72cm) |
|
Net Weight |
48.0 lbs. (21.82kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
USB Compatible |
No |
Input:
|
Input voltage limits |
75-154 V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Maximum Configurable Power in VA |
700VA |
|
Max Configurable Power (Watts) |
450W |
|
Transfer Time |
2 ms typical |
|
UPS Type |
Line Interactive |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
42 dBA |
|
Heat Dissipation |
68 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
|
|
Emergency power off |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
