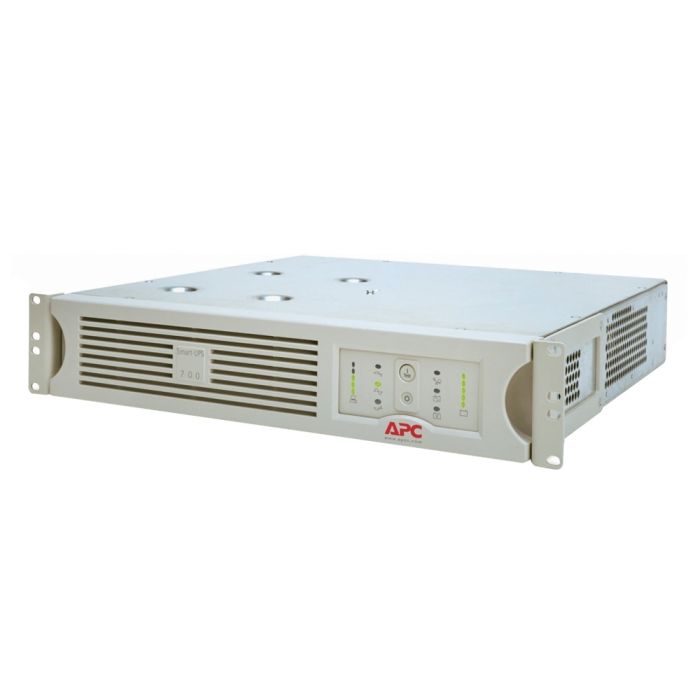

APC Smart-UPS 700VA 450W RM 2U 120V SU700RM2U - Refurbished
APC Smart-UPS 700VA 450W RM 2U 120V
Model: SU700RM2U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS, Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $229.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 700VA 450W RM 2U 120V
Condition: New batteries, refurbished UPS
Part Number: SU700RM2U
Maximum output: 450W / 700VA
Typical backup time at half load: 18.6 minutes (225 Watts)
Typical backup time at full load: 5.8 minutes (450 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 700VA 450W 120V SU700RM2U Manual
SU700RM2U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
450W |
||||
|
Rated Power in VA |
700VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of rack unit |
2U |
||||
|
Cable Length |
2.44 m |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
8.9 cm |
|
Width |
48.3 cm |
|
Depth |
45.7 cm |
|
Net Weight |
21.82 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Voltage Limits |
75 - 154 V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
700VA |
|
Maximum Configurable Power in W |
450W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Efficiency at full load |
95 % full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
42 dBA
|
|
Heat Dissipation |
68 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Additional information |
Also provides up to 400VA of 120V with (2) NEMA 5-15 receptacles |
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
4 - 6 years |
|
Replacement Battery |
RBC22 |
|
Battery Power in VAH |
168 VAh runtime |
|
Battery Charger Power |
56 W rated |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
459 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
