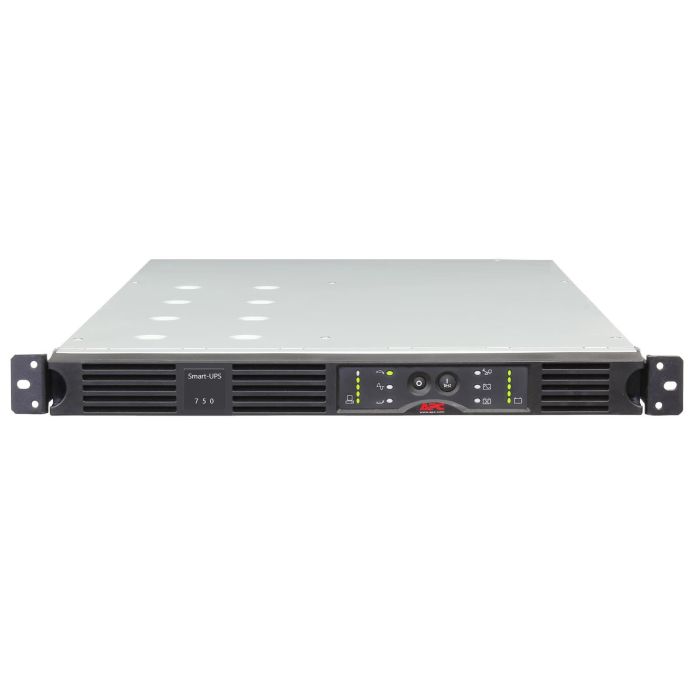

APC Smart-UPS 750VA 480W RM 1U 120V 15A Output: (1) 5-15R, EMC750RM1U - Refurbished
APC Smart-UPS 750VA 480W USB & Serial RM 1U 120V
Model: EMC750RM1UÂ
Input: NEMA 5-15P (120V - 15A)
Output: (1) 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $459.99
In stock
Manufacturer: APC
Model:Â APC SMART-UPS 750VA 480W USB & Serial RM 1U 120V
Condition: New Batteries, Refurbished UPS
Part Number: EMC750RM1UÂ
Maximum output: 480WÂ /Â 750VA
Typical backup time at half load: 23.4 minutes (240 Watts)
Typical backup time at full load: 7.1 minutes (480 Watts)
Warranty: 1 year full replacement warranty
APC SMART-UPS 750VA 480W USB & Serial RM 1U EMC750RM1UÂ - User Manual
EMC750RM1U - APC SMART-UPS 750VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
480W |
||
|
Rated Power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
1U |
||
|
Cable Length |
2.44 m |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
4.4 cm |
|
Width |
43.2 cm |
|
Depth |
66 cm |
|
Net Weight |
21.82 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Voltage Limits |
75Â - 154V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % |
|
Maximum Configurable Power in VA |
750VA |
|
Maximum Configurable Power in W |
480W |
|
UPS Type |
Line Interactive |
|
Wave Type |
Sine Wave |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
130 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
0 - 40°C |
|
Ambient Air Temperature for Storage |
-15 - 45°C |
|
Storage Altitude |
0.00Â - 15240.00 m |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0Â - 95% |
Batteries & Runtime:
|
Extended Runtime |
0
|
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
2 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
4Â - 6 year(s) |
|
Replacement Battery |
RBC34 |
|
Battery Power in VAH |
216 VAh Runtime |
|
Battery Charger Power |
107 W rated |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line: on battery: replace battery: and overload indicators
|
|
Emergency Power Off |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
480 J
|
|
Noise Suppression |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
