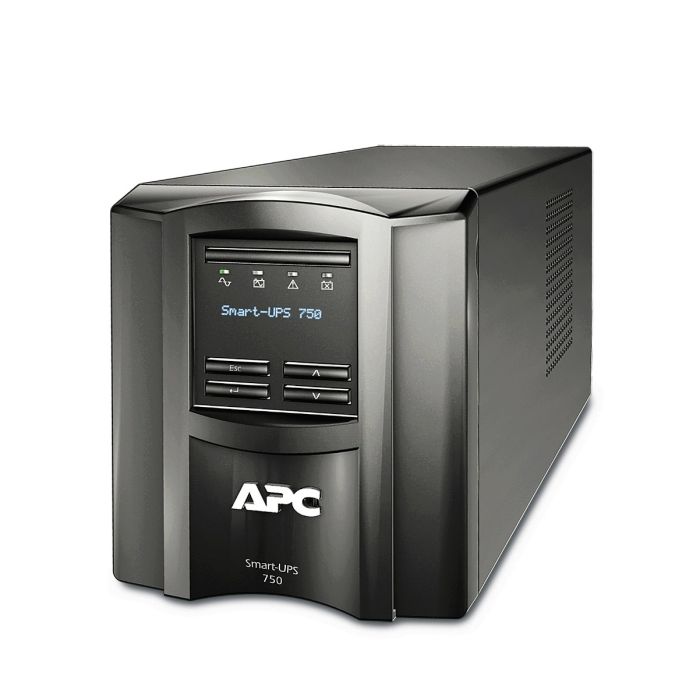

APC Smart-UPS 750VA 500W Battery Backup 15A 120V AP9631 Pre-Install, SMT750NC - Refurb
APC Smart-UPS 750VA 500W LCD 120V AP9631 Install
Model: SMT750NC
Input: NEMA 5-15P
Output: (6) NEMA 5-15R (Battery Backup)
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $299.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 750VA 500W, LCD, 120V
Condition: New batteries, refurbished UPS
Part Number: SMT750NC
Maximum output: 500W / 750VA
Typical backup time at half load: 15.5 minutes (250 Watts)
Typical backup time at full load: 4.4 minutes (500 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 750VA 500W SMT750NC - User Manual
SMT750NC - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120 V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
500W |
||
|
Rated Power in VA |
750VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
6.34 in (16.1 cm) |
|
Width |
5.43 in (13.8 cm) |
|
Depth |
14.29 in (36.3 cm) |
|
Net Weight |
29.06 lb(US) (13.18 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
750VA |
|
Max Configurable Power (Watts) |
500W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
40 dBA
|
|
Heat Dissipation |
90 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15…45 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Battery Voltage |
24V |
|
Extendable Run Time |
0 |
|
Battery Capacity |
7.0 Ah |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC43 |
|
Battery Power in VAH |
146 VAh runtime |
|
Battery Charge Power (Watts) |
49 W rated |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Communication port type |
SmartSlot, Nework Management Card 2 AP9631 Pre-Install |
Surge Protection and Filtering:
|
Surge Energy Rating |
540 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
