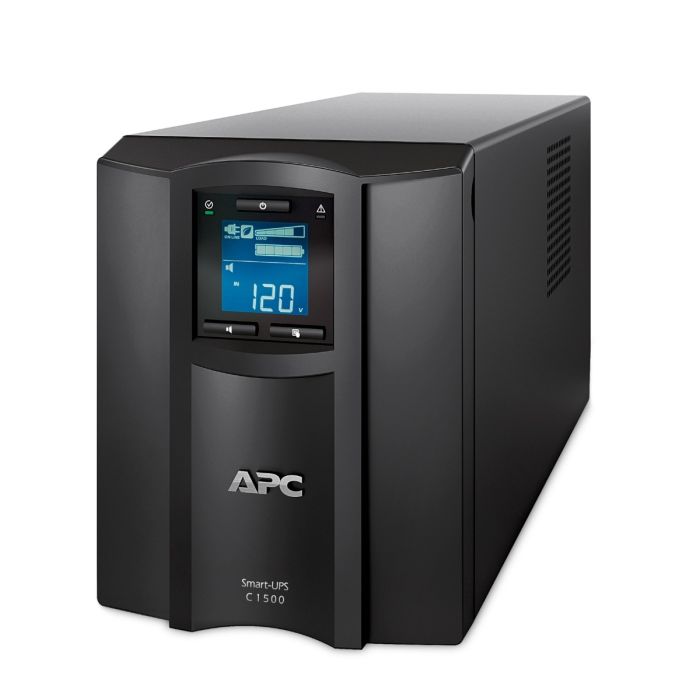

APC SmartConnect-UPS C 1500VA 900W LCD 120V Output: (8) 5-15R, SMC1500C - Refurbished
APC Smart-UPS 1500VA 500W SmartConnect LCDÂ 120V - 15A
Model: SMC1500C
Input: NEMA 5-15P (120V - 15A)
Output: (8) 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $549.99
In stock
Manufacturer: APC
Model: APC Smart-UPS C 1500VA 900W 120V SmartConnect
Condition: New batteries, refurbished UPS
Part Number: SMC1500C
Maximum output: 900W / 1500VA
Typical backup time at half load: 20.4 minutes (450 Watts)
Typical backup time at full load: 7.8 minutes (900 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS C 1500VA 900W SMC1500C - User Manual
SMC1500C - APC Smart-UPS C Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Other Input Voltage |
110V |
||
|
Main Output Voltage |
120V |
||
|
Other Output Voltage |
110V |
||
|
Rated Power in W |
900W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
3U |
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Battery Type |
Lead-Acid Battery |
||
|
Number of Cables |
1 |
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC6 |
|
Battery Power in VAH |
254 VAh runtime |
|
Battery Charge Power (Watts) |
96 W rated |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Product Web Sub-Family |
Cloud-enabled monitoring |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
8.62 inches (219mm, 21.9cm) |
|
Width |
6.73 inches (171mm, 17.1cm) |
|
Depth |
17.28 inches (439mm, 43.9cm) |
|
Net Weight |
44.31 lbs. (20.1kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
Efficiency at Full Load |
85-136 V adjustable |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum configurable power in VA |
1440VA |
|
Max Configurable Power (Watts) |
900W |
|
Transfer Time |
6ms typical : 10ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CULus |
Environmental:
|
Acoustic Level |
45 dBA
|
|
Online Thermal Dissipation |
225 Btu/h
|
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0Â - 95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Free Slots |
0 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
680 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
