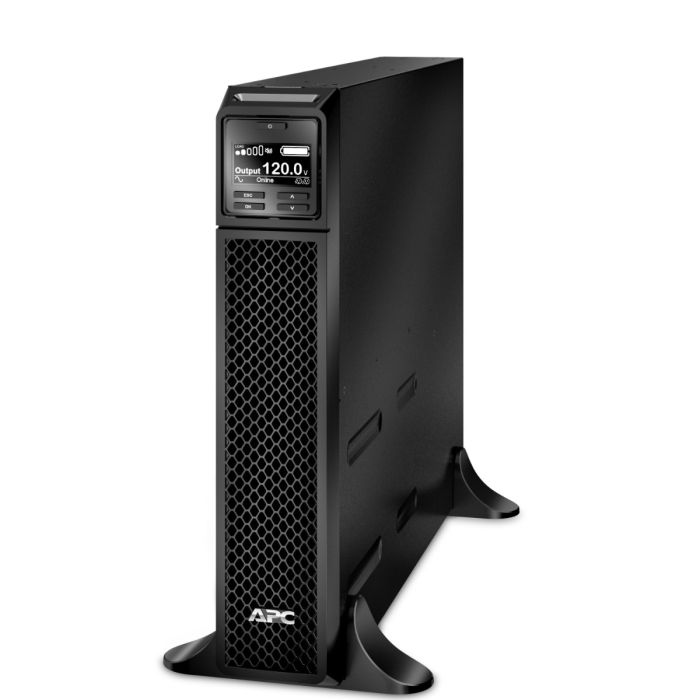

APC Smart-UPS Online 2200VA 1800W Double Conversion 20A 120V Tower SRT2200XLA - Refurbished
APC Smart-UPS On-Line 2200VA 1800W 120V - 20A
Model: SRT2200XLA
Input:Â NEMA 5-20P (120V - 20A)
Output: (6) 5-20R, (1) L5-20R
Double Conversion, Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $1,322.49
In stock
Manufacturer: APC
Model:Â APC Smart-UPS On-Line 2200VA 1800W, Tower, 20A 120V - Double conversion UPS
Condition: New Batteries, Refurbished UPS
Part Number: SRT2200XLA
Maximum output: 1800WÂ /Â 2200VA
Typical backup time at half load:Â 10.1 minutes (900 Watts)
Typical backup time at full load: 3.1Â minutes (1800 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS On-Line 2200VA 1800W Tower SRT2200XLA - User Manual
SRT2200XLA - APC Smart-UPS On-Line 2200VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Kw Rating |
1800W |
||||
|
Rated power in VA |
2200VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Product Web Sub-family |
High Density |
|
Number of Power Module |
1400 |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
3.35 in (8.5 cm) |
|
Depth |
22.99 in (58.4 cm) |
|
Net Weight |
55.12 lb(US) (25 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
|
Mounting Position |
Vertical |
Input:
|
Input Frequency |
40 - 70 Hz auto-sensing |
Output:
|
Max Configurable Power (Watts) |
1800W |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest Factor |
3:1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum Configurable Power in VA |
2200VA |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Relative Humidity |
0Â - 95% Non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95 % Non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Heat Dissipation |
535 Btu/h |
|
IP Degree of Protection |
IP20 |
Batteries & Runtime:
|
Included Battery Modules |
1
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
Battery Voltage |
72V |
|
Battery Charge Power (Watts) |
102W rated |
|
Battery power in VAH |
306 VAh runtime |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
APCRBC141 |
|
Battery Option |
SRT72BP 1 918 VAh |
|
Extendable Run Time |
1 |
Communications & Management:
|
Free Slots |
1
|
|
Network Card |
Network management card (2 or 3) with environmental monitoring - Optional
|
|
Alarm |
Audible and visible alarms: prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
340J
|
