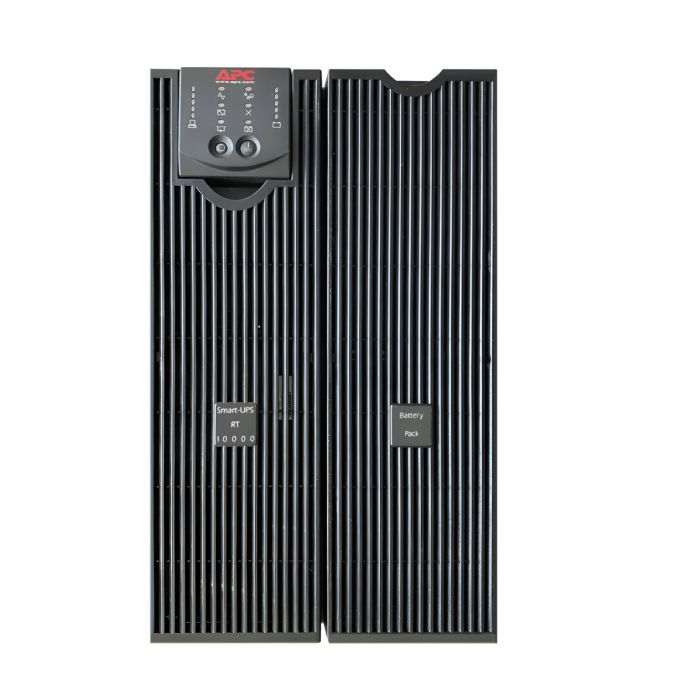

APC Smart-UPS RT 10000VA 8kW Double Conversion Online 208/240V SURT10000XLT - Refurbished
APC Smart-UPS RT 10000VA 8kW Tower SURT10000XLT
Model: SURT10000XLT
Input: Hard Wire 3-wire (2PH + G)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Double Conversion Online UPS - Pure Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $3,219.99
Back Order
Manufacturer: APC
Model:Â APC Smart-UPS RT 10kVA 8kW Tower 208V
Condition: New batteries, refurbished UPS
Part Number: SURT10000XLT
Maximum output: 8kWÂ /Â 10kVA
Typical backup time at half load: 13.10 minutes (4000 Watts)
Typical backup time at full load: 4.21 minutes (8000 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 10kVA 8kW Tower SURT10000XLT - User Manual
SURT10000XLT - APC Smart-UPS RT 10kVA Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Kw Rating |
8000W |
||||
|
Rated Power in VA |
10000VA |
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
Hard Wire 3-wire (2PH + G) 1 |
||||
|
Number of Rack Unit |
6U |
Batteries & Runtime:
|
Battery Type |
Lead-Acid Battery |
|
Included Battery Modules |
4 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
2.2 h |
|
RBC Quantity |
2 |
|
Battery Charge Power (Watts) |
869 W rated |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Extendable Run Time |
1 |
General:
|
Topology |
Double Conversion Online |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
10.35 in (26.3 cm) |
|
Depth |
28.98 in (73.6 cm) |
|
Net Weight |
244.51 lb(US) (110.91 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
|
Efficiency at Full Load |
160...280 V |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
Output:
|
Maximum Configurable Power in VA |
10000VA |
|
Max Configurable Power (Watts) |
8000W |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Waveform Type |
Sine wave |
|
Efficiency at Full Load |
92 % full load |
|
Harmonic Distortion |
Less than 3% |
|
Crest Factor |
3 : 1 |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
Conformance:
|
Product Certifications |
CSA
FCC part 15 class A UL 1778 |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
Relative Humidity |
0…95 % non-condensing |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Relative Humidity |
0 - 95%Â (Non-condensing) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Acoustic Level |
55.0dBA |
|
Heat Dissipation |
2454 Btu/h |
|
IP Degree of Protection |
IP20 |
Communications & Management:
|
Free Slots |
0
|
|
Pre-Installed SmartSlot™ Cards |
Network management card with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection & Filtering:
|
Surge Energy Rating |
1265 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
