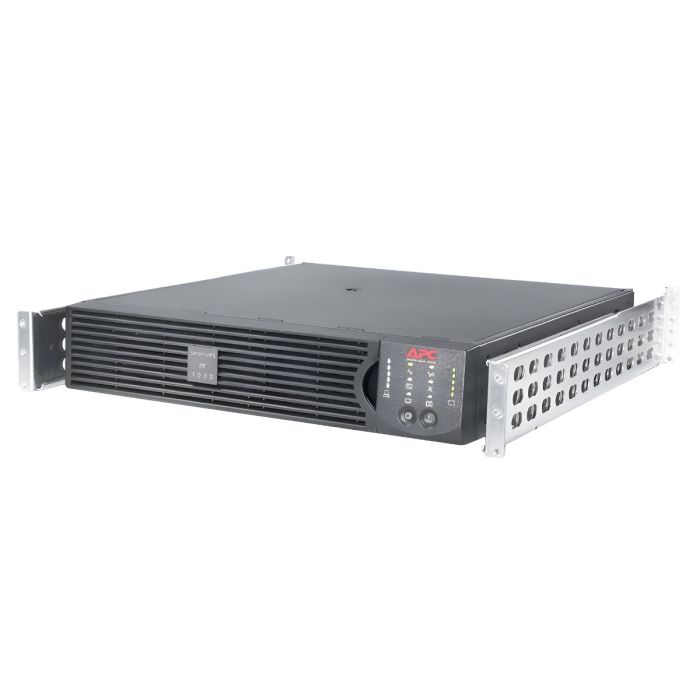

APC Smart-UPS RT 1000VA 800W Double Conversion Online RM 2U SURTA1000RMXL2U - Refurbished
APC Smart-UPS RT 1000VA 800W RM 120V 15A
Model: SURTA1000RMXL2UÂ
Input:Â NEMA 5-15P
Output: (6) NEMA 5-15R (Battery Backup)
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $517.49
In stock
Manufacturer:Â APC
Model: APC Smart-UPS RT 1000VA 800W RM 2UÂ 120V 15A
Condition: Refurbished UPS
Part Number:Â SURTA1000RMXL2U
Maximum output:Â 800 Watts / 1.0 kVA
Typical backup time at half load:Â 21 minutes (400 Watts)
Typical backup time at full load: 7.2 minutes (800 KWatts)
Output Waveform:Â Sine wave
Warranty:Â 1 Year Full Replacement Warranty
Â
APC Smart UPS RT 1000VA 800W RM 120V - SURTA1000RMXL2U - User's Manual
SURTA1000RMXL2UÂ Specifications:
Output:
|
Output power capacity |
800 Watts / 1000VA |
|
Max Configurable Power |
800 Watts / 1000VA |
|
Nominal Output Voltage |
120V |
|
Output Voltage Distortion |
Less than 3% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
|
Load Crest Factor |
3 : 1 |
|
Waveform type |
Sine wave |
|
Output Connections |
(6) NEMA 5-15R - Battery Backup |
|
Bypass |
Built-in Bypass |
Input:
|
Nominal Input Voltage |
120V |
|
Input Frequency |
50/60 Hz +/- 5 Hz (auto sensing) |
|
Input Connections |
NEMA 5-15P |
|
Cord Length |
6 feet - 1.83 meters |
|
Input voltage range for main operations |
90 - 150 V |
Batteries & Runtime:
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Included Battery Modules |
1 |
|
Typical recharge time |
3 hours |
|
Replacement Battery |
RBC57 |
|
RBC Quantity |
1 |
|
Extendable Run Time |
1 |
|
Extended Run Options |
APC-Smart-UPS-RT-1000VA-RM-120V |
|
Typical Backup Time at Half Load |
21 minutes (400Â Watts) |
|
Typical Backup Time at Full Load |
7.2 minutes (800Â KWatts) |
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232 , Smart-Slot , USB |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
|
Available SmartSlotâ„¢ Interface Quantity |
1 |
Surge Protection and Filtering:
|
Surge energy rating |
540 Joules |
Physical:
|
Maximum Height |
3.35" (8.5cm) |
|
Maximum Width |
17.0" (43.2cm) |
|
Maximum Depth |
22.0" (55.9cm) |
|
Net Weight |
60.5bs (27.5kg) |
