Description
Details
Manufacturer: APC

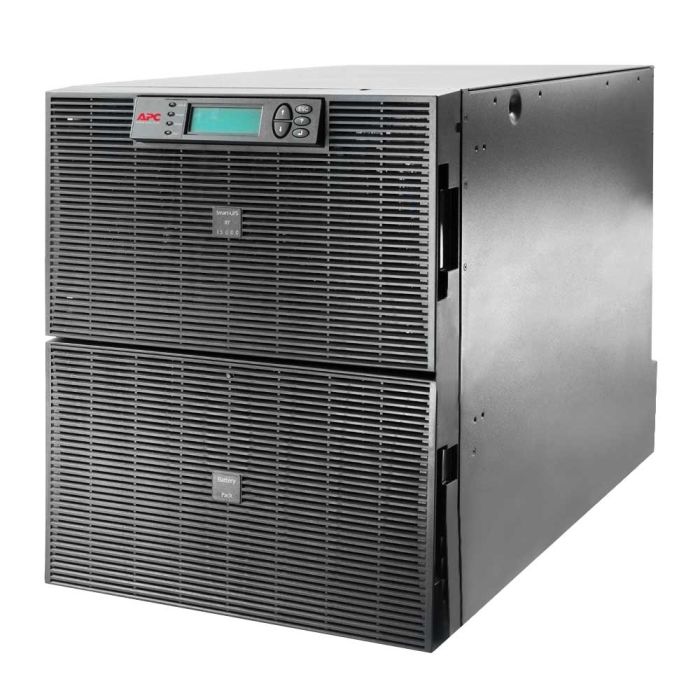

Model: APC Smart-UPS RT 15kVA 12kW, RM, 12U, 208V
Condition: New batteries, refurbished UPS
Part Number: SURT15KRMXLT
Maximum output: 12kW / 15kVA
Typical backup time at half load: 22.3 minutes (6000 Watts)
Typical backup time at full load: 8.3 minutes (12000 Watts)
Warranty: 1 year full replacement warranty
Please note, the SURT15KTMXLT UPS ships freight on a pallet, dock to dock. If you need special delivery arrangements, such as liftgate delivery, please get in touch with us prior to ordering so we can quote the service and make the needed arrangements.
APC Smart-UPS RT 15kVA 12kW SURT15KRMXLT Manual
SURT15KRMXLT - APC Smart-UPS RT Specifications:
Main:
Main Input Voltage |
208V |
||||
Other Input Voltage |
240V |
||||
Main Output Voltage |
208V |
||||
Other Output Voltage |
240V |
||||
Rated Power in W |
12000W |
||||
Rated Power in VA |
15000VA |
||||
Output Connection Type |
|
||||
Output Connector Type |
Hard Wire 3-wire (2PH + G) 1 |
||||
Number of Rack Unit |
12U |
||||
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
Included Battery Modules |
4 |
Battery Slots Empty |
0 |
Typical Recharge Time |
2 h |
RBC Quantity |
4 |
Additional I nformation |
Configurable for 208 or 240 nominal output voltage |
Battery Voltage |
+/-192 V (split battery referenced to neutral) |
End of Discharge Battery Voltage |
+/-154 V |
Battery Charge Power (Watts) |
1910 W rated |
Battery Power in VAH |
3840 VAh runtime |
Battery Life |
3 - 5 year(s) |
Replacement Battery |
APCRBC140 |
Battery Option |

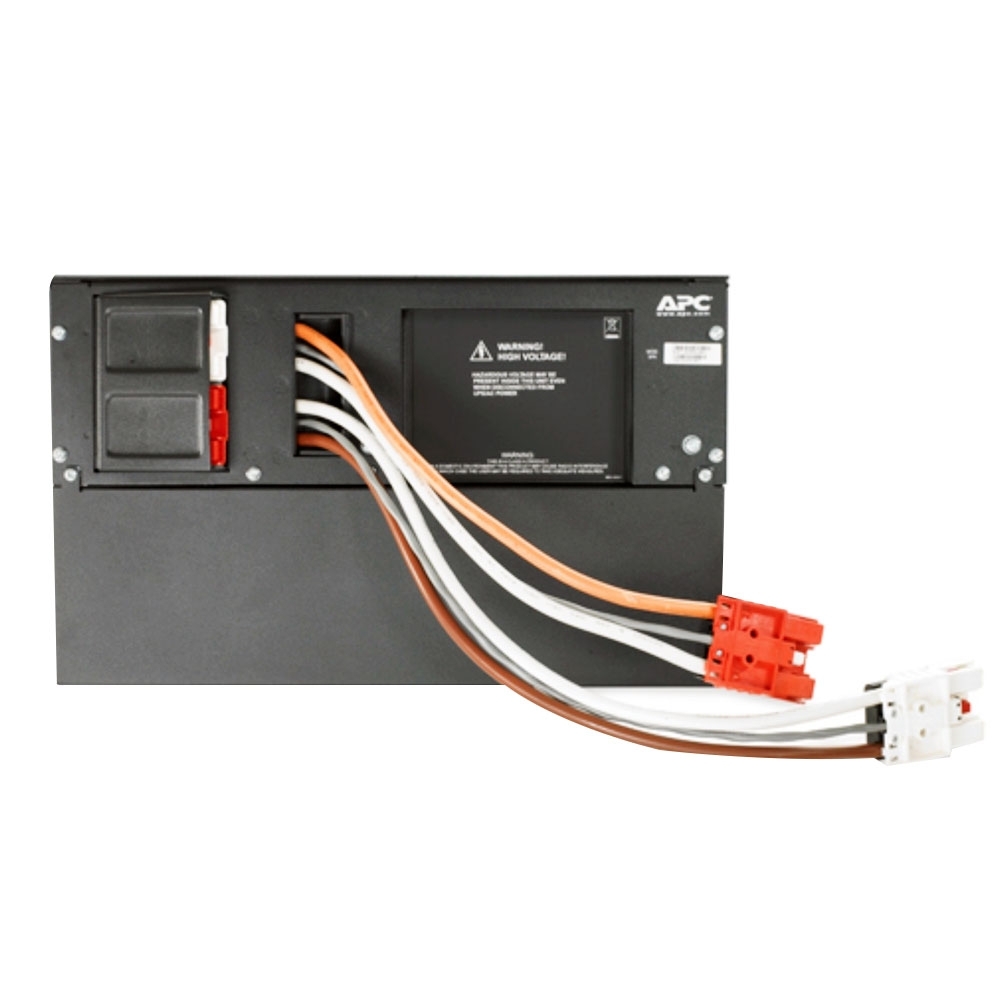

SURT192RMXLBP2 1 7680 VAh |
Extendable Run Time |
1 |
General:
Number of Power Module Free Slots |
0 |
Number of Power Module Filled Slots |
0 |
Redundant |
No |
Physical:
Color |
Black |
Height |
20.98 in (53.3 cm) |
Width |
17.01 in (43.2 cm) |
Depth |
30.43 in (77.3 cm) |
Net Weight |
546.15 lb(US) (247.73 kg) |
Mounting Location |
Front |
Mounting Preference |
Lower |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
0 |
USB Compatible |
No |
Input:
Input Frequency |
40 - 70 Hz auto-sensing |
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
Efficiency at Full Load |
160 - 280V |
Maximum Input Current per Phase |
85 A |
Switching Current Capacity |
100 A |
Input Total Harmonic Distortion |
Less than 5% for full load |
Input Power Factor at Full Load |
0.99 |
Output:
Max Configurable Power (Watts) |
12000W |
Harmonic Distortion |
Less than 5% |
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
Crest Factor |
3 : 1 |
Topology |
Double Conversion Online |
Waveform Type |
Sine Wave |
Overload Operation |
60 seconds @ 125% and 30 seconds @ 150% |
Bypass Type |
Built-in Static Bypass |
Efficiency at Full Load |
93 % in battery operation) |
Maximum Configurable Power in VA |
15000VA |
Conformance:
Product Certifications |
UL 1778 |
Environmental:
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
Relative Humidity |
0…95 % non-condensing |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Acoustic Level |
50 dBA
|
Heat Dissipation |
2610 Btu/h |
IP Degree of Protection |
IP20 |
Communications & Management:
Free Slots |
1 |
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring |
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
|
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 208V AC |
Output (VA) | 15000VA |
Output Voltage | 208V AC |
PDU Total Outlets | No |
