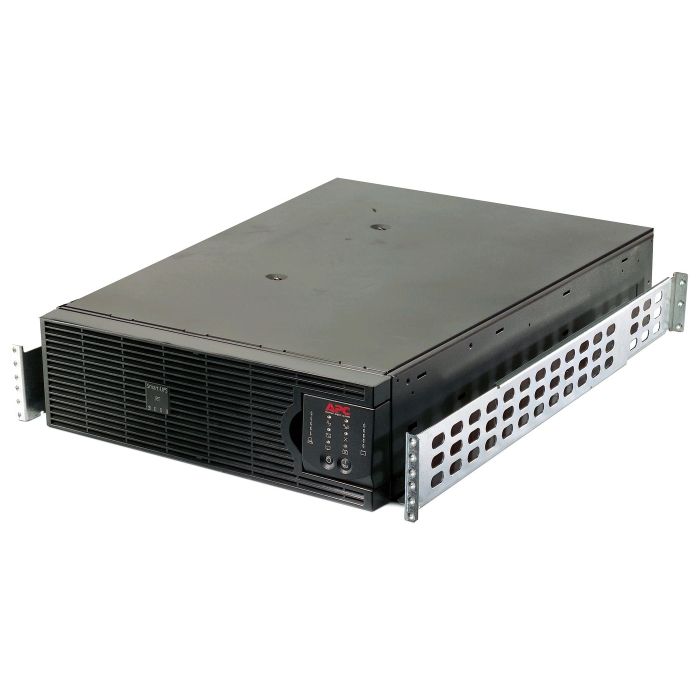

APC Smart-UPS RM 3000VA 2100W Double Conversion Online 240V SURTD3KXLIUXI - Refurbished
APC Smart-UPS 3000VA 2100W 220V/230V/240V Unit eXpandable International
Model: SURTD3KXLIUXI
Input: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Output: (8) IEC 320 C13, (2) IEC Jumpers, (2) IEC 320 C19
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $1,149.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 3000VA 2100W, RM 3U, 230V Unit eXpandable International
Condition: Refurbished UPS with New Batteries
Part Number: SURTD3KXLIUXI
Maximum Output: 2100W / 3000VA
Typical Backup Time at Half Load : 34 minutes (1050 Watts)
Typical Backup Time at Full Load : 14.1 minutes (2100 Watts)
Warranty: 1-Year Full Replacement Warranty
APC Smart-UPS RT 3000VA 2100W SURTD3KXLIUXI - User Manual
SURTD3KXLIUXI - APC Smart-UPS RT Specifications:
Main:
|
Main Input Voltage |
230V |
|||||
|
Other Input Voltage |
220V |
|||||
|
Main Output Voltage |
230V |
|||||
|
Other Output Voltage |
220V |
|||||
|
Rated Power in W |
2100W |
|||||
|
Rated Power in VA |
3000VA |
|||||
|
Input Connection Type |
|
|||||
|
Output Connection Type |
|
|||||
|
Number of Rack Unit |
3U |
|||||
|
Cable Length |
8 ft (2.44 m) |
|||||
|
Number of Cables |
1 |
|||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Number of Battery Filled Slots |
2 |
|
Battery Recharge Time |
2.5 h |
|
Number of Battery Replacement Quantity |
1 |
|
Additional Information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Battery Charger Power |
382 W rated |
|
Battery Power in VAH |
960 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192XLBP 1 2820 VAh |
|
Extended Runtime |
1 |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.0 inches (432mm, 43.2cm) |
|
Width |
5.1 inches (130mm, 13.0cm) |
|
Depth |
26.0 inches (660mm, 66.0cm) |
|
Net Weight |
120.0 lbs. (54.55kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Network Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Input Voltage Limits |
160 - 280 V |
Output:
|
Maximum Configurable power in W |
2100W |
|
Harmonic Distortion |
Less than 3 % |
|
Output Frequency |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
|
Crest factor |
3 : 1 |
|
UPS Type |
Double Conversion Online |
|
Wave Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum Configurable Power in VA |
3000VA |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
609 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rate |
555 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
