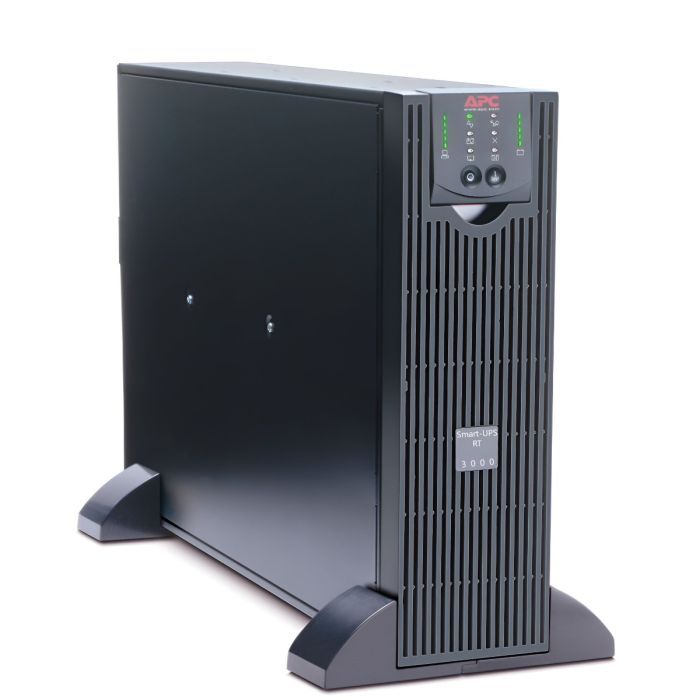

APC Smart-UPS SURTA3000XL 3000VA 2100W Double Conversion Online Tower 30A - Refurbished
APC SMART-UPS RT 3000VA 2100W 120V Tower
Model: SURTA3000XL
Input: NEMA L5-30P (120V - 30A)
Output: (2) 5-20R, (6) 5-15R
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $977.49
In stock
Manufacturer: APC
Model: APC Smart-UPS RT 3000VA 2100WÂ Tower, 30A, 120V
Condition: New batteries, refurbished UPS
Part Number: SURTA3000XL
Maximum output: 2100W / 3000VA
Typical backup time at half load: 34.0 minutes (3200 Watts)
Typical backup time at full load: 7.3 minutes (6400 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS RT 3000VA 2100W SURTA3000XL - User Manual
SURTA3000XL - APC Smart-UPS RT Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
2100W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
3U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Number of Battery Filled Slots |
2 |
|
Battery Recharge Time |
2.5 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Charger Power |
339 W rated |
|
Battery Power in VAH |
850 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192XLBP 1 2550 VAh |
|
Extendable Run Time |
1 |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 inches (432mm, 43.2cm) |
|
Width |
5.12 inches (130mm, 13.0cm) |
|
Depth |
25.98 inches (660mm, 66.0cm) |
|
Net Weight |
120.26 lbs. (54.55kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Input Voltage Limits |
90 - 150 V |
Output:
|
Maximum Configurable Power in W |
2100W |
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
|
Crest Factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum configurable power in VA |
3000VA |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95% non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
655 Btu/h
|
|
IP Degree of Protection |
IP20
|
Communications & Management:
|
Interface Port(s) |
DB-9 RS-232, Smart-Slot |
|
Free Slots |
0 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
