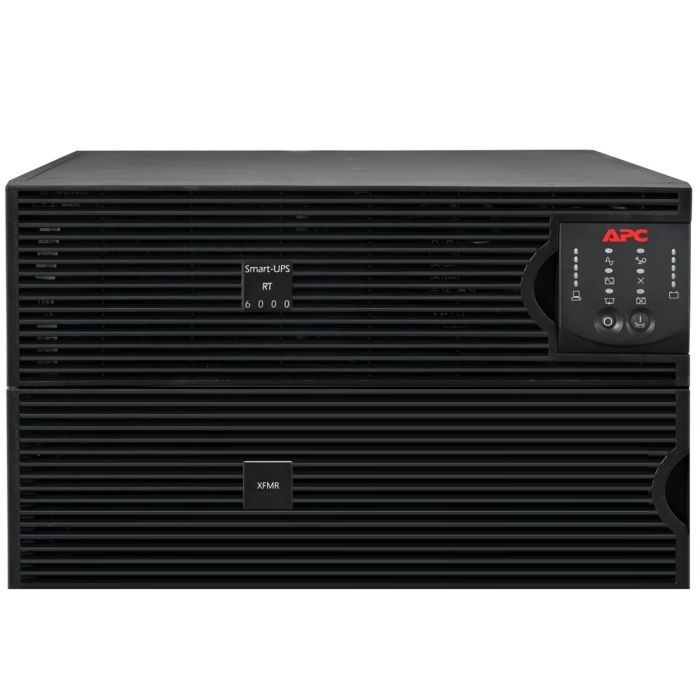

APC Smart-UPS RT 6kVA 4200W Double Conversion Online 240V SURT6000RMXLT3U-1TF3 -Refurbished
APC Smart-UPS RT 6kVA 4200W RM 6U 208V/240V + Isolation/Step-Down Transformer 208V-120V Â
Model: SURT6000RMXLT3U + SURT003 Â
Input: NEMA L6-30P (30A - 208V nominal, configurable for 208–240V)Â
Output: UPS: (2)L6-20R, (2)L6-30R; Transformer: (2)L6-20R, (1)L6-30R, (1)L14-30R, (8)5-20R Â
Double Conversion Online UPS – Sinewave Output Â
New batteries, Refurbished UPS & Transformer Â
1 Year Warranty Included
CAD $3,162.49
In stock
Manufacturer: APC
Model: APC Smart-UPS RT 6000VA 4200W RM 3U 208V/240V + Isolation/Step-Down Transformer RM 2U 208V-120V Â
Condition: New batteries, refurbished UPS & Transformer Â
Part Number: SURT6000RMXLT3U + SURT003 Â
Maximum output: 4200W / 6000VA
Typical backup time at half load: 15.80 minutes (2100 Watts)
Typical backup time at full load: 5.30 minutes (4200 Watts)
Warranty: 1 year full replacement warranty
Â
APC Smart-UPS RT 6kVA 4200W SURT6000RMXLT3U-1TF3 - User Manual
Â
SURT6000RMXLT3U-1TF3 - APC Smart-UPS RT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power |
4200W / 6000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type (UPS) |
|
||||
|
Output Connection Type (Transformer SURT003) |
(2) L6-20R, (1) L6-30R, (1) L14-30R, (8) 5-20R |
||||
|
Number of Rack Unit |
6U |
||||
|
Cable Length (UPS) |
10 ft (3.05 m) |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
2 |
|
Typical Recharge Time |
2.5 h |
|
RBC Quantity |
1 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery Charge Power (Watts) |
421 W rated |
|
Battery Power in VAH |
1056 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SURT192RMXLBP3U 1 2304 VAh |
|
Extendable Run Time |
1 |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
UPS: 5.12 in (13 cm), Transformer: 3.5 in (8.9 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
25.98 in (66 cm) |
|
Net Weight |
UPS: 120.26 lb (54.55 kg), Transformer: 50 lb (22.7 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
Input:
|
Input Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
|
Efficiency at full load |
160 - 280V |
Output:
|
Max Configurable Power (Watts) |
4200W / 6000VA |
|
Harmonic Distortion |
Less than 3% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 sync to mains |
|
Crest factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Efficiency at full load |
92 % full load |
|
Maximum Configurable Power in VA |
6000VA |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
1324 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
1 |
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
555 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
