Description
Details
Manufacturer: APC

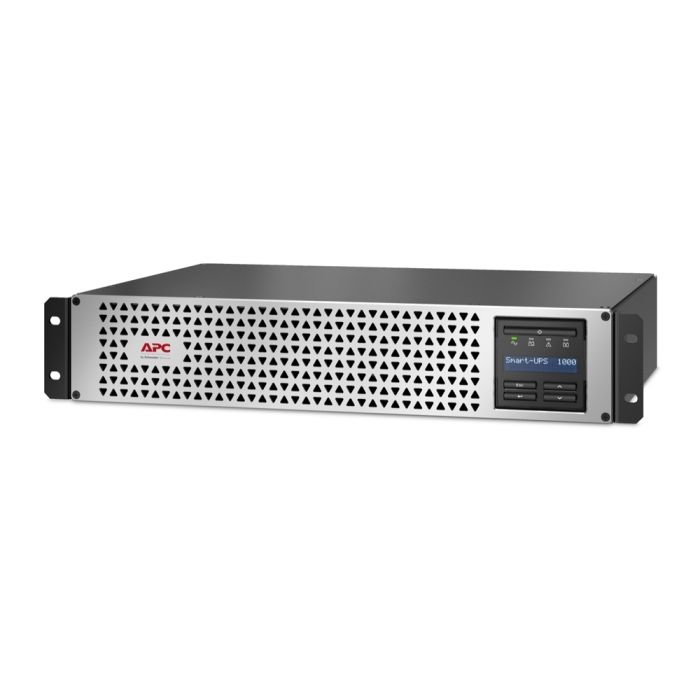

Model: APC Smart-UPS SmartConnect 1000VA 800W LCD RM 2U 120V
Condition: New batteries, refurbished UPS
Part Number: SMTL1000RM2UC
Maximum output: 800W / 1000VA
Typical backup time at half load: 18.5 minutes (400 Watts)
Typical backup time at full load: 8.1 minutes (800 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SmartConnect 1000VA 800W LCD SMTL1000RM2UC Manual
SMTL1000RM2UC - APC Smart-UPS Specifications:
Main:
Main Input Voltage |
120V |
||
Main Output Voltage |
120V |
||
Kw Rating |
800W |
||
Rated power in VA |
1000VA |
||
Input Connection Type |
|
||
Output Connection Type |
|
||
Number of Rack Unit |
2U |
||
Cable Length |
8 ft (2.44 m) |
||
Number of Cables |
1 |
||
Battery Type |
Li-Ion (Lithium Ion) |
General:
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Product Web Sub-family |
Lithium Ion |
Redundant |
No |
Physical:
Color |
Black |
Height |
3.39 in (8.6 cm) |
Width |
17.24 in (43.8 cm) |
Depth |
12.52 in (31.8 cm) |
Net weight |
36.00 lb(US) (16.33 kg) |
Mounting Location |
Front |
Mounting Preference |
Lower |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
1 |
USB Compatible |
Yes |
Input:
Efficiency at Full Load |
75 -154V adjustable |
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
Harmonic Distortion |
Less than 5% |
Maximum Configurable Power in VA |
1000VA |
Max Configurable Power (Watts) |
800W |
Transfer Time |
6ms typical: 10ms maximum |
Topology |
Line Interactive |
Waveform Type |
Sine wave |
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
Product Certifications |
NOM |
Environmental:
Acoustic Level |
41 dBA
|
Heat Dissipation |
70 Btu/h |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
Ambient Air Temperature for Storage |
-40 - 95°F (-40 - 35°C) |
Storage Altitude |
0 - 25000 ft (0.00 - 7620.00 m) |
Relative Humidity |
0 - 95% non-condensing |
Storage Relative Humidity |
0 - 95% non-condensing |
Batteries & Runtime:
Extendable Run Time |
0 |
Included Battery Modules |
0 |
Battery Slots Empty |
0 |
Typical Recharge Time |
3h |
Battery Design Life |
5 - 10 year(s) |
Battery Life |
5 - 10 year(s) |
Battery power in VAH |
239 VAh Runtime |
Battery Charge Power (Watts) |
79 W rated |
Communications & Management:
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Control Panel |
Multi-function LCD status and control console |
Free Slots |
1 |
Surge Protection and Filtering:
Surge Energy Rating |
680 J |
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 1000VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
