Description
Details
Manufacturer: APC

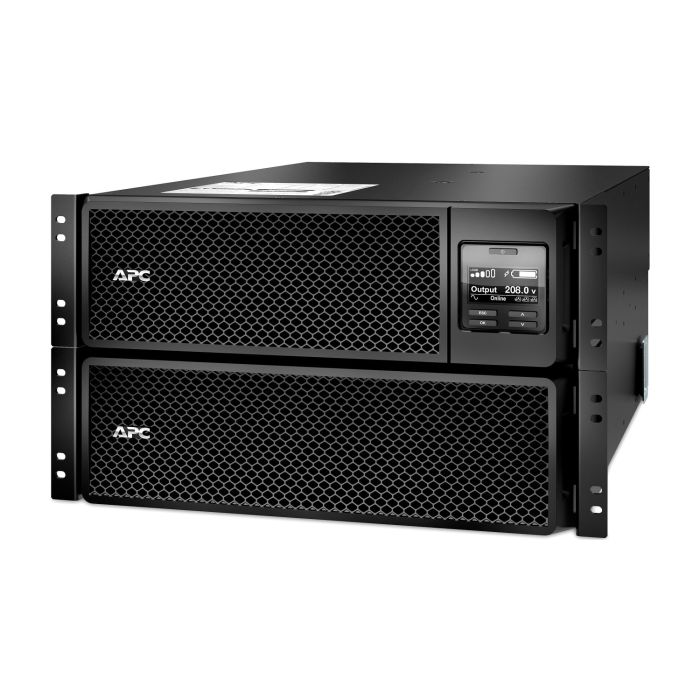

Model: APC Smart-UPS SRT 10kVA 10kW, RM, 6U, 208V/240, Double Conversion online UPS
Condition: New batteries, refurbished UPS
Part Number: SRT10KRMXLT
Maximum output: 10kW / 10kVA
Typical backup time at half load: 11.4 minutes (5000 Watts)
Typical backup time at full load: 3.7 minutes (10000 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT 10kVA 10kW SRT10KRMXLT Manual
SRT10KRMXLT - APC Smart-UPS SRT Specifications:
Main:
Main Input Voltage |
208V |
||||
Other Input Voltage |
240V |
||||
Main Output Voltage |
208V |
||||
Other Output Voltage |
240V |
||||
Rated Power in W |
10kW |
||||
Rated Power in VA |
10kVA |
||||
Input Connection Type |
|
||||
Output Connection Type |
|
||||
Number of Rack Unit |
6U |
||||
Cable Length |
6 ft (1.83 m) |
||||
Number of Cables |
1 |
||||
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
Included Battery Modules |
0 |
Typical Recharge Time |
1.5 h |
RBC Quantity |
2 |
Battery Voltage |
+/-192 V (split battery referenced to neutral) |
Battery Charge Power (Watts) |
1191 W rated |
Battery Power in VAH |
1799 VAh runtime |
Battery Life |
3 - 5 year(s) |
Replacement Battery |
APCRBC140 |
Battery Option |
SRT192RMBP2 1 3598 VAh |
Extendable Run Time |
1 |
General:
Product Web Sub-Family |
High density |
Redundant |
No |
Physical:
Color |
Black |
Height |
10.35 in (26.3 cm) |
Width |
17.01 in (43.2 cm) |
Depth |
28.15 in (71.5 cm) |
Net Weight |
245.99 lb(US) (111.58 kg) |
Mounting Location |
Front |
Mounting Preference |
No preference |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
0 |
USB Compatible |
Yes |
Input:
Efficiency at Full Load |
100 - 275 V adjustable (half load) |
Input Frequency |
40 - 70 Hz auto-sensing |
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
Output:
Max Configurable Power (Watts) |
10kW |
Harmonic Distortion |
Less than 2% |
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Crest factor |
3 : 1 |
Topology |
Double Conversion Online |
Waveform Type |
Sine wave |
Bypass Type |
Internal Bypass (Automatic and Manual) |
Maximum configurable power in VA |
10kVA |
Conformance:
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
Relative Humidity |
0 - 95 % non-condensing |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
Storage Relative Humidity |
0 - 95% non-condensing |
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Acoustic Level |
55 dBA
|
Heat Dissipation |
2490 Btu/h |
IP degree of protection |
IP20 |
Communications & Management:
Free Slots |
1 |
Alarm |
Audible and visible alarms : prioritized by severity |
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
Surge Energy Rating |
480 J
|
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 208V AC, 240V AC |
Output (VA) | 10000VA |
Output Voltage | 208V AC, 240V AC |
PDU Total Outlets | No |
