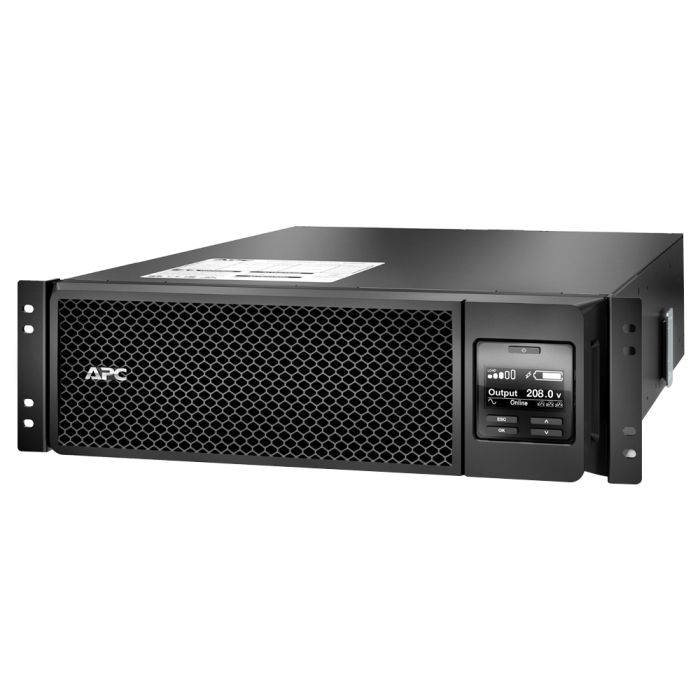

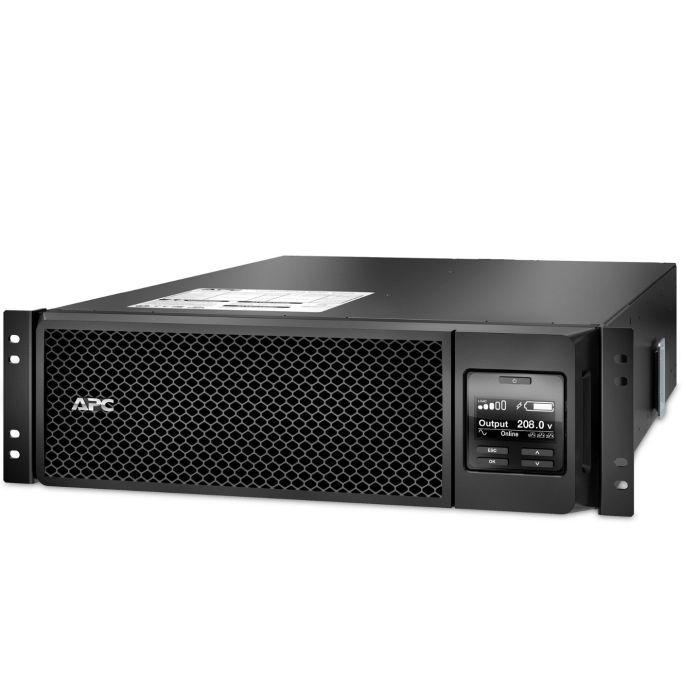

APC Smart-UPS SRT 5000VA 4800W 30A RM 3U 208V/240V SRT5KRMXLT - Refurbished
APC Smart-UPS SRT 5000VA 4800W RM 3U 208V
Model: SRT5KRMXLT
Input:Â NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $2,874.99
CAD $2,644.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SRT 5000VA 4800W, RM, 3U, 208V
Condition: New batteries, refurbished UPS
Part Number: SRT5KRMXLT
Maximum output: 4800W / 5000VA
Typical backup time at half load: 10.7 minutes (2400 Watts)
Typical backup time at full load: 3.5 minutes (4800 Watts)
Warranty: 1 year full replacement warranty
Description: The APC SRT5KRMXLT is a high-density double conversion online UPS designed to provide reliable 208V/240V power protection for servers, storage systems, networking equipment, and critical IT infrastructure. This 3U rackmount Smart-UPS delivers 5000VA / 4800W of pure sine wave output with automatic and manual internal bypass, advanced battery management, and expandable runtime support using external SRT192RMBP battery packs. Equipped with (2) NEMA L6-20R, (2) NEMA L6-30R, and hardwire output connections, it offers flexible deployment for enterprise and data center environments. Features include an LCD management interface, SmartSlot expansion, optional network management with environmental monitoring, intelligent diagnostics, and high-efficiency online power protection. Refurbished with new batteries installed and backed by a 1-year full replacement warranty.
Â
Â
APC Smart-UPS SRT 5000VA 4800W SRT5KRMXLT - User Manual
Â
SRT5KRMXLT - APC Smart-UP SRT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
4800W |
||||
|
Rated Power in VA |
5400VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
3U |
||||
|
Cable Length |
10 ft (3.05 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
1.5 h |
|
RBC Quantity |
1 |
|
Battery Voltage |
192V |
|
Battery Charge Power (Watts) |
556W rated |
|
Battery Power in VAH |
840VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Runtime Expansion Support |
Multiple external battery packs supported |
|
Battery Option |
SRT192RMBP 1 2520 VAh |
|
Extendable Run Time |
1 |
|
Battery Monitoring |
Intelligent battery diagnostics and monitoring |
|
Typical Runtime Half Load |
10.7 Minutes (2400W) |
|
Typical Runtime Full Load |
3.5 Minutes (4800W) |
Â
General:
|
Product Web Sub-Family |
High density |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
5.12 in (13 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
28.31 in (71.9 cm) |
|
Net Weight |
123.00 lb(US) (55.79 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
|
Mounting Position |
Horizontal |
Input:
|
Efficiency at Full Load |
100 - 275 V adjustable (half load) |
|
Input Frequency |
40 - 70 Hz auto-sensing |
|
Number of Power Cords |
1 |
|
Input Plug Type |
NEMA L6-30P |
|
Input Voltage |
208V / 240V |
|
Input Connection Type |
Single-Phase |
|
Input Power Configuration |
High-capacity enterprise UPS input |
|
Cable Length |
10 ft (3.05 m) |
|
Power Protection |
Enterprise-grade online protection |
Output:
|
Max Configurable Power (Watts) |
4800W |
|
Harmonic Distortion |
Less than 2% |
|
Maximum configurable power in VA |
5000VA |
|
Output Voltage Regulation |
208V / 240V |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Power Conditioning |
Continuous online power protection |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Efficiency |
Optimized high-efficiency online operation |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
1402 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
1 |
|
SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring - Optional |
|
Alarm Notifications |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
|
Control Panel |
Multifunction LCD status and control console, with real-time UPS status monitoring |
|
Interface Ports |
USB, SmartSlot |
|
Remote Management |
Supported with optional APC management card |
|
Environmental Monitoring |
Supported with optional APC accessories |
|
Management Features |
Remote UPS monitoring, configuration, and diagnostics |
|
Event Notifications |
Configurable alerts and notifications |
|
 |
 |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
