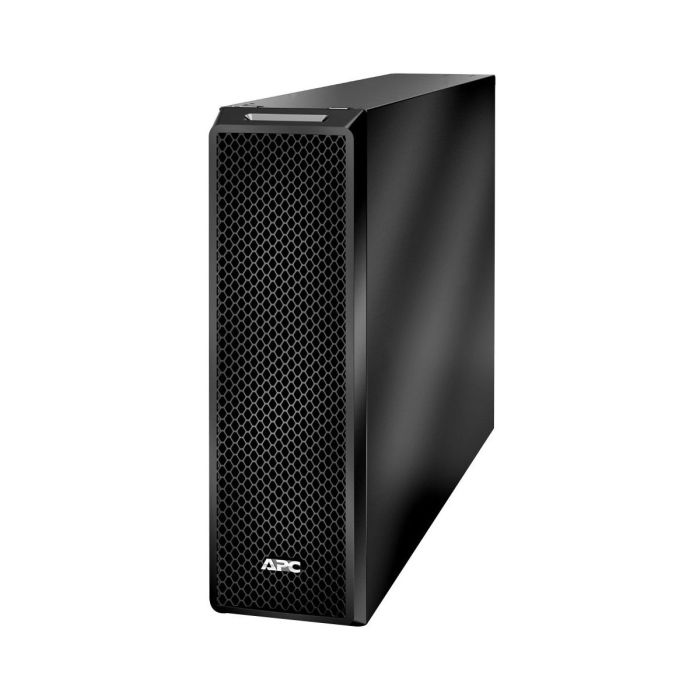

APC SRT5KTF Smart-UPS 5000VA Isolation Step-Down Transformer 208/240V to 120V - Refurbished

APC Smart-UPS SRT 5000VA Isolation Step-Down Transformer Tower 208/240V to 120V
Model: SRT5KTF
Input: NEMA L6-30P (208V / 240V - 30A)
Output: (8) NEMA 5-20R, (1) NEMA L6-30R, (1) NEMA L14-30R, (2) NEMA L6-20R
Refurbished step-down transformer
1 Year Warranty

Back Order

Manufacturer: APC
Model: APC Smart-UPS SRT 5kVA / 5000VA isolation step down transformer 208V/240V to 120V Rack or Tower -
Condition: Refurbished
Part Number: SRT5KTF
Warranty: 1 year full replacement warranty


APC Smart-UPS SRT Step-Down Transformer 5kVA SRT5KTF User's Manual


SRT5KTF - APC Smart-UPS SRT 5kVA Specifications:


Main:

Main Input Voltage

208V
240V

Main Output Voltage

120V
208V

Other Output Voltage

240V

Input Connection Type

NEMA L6-30P

Cable Length

3 ft (0.91 m)

Number of Cables

1


Physical:

Color

Black

Height

17.01 in (43.2 cm)

Width

5.12 in (13 cm)

Depth

25.98 in (66 cm)

Net Weight

125.00 lb(US) (56.7 kg)

Mounting Preference

No preference

Mounting Mode

Rack-mounted with kit


Input:

Input Frequency
50/60 Hz


Output:

Maximum Total Current Draw per Phase
5000 A

Number of Power Socket Outlets
12

Number of Power Socket Outlets

(8) NEMA 5-20R

(2) NEMA L6-20R

(1) NEMA L6-30R

(1) NEMA L14-30R


Environmental:

Ambient Air Temperature for Operation
32…104 °F (0…40 °C)

Relative Humidity
0…95 % non-condensing

Operating Altitude
0...10000 ft

Ambient Air Temperature for Storage
5…113 °F (-15…45 °C)

Storage Relative Humidity
0…95 % non-condensing

Storage Altitude
0…50000 ft (0.00…15240.00 m)



Basic operating instructions for the step down:

  • Ensure the transformer input cord is unplugged.
  • Remove the voltage selection switch cover.
  • Set the input voltage selection switch to match the utility voltage of 208 or 240 VAC.
  • If using 240 V utility power, program the UPS output for 240V (the voltage output of the UPS, has to match the voltage input of the step down, 240V, 240V)
  • Reinstall the voltage selection switch cover.
  • Connect the applicable load equipment to the PDU receptacles on the transformer.
  • Plug the transformer input cord into the appropriate PDU receptacle on the rear of the UPS.
  • Ensure the output circuit breakers are turned ON.
  • Ensure the input circuit breaker is turned ON.
