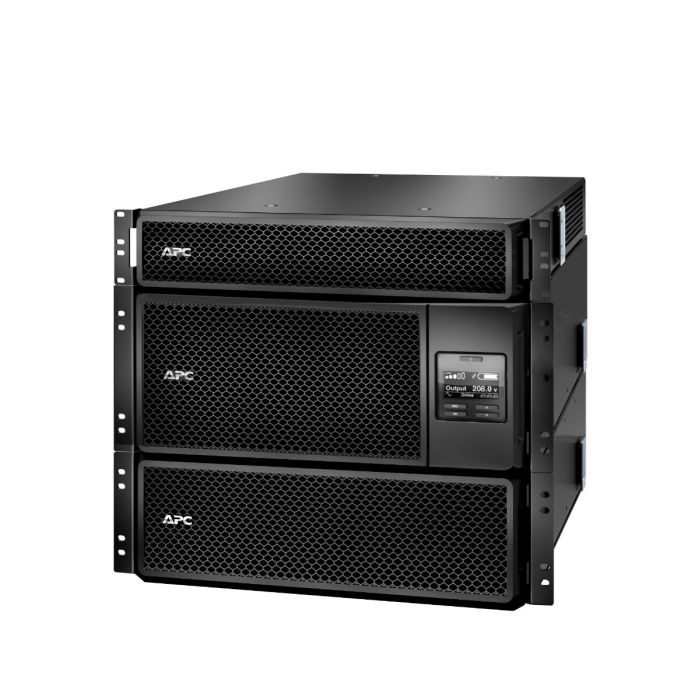

APC SRT6KRMXLT-5KTF + SRT192RMBP Smart-UPS Online 6kVA 6kW Double Conversion 208/240V – Refurb

APC Smart-UPS SRT 6000VA 6000W RM 6U 208V/240V + (1) External Battery Pack + Step-Down Transformer

Model: SRT6KRMXLT-5KTF + (1) SRT192RMBP

Input: Hard wire 3-wire (2P + E)

Output: (12) NEMA 5-20R, (2) L6-20R, (2) L6-30R

Double Conversion Online UPS - Sinewave Output

New Batteries in EBM, Refurbished UPS & External Battery Pack

1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + CAD $1,127.00

3 Year + CAD $1,972.25

In stock

Quantity

Manufacturer: APC

Combo Model: APC Smart-UPS SRT 6000VA & 5kVA/6kVA, 60A, 192V (w/ 1 EBM + Step-Down Transformer)

Condition: New Batteries, Refurbished UPS units

Part Numbers: SRT6KRMXLT-5KTF (6000VA UPS + Step-Down Transformer), SRT192RMBP (External Battery Pack), SRT5KRMTF (5kVA Step-Down Transformer)

· Maximum Output:

SRT6KRMXLT-5KTF: 6000W / 6000VA

SRT192RMBP: Compatible 192V battery pack for extended runtime

SRT5KRMTF: 5000VA Step-Down Transformer (208V → 120V)

· Typical Backup Time with 1 EBM (at Half Load):

SRT6KRMXLT: 8.3 minutes (3000 Watts)

SRT192RMBP: 13 minutes (3000 Watts with 1 EBM)

· Typical Backup Time with 1 EBM (at Full Load):

SRT6KRMXLT: 2.3 minutes (6000 Watts)

SRT192RMBP: 5 minutes (6000 Watts with 1 EBM)

Warranty: 1-year full replacement warranty for all units

Batteries: New Lead-Acid batteries for both UPS and EBM

Included:

(1) UPS SRT6KRMXLT 6000VA 6000W

(1) External Battery Module SRT192RMBP (192V EBM)

(1) Step-Down Transformer SRT5KRMTF for additional 120V distribution

APC Smart-UPS SRT 6000VA 6000W RM 6U 208V/240V - User Manual

SRT6KRMXLT – APC Smart-UPS SRT Specifications:

Main:

Main Input Voltage	208V
Other Input Voltage	240V
Main Output Voltage	208V
Other Output Voltage	240V
Rated Power in W	6kW
Rated Power in VA	6kVA
Output Connection Type	(2) NEMA L6-20R
	(3) NEMA L6-30R
Output Connector Type	Hard Wire 3-wire (2PH + G)
Number of Rack Unit	4U
Battery Type	Lead-Acid Battery

Batteries & Runtime:

Included Battery Modules	0
Typical Recharge Time	1.5 h
RBC Quantity	2
Battery Voltage	+/-192 V
Battery Charge Power (Watts)	1191 W rated
Battery Power in VAH	1799 VAh runtime
Battery Life	3 – 5 years
Replacement Battery	APCRBC140
Battery Option	SRT192RMBP
Extendable Run Time	1

General:

Product Web Sub-Family	High density
Number of Power Module Free Slots	0
Number of Power Module Filled Slots	0
Redundant	No

Physical:

Color	Black
Height	6.85 in (17.4 cm)
Width	17.01 in (43.2 cm)
Depth	28.31 in (71.9 cm)
Net Weight	134.99 lb (61.23 kg)
Mounting Location	Front
Mounting Preference	Lower
Mounting Mode	Rack-mounted
Two Post Mountable	0
USB Compatible	Yes
Mounting Position	Horizontal

Input:

Efficiency at Full Load	100–275 V adjustable (half load)
Input Frequency	40–70 Hz auto-sensing
Number of Input Connectors	1 Hard Wire 3-wire (2PH + G)

Output:

Max Configurable Power (Watts)	6kW
Harmonic Distortion	Less than 2%
Output Frequency	50/60 Hz ± 3 Hz sync to mains
Crest Factor	3:1
Topology	Double Conversion Online
Waveform Type	Sine wave
Bypass Type	Internal Bypass (Automatic and Manual)
Maximum Configurable Power in VA	6kVA

Conformance:

Product Certifications

ENERGY STAR V2.0, FCC Part 15 Class A, NOM, UL 1778

Environmental:

Operating Temperature	32–104 °F (0–40 °C)
Relative Humidity	0–95% non-condensing
Operating Altitude	0–10000 ft
Storage Temperature	5–113 °F (-15–45 °C)
Storage Relative Humidity	0–95% non-condensing
Storage Altitude	0–50000 ft
Acoustic Level	55 dBA
Heat Dissipation	1402 BTU/h
IP Degree of Protection	IP20

SRT192RMBP – External Battery Pack Specifications:

Main:

Number of Rack Unit	3U
Battery Type	Lead-Acid Battery

Batteries & Runtime:

Battery Slots Empty	0
Included Battery Modules	0
Device Mounting	Stand alone battery stack
Battery Voltage	192V
RBC Quantity	2
Replacement Battery	APCRBC140

Physical:

Color	Black
Height	5.12 in (13 cm)
Width	17.01 in (43.2 cm)
Depth	26.88 in (68.27 cm)
Net Weight	200.62 lb (91 kg)
Mounting Mode	Rack-mounted

Conformance:

Standards

OSHPD

Environmental:

Ambient Air Temperature for Operation	32–104 °F
Operating Altitude	0–10000 ft
Relative Humidity	0–95% non-condensing
Ambient Air Temperature for Storage	5–113 °F
Storage Altitude	0–50000 ft
Storage Relative Humidity	0–95% non-condensing

SRT5KRMTF – Step-Down Transformer Specifications:

Main:

Main Input Voltage	208V
Product or Component Type	Uninterruptible Power Supply (UPS)
Main Output Voltage	120V
Input Connection Type	NEMA L6-30P
Number of Rack Unit	2U
Number of Cables	1

Physical:

Color	Black
Height	3.50 in (8.9 cm)
Width	17.01 in (43.2 cm)
Depth	25.08 in (63.7 cm)
Net Weight	95 lb (43.09 kg)
Mounting Location	Front
Mounting Preference	No preference
Mounting Mode	Rack-mounted
Mounting Position	Horizontal

Input:

Max Line Current	24A
Input Current Limits	30A
Load Capacity	5000VA

Output:

Maximum Total Current Draw per Phase	24A
Number of Power Socket Outlets	12
Outlet Type	(12) NEMA 5-20R

Conformance:

Product Certifications	CSA
Standards	UL 1778

Environmental:

Ambient Air Temperature for Operation	32–104 °F
Relative Humidity	0–95% non-condensing
Operating Altitude	0–10000 ft
Ambient Air Temperature for Storage	5–113 °F
Storage Relative Humidity	0–95% non-condensing
Storage Altitude	0–50000 ft
