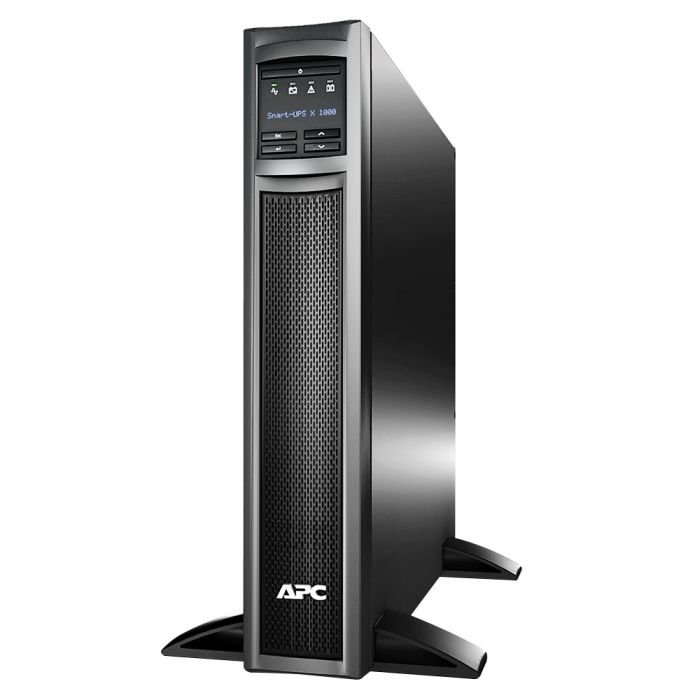

APC Smart-UPS X 1000VA 800W LCD Tower 120V Output:(8)5-15R, SMX1000 - Refurbished
APC Smart-UPS X 1000VA 800W LCD TowerÂ
Model: SMX1000 (Configured as a tower with supporting feet included)
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $459.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X 1000VA 800W, LCD, Tower, 120V
Condition: New batteries, refurbished UPS
Part Number: SMX1000
Maximum output: 800W / 1000VA
Typical backup time at half load: 24.2 minutes (400 Watts)
Typical backup time at full load: 8.1 minutes (800 Watts)
Warranty: 1 year full replacement warranty)
APC Smart-UPS X 1000VA 800W RM SMX1000 Manual
SMX1000 - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
120 V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
800W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical recharge time |
3 h |
|
Overcurrent Protection |
60 A |
|
Battery Life |
3-5 years |
|
Replacement Battery |
APCRBC116 |
|
Battery Power in VAH |
299 VAh runtime |
|
Battery Charge Power (Watts) |
99 W rated |
|
Battery Option |

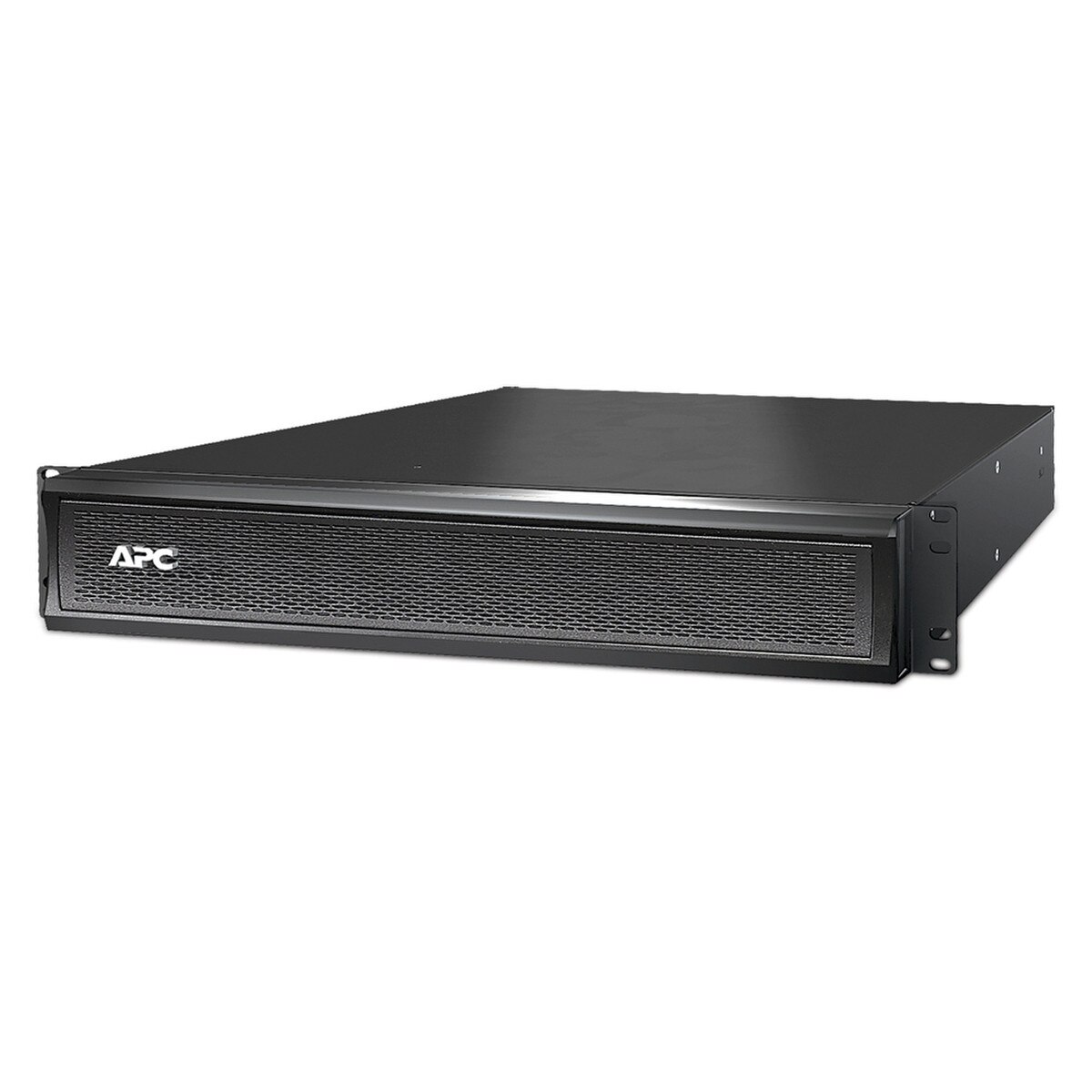

SMX48RMBP2U 1 900 VAh |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Extended run |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
17.01 inches (432mm, 43.2cm) |
|
Width |
3.5 inches (89mm, 8.9cm) |
|
Depth |
19.29 inches (490mm, 49.0cm) |
|
Net Weight |
50.4 lbs. (22.86kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted with kit |
|
Two Post Mountable |
1 |
|
USB Compatible |
Yes |
Input:
|
Maximum Input Current per Phase |
12 A |
|
Switching Current Capacity |
15 A |
|
Efficiency at Full Load |
82-143V |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1000VA |
|
Max Configurable Power (Watts) |
800W |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
cUL Listed |
Environmental:
|
Acoustic Level |
40 dBA |
|
Heat Dissipation |
82 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Emergency Power Off (EPO) |
Yes
|
|
Free Slots |
1
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
600 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
|
