Description
Details
Manufacturer: APC

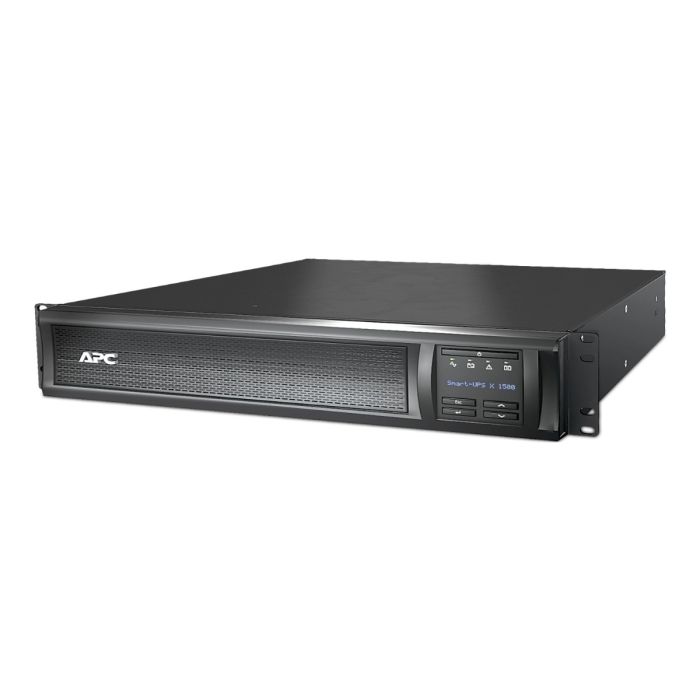

Model: APC Smart-UPS X 1500V 1350W LCD RM 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMX1500RM2UCNC
Maximum output: 1350W / 1500VA
Typical backup time at half load: 14.29 minutes (675 Watts)
Typical backup time at full load: 5.10 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS X 1500VA 1350W LCD RM SMX1500RM2UCNC Manual
SMX1500RM2UCNC - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
1350W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Rack Unit |
2U |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Battery Voltage |
48V |
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Overcurrent Protection |
60 A |
|
Battery power in VAH |
288 VAh runtime |
|
Battery Charge Power (Watts) |
103W |
|
Battery Option |
SMX48RMBP2U 1 888 VAh |
|
Replacement Battery |
APCRBC115 |
General:
|
Product Web Sub-family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.50 in (8.9 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
19.29 in (49 cm) |
|
Product Weight |
54.72 lb(US) (24.82 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two post mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Maximum Input Current per Phase |
12A |
|
Maximum Short Circuit Withstand (Icw) |
1000kA |
|
Switching Current Capacity |
20A |
|
Efficiency at full load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1350W |
|
Topology |
Line Interactive |
|
Full load runtime |
00:05:00 |
|
Full load runtime |
00:05:00 |
|
Half load runtime |
00:15:00 |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CUL Listed |
Environmental:
|
Acoustic Level |
40 dBA
|
|
Online Thermal Dissipation |
133 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes |
|
Pre-Installed SmartSlot™ Cards |
Network management card |
|
Communication Port Support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
600 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
|
Additional Info
Additional Info
| Manufacturer | APC |
|---|---|
| Form Factor | Rackmount |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | 120V AC |
| Output (VA) | 1500VA |
| Output Voltage | 120V AC |
| PDU Total Outlets | No |
