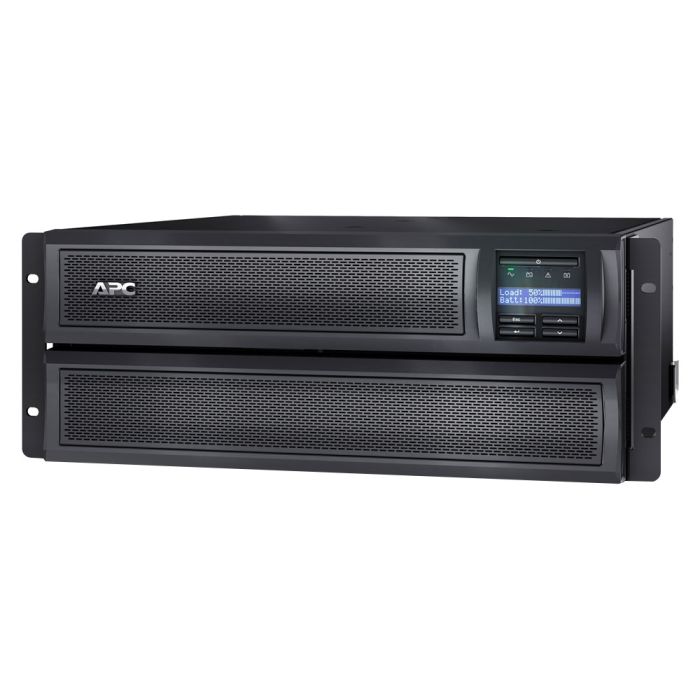

APC Smart UPS X 3000VA 2700W LCD RM 4U 200-240V SMX3000HV - Refurbished
APC Smart UPS X 3000VA 2700W LCD RM 4U
Model: SMX3000HV
Input: IEC-320 C20
Output: (2) IEC 320 C19 (Battery Backup), (2) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $1,379.99
Back Order
Manufacturer: APC
Model: APC Smart UPS X 3000VA 2700W, RM, 4U, 200-240V
Condition: New batteries, refurbished UPS
Part Number: SMX3000HV
Maximum output: 2700W / 3000VA
Typical backup time at half load: 18.3 minutes (1350 Watts)
Typical backup time at full load: 6.15 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart UPS X 3000VA 2700W SMX3000HV Manual
SMX3000HV - APC Smart UPS X Specifications:
Main:
|
Main Input Voltage |
208V |
|||||
|
Other Input Voltage |
220V |
|||||
|
Main Output Voltage |
230 V |
|||||
|
Other Output Voltage |
208V |
|||||
|
Rated Power in W |
2700W |
|||||
|
Rated Power in VA |
3000VA |
|||||
|
Input Connection Type |
|
|||||
|
Output Connection Type |
|
|||||
|
Number of Rack Unit |
4U |
|||||
|
Cable Length |
1.83 m |
|||||
|
Number of Cables |
1 |
|||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extended runtime |
1 |
|
Number of Battery Filled Slots |
0 |
|
Number of battery free slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC143 |
|
Battery Charge Power (Watts) |
144 W rated |
|
Battery Charger Power |
245W rated |
|
Battery Power in VAH |
738 VAh runtime |
|
Battery Option |
SMX120BP 1 2214 VAh |
General:
|
Number of Power Module |
2400 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Extended run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.0 inches (432mm, 43.2cm) |
|
Width |
7.0 inches (178mm, 17.8cm) |
|
Depth |
19.0 inches (483mm, 48.3cm) |
|
Net Weight |
85.0 lbs. (38.64kg) |
|
Shipping Weight |
105.0 lbs. (47.73kg) |
|
Shipping Height |
10.24 inches (260mm, 26.0cm) |
|
Shipping Width |
23.06 inches (586mm, 58.6cm) |
|
Shipping Depth |
24.94 inches (633mm, 63.3cm) |
Input:
|
Input Voltage Limits |
140-280 V |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest factor |
3 : 1 |
|
Harmonic Distortion |
Less than 5 % |
|
Maximum Configurable Power in VA |
3000VA |
|
Maximum Configurable Power in W |
2700W |
|
Transfer Time |
6 ms typical : 10 ms maximum |
|
UPS Type |
Line Interactive |
|
Wave Type |
Sine wave |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CE |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
184 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
0 - 40 °C |
|
Ambient Air Temperature for Storage |
-15 - 45°C |
|
Relative Humidity |
0 - 95 % non-condensing |
|
Storage Relative Humidity |
0 - 95% non-condensing |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Communications & Management:
|
Control Panel |
Multifunction LCD status and control console |
|
Emergency Power Off |
Yes |
|
Free Slots |
1 |
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
645 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
