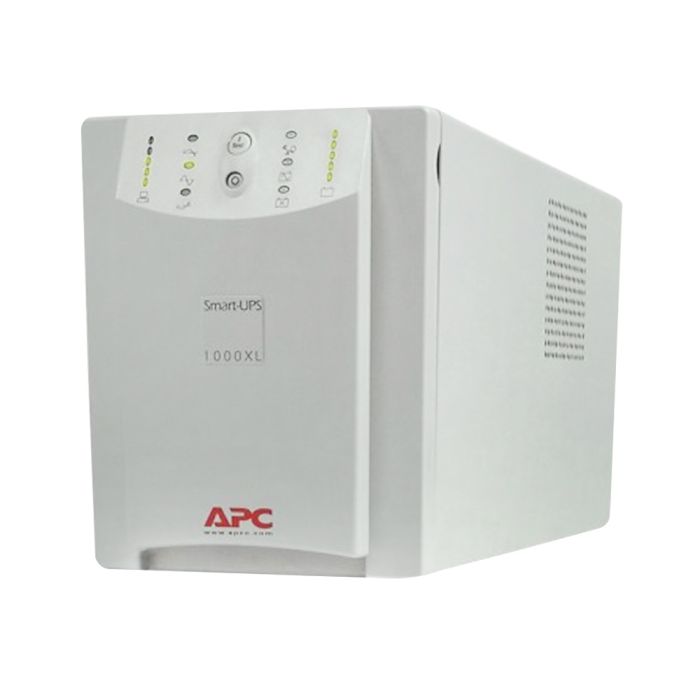

APC Smart-UPS XL 1000VA 670W 120V SU1000XL - Refurbished
APC Smart-UPS XL 1000VA 670W
Model: SU1000XL
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $344.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS XL 1000VA 670W Tower 120V
Condition: New batteries, refurbished UPS
Part Number: SU1000XL
Maximum output: 670W / 1000VA
Typical backup time at half load: 18.0 minutes (335 Watts)
Typical backup time at full load: 6.0 minutes (670 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 1000VA 670W 120V SU1000XL Manual
SU1000XL - APC Smart-UPS XL 1000VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
670W |
||
|
Rated Power in VA |
1000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
0U |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
5.1 h |
|
RBC Quantity |
1 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
RBC7 |
|
Battery Charge Power (Watts) |
80 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
8.50 in (21.6 cm) |
|
Width |
6.69 in (17 cm) |
|
Depth |
17.28 in (43.9 cm) |
|
Net Weight |
60.12 lb(US) (27.27 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
86...154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
1000VA |
|
Max Configurable Power (Watts) |
670W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA
|
Environmental:
|
Acoustic Level |
42 dBA
|
|
Heat Dissipation |
120 Btu/h |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0…95% |
|
Storage Relative Humidity |
0…95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
|
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
|
Surge Energy Rating |
320 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
