39% Off

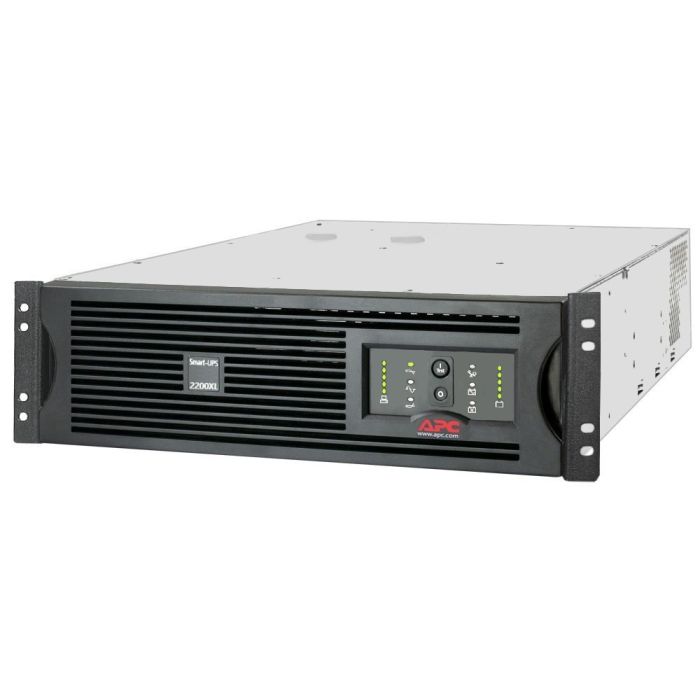

APC Smart-UPS XL 2200VA RM 120V SUA2200RMXL3U - Refurbished

APC Smart-UPS XL 2200VA RM 3U
Model: SUA2200RMXL3U

1980 Watts / 2200 VA
Output: (9) NEMA 5-15R, (2) NEMA 5-20R
Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: CAD $824.99

Now only: CAD $499.99

* Required Fields

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada



Manufacturer: APC
Model: Refurbished APC Smart-UPS XL 2200VA RM 120V with New Batteries
Condition: New batteries, refurbished UPS
Part Number: SUA2200RMXL3U
Maximum output: 1980 Watts / 2200 VA
Typical backup time at half load: 24 minutes (990 Watts)
Typical backup time at full load: 9 minutes (1980 Watts)
Warranty: 1 year full replacement warranty

APC Smart-UPS XL 2200VA RM SUA2200RMXL3U Manual


- APC Smart-UPS XL 2200VA RM Specifications:


Output Power Capacity

1980 Watts / 1850 VA

Max Configurable Power

1980 Watts / 2200 VA

Nominal output voltage


Output Voltage Distortion

less than 5% at full load

Output Frequency (sync to mains)

47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal

Crest Factor

up to 5 : 1

Waveform type


Output Connections

(9) NEMA 5-15R

(2) NEMA 5-20R



Nominal input voltage 120V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type NEMA L5-20P
Cord Length 8 feet ( 2.44 meters )
Input voltage range for main operations 82 - 147 V
Input voltage adjustable range for mains operation 75 - 154 V


Batteries and Runtime:

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Replacement battery cartridge


RBC™ Quantity


External Battery Pack


Typical backup time
at half load

24 minutes (990 Watts)

Typical backup time
at full load

9 minutes (1980 Watts)

Communications and Management:

Interface port DB-9 RS-232 , SmartSlot
Available Smart Slot Interface Quantity 1
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional


Surge energy rating 880 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449)


Maximum Height

5.26 inches (133 mm)

Maximum Width

19.00 inches (483 mm)

Maximum depth

26.00 inches (660 mm)

Rack Height

3 U

Net Weight

131.00 lbs. (59.55 kg)

Shipping Weight

153.00 lbs. (69.55 kg)

Additional Info

Additional Info

Manufacturer No
Form Factor N/A
Waveform in Battery Mode N/A
Input Voltage N/A
Output (VA) No
Output Voltage N/A
