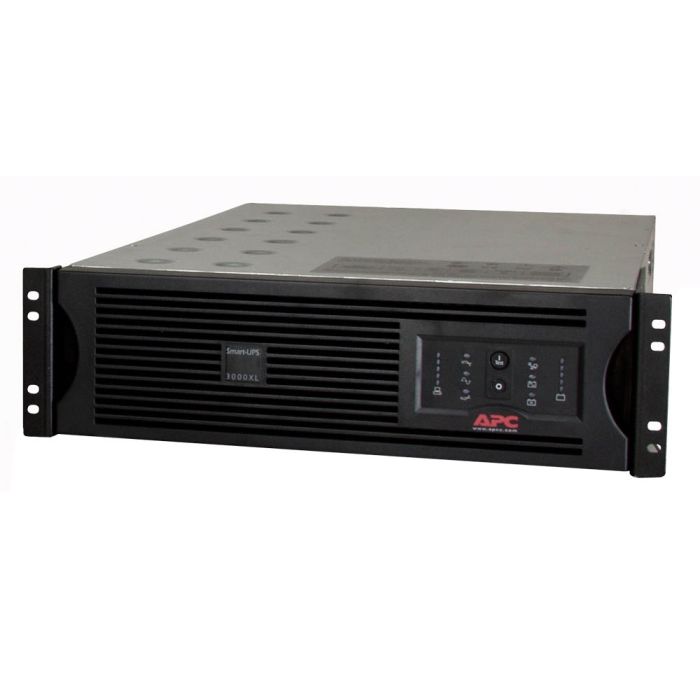

APC Smart-UPS XL 3000VA 2400W RM 3U 230V SU3000RMXLI3U - Refurbished
APC Smart-UPS XL 3000VA 2400W RM 3U
Model: SU3000RMXLI3U
Input: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Output: (3) IEC Jumpers (Battery Backup), (8) IEC 320 C13 (Battery Backup), (1) IEC 320 C19 (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $919.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2400W, RM 3U, 230V
Condition: New batteries, refurbished UPS
Part Number: SU3000RMXLI3U
Maximum output: 2400W / 3000VA
Warranty: 1 year full replacement warranty)
APC Smart-UPS XL 3000VA 2400W RM 3U SU3000RMXLI3U Manual
SU3000RMXLI3U - APC Smart-UPS XL Specifications:
Main:
|
Main Input Voltage |
230V |
|||||
|
Main Output Voltage |
230V |
|||||
|
Rated Power in W |
2400W |
|||||
|
Rated Power in VA |
3000VA |
|||||
|
Input Connection Type |
|
|||||
|
Output Connection Type |
|
|||||
|
Number of Rack Unit |
3U |
|||||
|
Cable Length |
6 ft (1.83 m) |
|||||
|
Number of Cables |
1 |
|||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Additional Information |
Only the SU48R3XLBP battery pack is applicable. Configurable for 220 : 230 or 240 nominal output voltage |
|
Extendable Run Time |
1 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC27 |
|
Battery Power in VAH |
864 VAh runtime |
|
Battery Charger Power |
287 W rated |
General:
|
Number of Power Module |
2400 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
133mm, 13.3cm |
|
Width |
483mm, 48.3cm |
|
Depth |
660mm, 66.0cm |
|
Net Weight |
56.36kg |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Voltage Limits |
168-302 V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2400W |
|
Waveform Type |
Sine wave |
|
Topology |
Line Interactive |
|
Output Frequency (sync to mains) |
47-53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
C-Tick |
Environmental:
|
Acoustic Level |
53 dBA |
|
Heat Dissipation |
375 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
|
|
Emergency Power Off (EPO) |
Optional
|
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
|
Surge Energy Rate |
480 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
