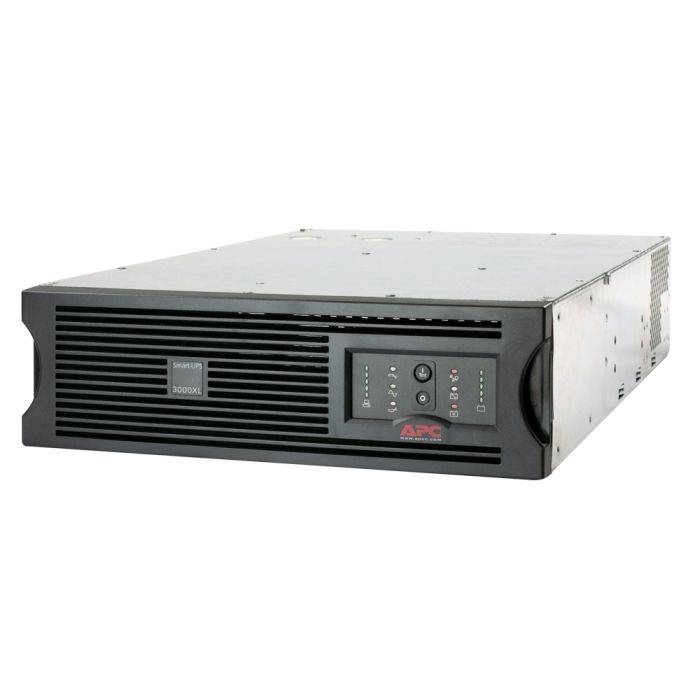

APC Smart-UPS XL 3000VA 2700W RM 3U 230V SUA3000RMXLI3U - Refurbished
APC Smart-UPS XL 3000VA 2700W RM 3U SUA3000RMXLI3U
Model: SUA3000RMXLI3U
Input: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Output: (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup), (1) IEC 320 C19 (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $804.99
Out of stock
Manufacturer: APC
Model: APC SMART-UPS XL 3000VA 2700W RM 3U 230V
Condition: New batteries, refurbished UPS
Part Number: SUA3000RMXLI3U
Maximum Output: 2700W / 3000VA
Typical backup time at half load: 16 minutes (1450 Watts)
Typical backup time at full load: 6 minutes (2700 Watts)
Warranty: 1 Year Full Replacement Warranty
APC Smart-UPS XL 3000VA 2700W SUA3000RMXLI3U Manual
SUA3000RMXLI3U - APC Smart-UPS XL 3000VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Kw Rating |
2700W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
3U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
APCRBC105 |
|
Battery Charge Power (Watts) |
287 W rated |
General:
|
Number of Power Module |
2400 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-family |
Extended run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
5.24 in (13.3 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
25.98 in (66 cm) |
|
Net Weight |
131.29 lb(US) (59.55 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
75...154V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2700W |
|
Maximum Output Current |
15 A |
|
Transfer Time |
2-4 ms |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
53 dBA |
|
Heat Dissipation |
375 Btu/h |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Operation |
32…104°F (0…40°C) |
|
Ambient Air Temperature for Storage |
5…113°F (-15…45°C) |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Relative Humidity |
0…95% |
|
Storage Relative Humidity |
0…95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
|
Surge Energy Rating |
880 J |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
