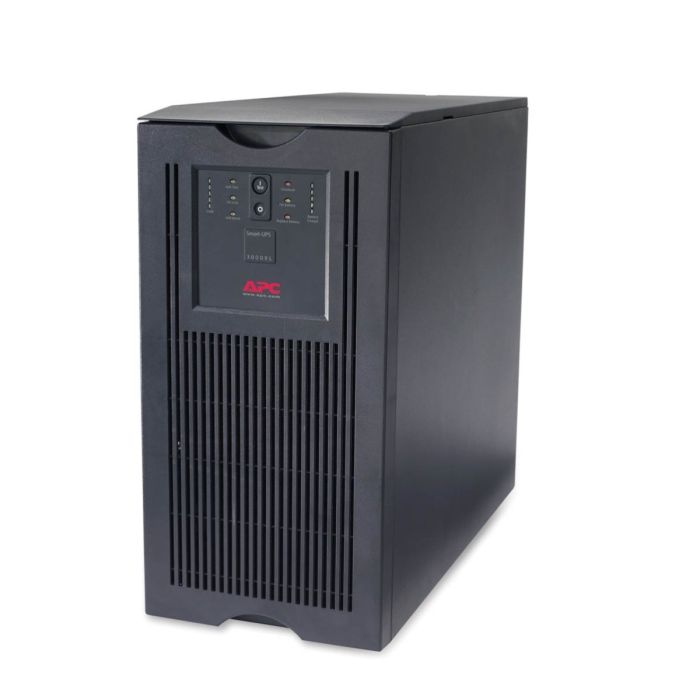

APC Smart-UPS XL 3000VA 2700W Tower 208V 30A SUA3000XLT - Refurbished
APC Smart-UPS XL 3000VA 2700W Tower 208V
Model: SUA3000XLT
Input: NEMA L6-20P (208V - 30A)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $977.49
Back Order
Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2700W Tower, 208V
Condition: New batteries, refurbished UPS
Part Number: SUA3000XLT
Maximum output:Â 2700W / 3000VA
Typical backup time at half load: 17.0 minutes (1350 Watts)
Typical backup time at full load: 5.0 minutes (2700W Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 3000VA 2700W Tower SUA3000XLT Manual
SUA3000XLT - APC Smart-UPS XL Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Main Output Voltage |
208V |
||||
|
Rated Power in W |
2700W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-family |
Extended Run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.48 in (44.4 cm) |
|
Width |
8.70 in (22.1 cm) |
|
Depth |
19.49 in (49.5 cm) |
|
Net Weight |
137.30 lb(US) (62.28 kg) |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Tower |
|
USB Compatible |
No |
Input:
|
Efficiency at full load |
151 - 268 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2700W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Efficiency at full load |
96 % full load) |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
53 dBA
|
|
Heat Dissipation |
275 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC55 |
|
Battery Power in VAH |
816 VAh runtime |
|
Battery Charge Power (Watts) |
271 W rated |
|
Battery Option |
SUA48XLBP 1 2448 VAh |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
