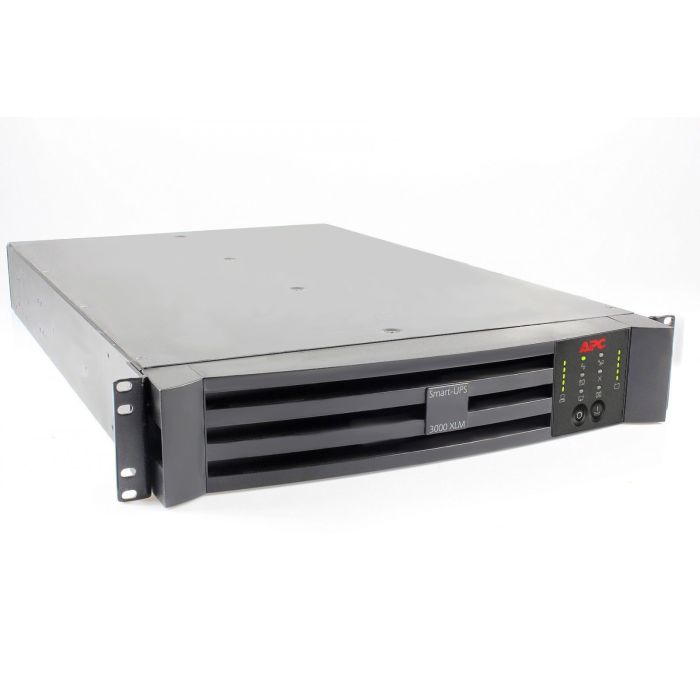

APC Smart-UPS XL 3000VA 2850W Modular RM 2U 120V SUM3000RMXL2U - Refurbished
APC Smart-UPS XL 3000VA 2850W Modular RM 2U 120V
Model: SUM3000RMXL2U
Input: NEMA L5-30P (120V - 30A)
Output: (6) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $1,034.99
In stock
Manufacturer: APC
Model: APC Smart-UPS XL 3000VA 2850W RM 2U 120V
Condition: New batteries, refurbished UPS
Part Number: SUM3000RMXL2U
Maximum output: 2850WÂ /Â 3000VA
Typical backup time at half load: 11.9 minutes (1425 Watts)
Typical backup time at full load: 3.5 minutes (2850 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 3000VA 2850W RM 2U SUM3000RMXL2U Manual
SUM3000RMXL2U - APC Smart-UPS XL XL 3000VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Kw Rating |
2850W |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
10 ft (3.05 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
VRLA |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 year(s) |
|
Replacement Battery |
RBC43 |
|
Battery Power in VAH |
600 VAh runtime |
|
Battery Charge Power (Watts) |
199 W rated |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.39 in (8.6 cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
26.69 in (67.8 cm) |
|
Net Weight |
103.0 lbs. (46.82kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
75-154V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2850W |
|
Maximum Output Current |
24A |
|
Topology |
Line Interactive |
|
Efficiency at full load |
95 % full load |
Conformance:
|
Product Certifications |
BSMI
CSA NOM VCCI |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
300 Btu/h |
|
Operating Altitude |
0-10000 ft |
|
Ambient Air Temperature for Operation |
32-104 °F (0-40°C) |
|
Ambient Air Temperature for Storage |
23-131°F (-5-55°C) |
|
Storage Altitude |
0-30000 ft (0.00-9144.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
|
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
0 |
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
|
Surge Energy Rating |
540 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
