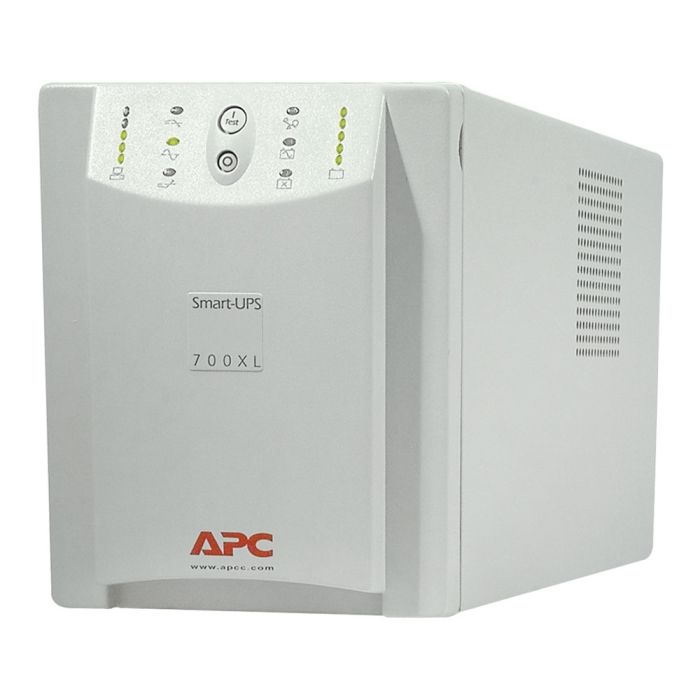

APC Smart-UPS XL 700VA 450W 120V SU700XL - Refurbished
APC Smart-UPS XL 700VA 450W SU700XL
Model: SU700XL
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $344.99
Out of stock
Manufacturer: APC
Model: APC Smart-UPS XL 700VA 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: SU700XL
Maximum output: 450W / 1000VA
Typical backup time at half load: 77.6 minutes (225 Watts)
Typical backup time at full load: 28.6 minutes (450 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1000VA 450W SU700XL Manual
SU700XL - APC Smart-UPS 1000VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Kw Rating |
865W |
||||
|
Rated Power in VA |
1500VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
13 W rated |
|
Battery Power in VAH |
187 VAh capacity |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
APCRBC124 |
|
Extendable Run Time |
0 |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
11.85 in (30.1 cm) |
|
Width |
4.41 in (11.2 cm) |
|
Depth |
15.04 in (38.2 cm) |
|
Net Weight |
23.81 lb(US) (10.8 kg) |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Max Configurable Power (Watts) |
865W
|
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped approximation to a sinewave |
|
Maximum configurable power in VA |
1500VA |
|
Transfer Time |
8ms typical : 12ms maximum |
Conformance:
|
Product Certifications |
California (CEC) Battery Charger
TÜV |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
Relative Humidity |
0…95%
|
|
Operating Altitude |
0...30000 ft
|
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C)
|
|
Storage Relative Humidity |
0…95%
|
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m)
|
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
Surge Protection & Filtering:
|
Surge Energy Rating |
354 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
|
|
Let Through Voltage Rating |
330V
|
N
