Description
Details
Manufacturer: APC

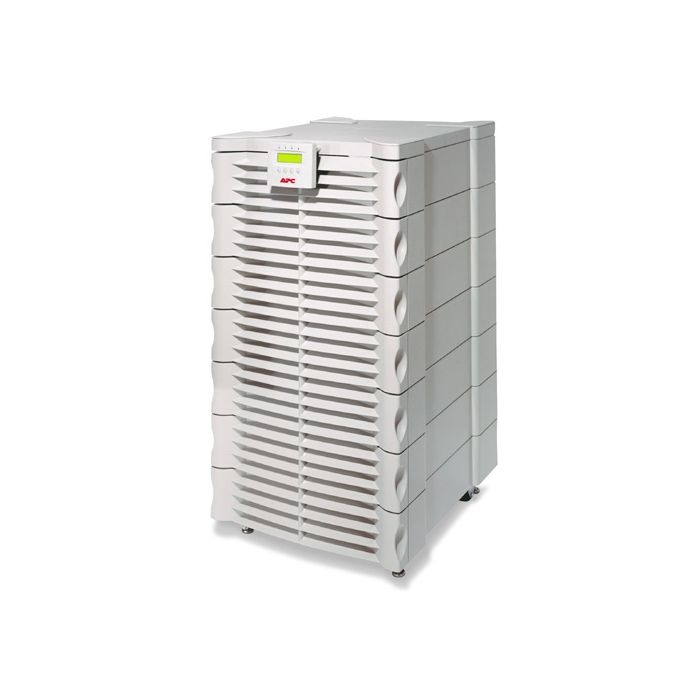

Model: APC Symmetra 12kVA Scalable to 16kVA N+1
Condition: Refurbished with New Batteries
Part Number: SY12KEX-PD
Maximum output: 8400W / 12000VA
Typical backup time at half load: 16.4 minutes (4200 Watts)
Typical backup time at full load: 5.4 minutes (8400 Watts)
Warranty: 1 year full replacement warranty
APC SYMMETRA 12KVA SY12KEX-PD Manual
SY12KEX-PD - APC Symmetra 12kVA Specifications:
Main:
Main Input Voltage |
208V |
||||||
Other Input Voltage |
240V |
||||||
Main Output Voltage |
120V |
||||||
Other Output Voltage |
240V |
||||||
Kw Rating |
8400W |
||||||
Rated Power in VA |
12000VA |
||||||
Output Connection Type |
|
||||||
Output Connector Type |
|
||||||
Number of Rack Unit |
0U |
||||||
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
Included Battery Modules |
3 |
Battery Slots Empty |
1 |
Typical Recharge Time |
2.5 h |
Additional Information |
Configurable for 120/208 or 120/240 output voltage |
Battery Charge Power (Watts) |
1033 W rated |
Battery Life |
3…5 year(s) |
Replacement Battery |
SYBATT |
Extendable Run Time |
1 |
General:
Number of Power Module |
5 |
Number Preinstalled Power Module |
3 |
Number of Power Module Free Slots |
0 |
Number of Power Module Filled Slots |
0 |
Redundant |
Yes |
Physical:
Color |
Beige |
Height |
52.01 in (132.1 cm) |
Width |
24.02 in (61 cm) |
Depth |
27.01 in (68.6 cm) |
Net Weight |
865.82 lb(US) (392.73 kg) |
Mounting Location |
Front |
Mounting Preference |
No preference |
Mounting Mode |
Not rack-mountable |
USB Compatible |
No |
Input:
Input Frequency |
45...65 Hz auto-sensing |
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
Efficiency at Full Load |
155...276V |
Input Power Factor at Full Load |
0.98 |
Output:
Max Configurable Power (Watts) |
11200W |
Harmonic Distortion |
Less than 5 % at full load |
Output Frequency (sync to mains) |
57...63 Hz for 60 Hz nominal sync to mains |
Crest Factor |
Up to 5 : 1 |
Topology |
Double Conversion Online |
Waveform Type |
Sine wave |
Bypass Type |
Internal Bypass (Automatic and Manual) |
Efficiency at Full Load |
87% full load |
Maximum Configurable Power in VA |
16000VA |
Conformance:
Product Certifications |
CSA
|
Standards |
FCC Part 15 class A |
Environmental:
Ambient Air Temperature for Operation |
32…104°F (0…40°C) |
Relative Humidity |
0…95% |
Operating Altitude |
0...10000 ft |
Ambient Air Temperature for Storage |
5…113°F (-15…45°C) |
Storage Relative Humidity |
0…95% |
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
Acoustic Level |
62 dBA |
Heat Dissipation |
3727 Btu/h |
Communications & Management:
Free Slots |
3 |
Pre-Installed SmartSlot™ Cards |
Network management card |
Control Panel |
Multi-function LCD status and control console |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) |
Yes |
