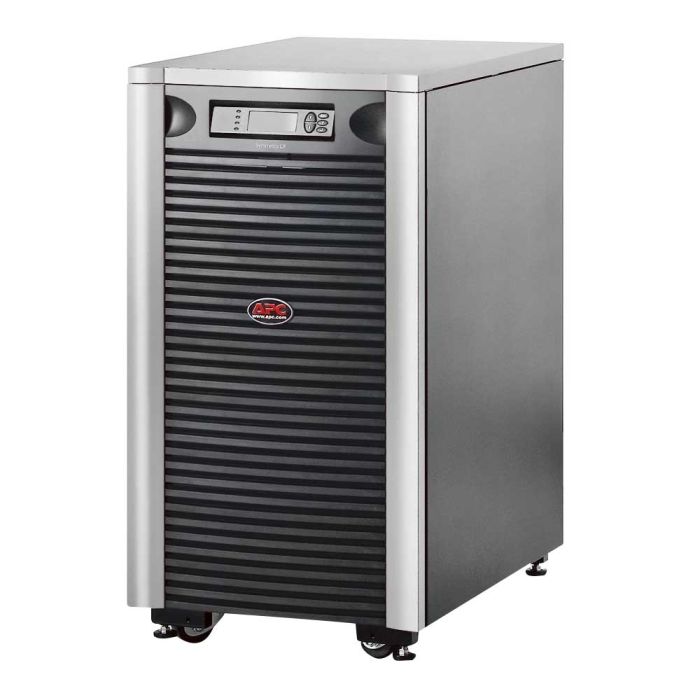

APC Symmetra LX 12KVA 9600W Tower 120V, 208V SYA12K16P - Refurbished
APC Symmetra LX 12KVA 9600W Tower - Scalable to 16kVA
Model: SYA12K16P
Input: Hard Wire 4-wire (2PH+N+G)
Output: (1) Hard Wire 4-wire (2PH + N +G) (Battery Backup)
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $6,899.99
In stock
Manufacturer: APC
Model: APC Symmetra LX 12kVA scalable to 16kVA N+1 Tower
Condition: New batteries, refurbished UPS
Part Number: SYA12K16P
Maximum output: 9.6kW / 12kVA
Typical backup time at half load: 17.3 minutes (4800 Watts)
Typical backup time at full load: 5.5 minutes (9600 Watts)
Warranty: 1 year full replacement warranty
APC Symmetra LX 12kVA 9.6kW Tower SYA12K16P Manual
SYA12K16P - APC Symmetra LX 16kVA Specifications:
Main:
|
Main Input Voltage |
208V |
|
Other Input Voltage |
240V |
|
Main Output Voltage |
120V |
|
Other Output Voltage |
240V |
|
Kw Rating |
9600W |
|
Rated Power in VA |
12000VA |
|
Output Connector Type |
Hard Wire 4-wire (2PH+N+G) 1 |
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Included Battery Modules |
3 |
|
Battery Slots Empty |
1 |
|
Typical Recharge Time |
3 h |
|
Additional Information |
Configurable for 120/208 or 120/240 output voltage |
|
Battery Charge Power (Watts) |
861 W rated |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
SYA8K16PX798 |
|
Extendable Run Time |
1 |
General:
|
Product Web Sub-family |
4kVA power increments |
|
Number of Power Module Free Slots |
2 |
|
Number of Power Module Filled Slots |
3 |
|
Redundant |
Yes |
Physical:
|
Color |
Black |
|
Height |
36.89 in (93.7 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
28.58 in (72.6 cm) |
|
Net Weight |
581.23 lb(US) (263.64 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
45...65 Hz auto-sensing
|
|
Number of Input Connectors |
1 Hard Wire 4-wire (2PH+N+G) |
|
Efficiency at Full Load |
96...138 V line to neutral |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
|
Input Power Factor at Full Load |
0.98 |
Output:
|
Max Configurable Power (Watts) |
12800W
|
|
Harmonic Distortion |
Less than 5 % at full load |
|
Output Frequency (sync to mains) |
47...63 Hz sync to mains |
|
Crest Factor |
Up to 5 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum Output Current |
56 A |
|
Maximum Configurable Power in VA |
16000VA |
Conformance:
|
Product Certifications |
CSA
|
|
Standards |
FCC Part 15 class A |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C)
|
|
Relative Humidity |
0…95% |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Relative Humidity |
0…95% |
|
Storage Altitude |
0…15000 ft (0.00…4572.00 m) |
|
Acoustic Level |
62 dBA |
|
Heat Dissipation |
4995 Btu/h |
Communications & Management:
|
Free Slots |
1
|
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring |
|
Control Panel |
Multi-function LCD status and control console |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
