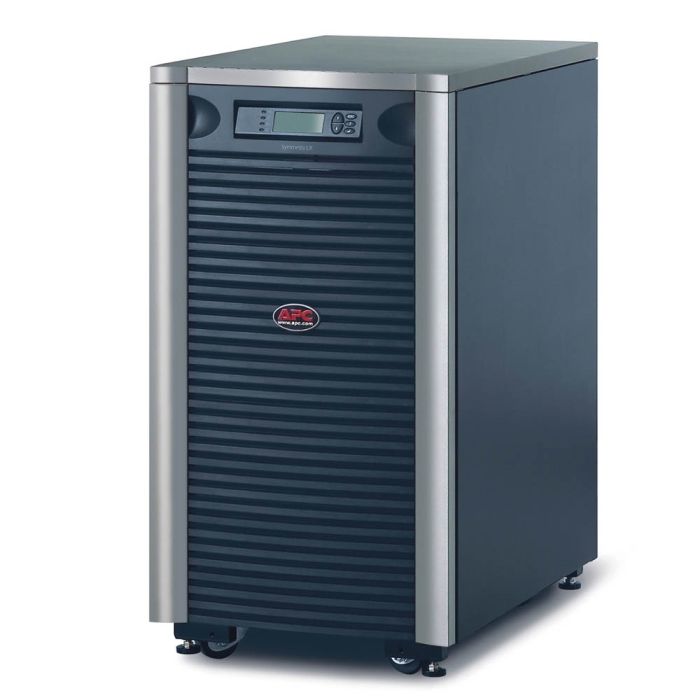

APC Symmetra LX 8kVA 6.4kW Tower SYA8K16P 208V/240V - Refurbished
APC Symmetra LX 8kVA 6.4kW (Scalable to 16kVA N+1 Tower)
Model: SYA8K16P
Configured: 6400 Watts / 8000 VA
Input: Hard Wire 4-wire (2PH+N+G)
Output: (1) Hard Wire 4-wire (2PH + N +G)
(2) Power Modules, (2) Battery Modules
Double Conversion Online UPS, Pure Sinewave Output
Refurbished with New Batteries
1 Year Replacement Warranty
CAD $6,324.99
In stock
Manufacturer: APC
Model: APC Symmetra LX 8kVA 6.4kW Tower (scalable to 16kVa)
Condition: Refurbished with New Batteries
Part Number: SYA8K16P
Runtime at half load: 17min @ 3200W
Runtime at full load: 5.1min @ 6400W
Includes: APC Symmetra LX 8kVA - (2) Power Modules, (2) Battery Modules
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The APC Symmetra LX 8kVA 6.4kW SYA8K16P is a refurbished UPS sytem with new batteries. The system is configured for 8kVA, it can be scaled to 16kVA N+1. This configuration includes (2) 4kva power modules and (2) SYBT5 battery modules.
The SYA8K16P comes with a one year warranty. Additional warranty of up to 3 years is available for your convenience.
SYA8K16P Specifications
Main:
|
Main Input Voltage |
208V |
|
Other Input Voltage |
240V |
|
Main Output Voltage |
120V |
|
Other Output Voltage |
240V |
|
Kw Rating |
6400W |
|
Rated Power in VA |
8000VA |
|
Output Connector Type |
Hard Wire 4-wire (2PH+N+G) 1 |
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Included Battery Modules |
2 |
|
Battery Slots Empty |
2 |
|
Typical Recharge Time |
3 h |
|
Additional Information |
Configurable for 120/208 or 120/240 output voltage |
|
Battery Charge Power (Watts) |
574 W rated |
|
Battery Life |
3…5 year(s) |
|
Replacement Battery |
SYBT5 |
|
Extendable Run Time |
1 |
General:
|
Product Web Sub-family |
4kVA power increments |
|
Number of Power Module Free Slots |
3 |
|
Number of Power Module Filled Slots |
2 |
|
Redundant |
Yes |
Physical:
|
Color |
Black |
|
Height |
36.89 in (93.7 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
28.58 in (72.6 cm) |
|
Net Weight |
484.03 lb(US) (219.55 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
45...65 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 4-wire (2PH+N+G) |
|
Efficiency at Full Load |
96...138 V line to neutral |
|
Input Total Harmonic Distortion |
Less than 7% for full load |
|
Input Power Factor at Full Load |
0.98 |
Output:
|
Max Configurable Power (Watts) |
12800W |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Output Frequency (sync to mains) |
47...63 Hz sync to mains |
|
Crest Factor |
Up to 5 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum Output Current |
37 A |
|
Maximum Configurable Power in VA |
16000VA |
Conformance:
|
Product Certifications |
CSA |
|
Standards |
FCC Part 15 class A |
Environmental:
|
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
|
Relative Humidity |
0…95% |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
|
Storage Relative Humidity |
0…95% |
|
Storage Altitude |
0…15000 ft (0.00…4572.00 m) |
|
Acoustic Level |
62 dBA |
|
Heat Dissipation |
4995 Btu/h |
Communications & Management:
|
Free Slots |
1 |
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring |
|
Control Panel |
Multi-function LCD status and control console |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
