51% Off

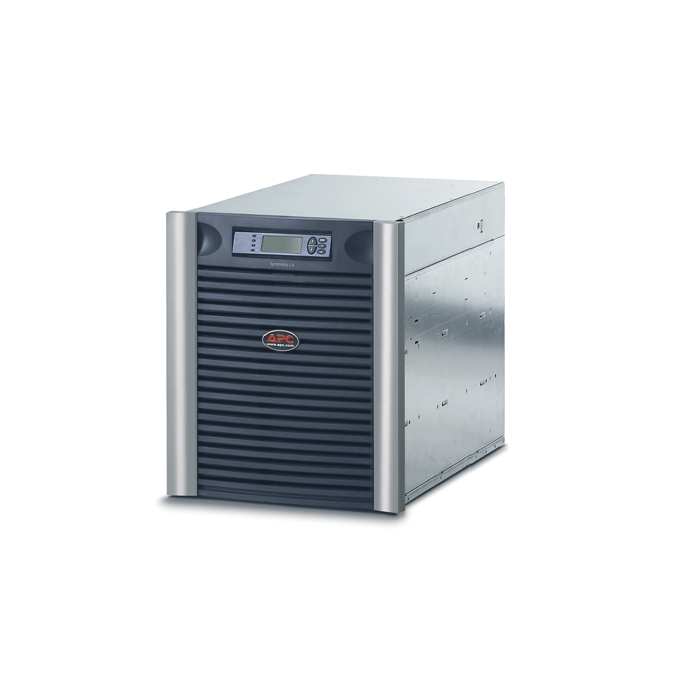

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rackmount SYA8K8RMP

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rackmount
Model: SYA8k8RMP

6400 Watts / 8000 VA
Output: (1) Hard Wire 4-wire (2PH + N +G), (2) NEMA L14-30R, (4) NEMA L5-20R

Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: CAD $10,300.00

Now only: CAD $4,999.99

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada



Manufacturer: APC
Model: APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rackmount
Condition: Refurbished with New Batteries
Part Number: SYA8K8RMP
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The SYA8K8RMP is fully refurbished with new batteries. The SYA8K8RMP comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

SYA8K8RMP Specifications


Output Power Capacity

6400 Watts / 8000 VA

Max Configurable Power

6400 Watts / 8000 VA

Nominal Output Voltage

120V, 208V

Output Voltage Note

Configurable for 120/208

or 120/240 output voltage

Efficiency at Full Load


Output Voltage Distortion

Less than 5% at full load

Output Frequency

(sync to mains)

47 - 63 Hz

Other Output Voltages


Crest Factor

up to 5 : 1


Double Conversion Online

Waveform Type



Internal Bypass

(Automatic and Manual),

Optional External Bypass

Output Connections

(1) Hard Wire 4-wire

(2PH + N +G)


(2) NEMA L14-30R

(4) NEMA L5-20R



Nominal Input Voltage


Input Frequency

45 - 65 Hz (auto sensing)

Input Connections

Hard Wire 4-wire (2PH+N+G)


Input voltage range for

main operations

96 - 138 (Line to Neutral)V

Other Input Voltages


Input Total Harmonic Distortion

Less than 7% for full load

Batteries and Runtime:

Battery Type

Maintenance-free sealed

Lead-Acid battery with s

uspended electrolyte :


Included Battery Modules


Typical recharge time

3 hour(s)

Replacement Battery


Extended Run Options

APC Symmetra LX 8KVA

Scalable to 8kVA N+1

Rack Mount, 208/240V

Communications and Management:

Interface Port(s)

DB-9 RS-232, RJ-45 10/100

Base-T, Smart-Slot

Available SmartSlot

Interface Quantity


Pre-Installed SmartSlot



Control panel

Multi-function LCD status

and control console

Audible Alarm

Audible and visible alarms

prioritized by severity

Emergency Power

Off (EPO)



Maximum Height

572.00 mm

Maximum Width

472.00 mm

Maximum Depth

688.00 mm

Net Weight

178.18 KG

Rack Height


Shipping Weight

216.82 KG

Shipping Height

787.00 mm

Shipping Width

599.00 mm

Shipping Depth

997.00 mm




Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-4500 meters

Audible noise at 1 meter

from surface of unit

62.00 dBA

Online Thermal Dissipation

3707.00 BTU/hr

Additional Info

Additional Info

Manufacturer N/A
Form Factor N/A
Waveform in Battery Mode N/A
Input Voltage N/A
Output (VA) No
Output Voltage N/A
