33% Off

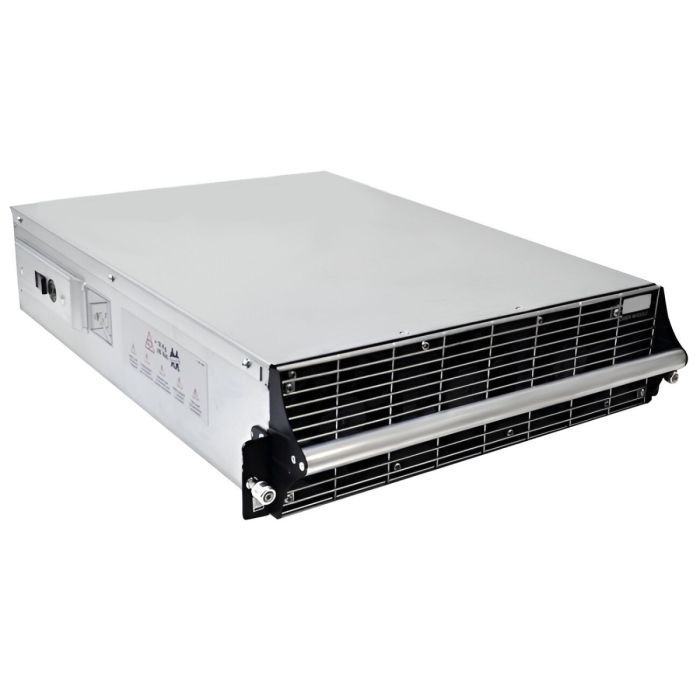

APC Symmetra PX 10kW Power Module 208V SYPM10KF

APC Symmetra PX 10kW Power Module 208V (SYPM10KF)
10 kW / 10 kVA
Output: (1) Hard Wire 5-wire (3PH + N + G)

Refurbished with New Batteries
1 Year Replacement Warranty

Availability: In stock

Msrp Price: CAD $3,599.99

Now only: CAD $2,399.99

Shipping Info
  • This item is in stock and ships within 1 business day
  • We will gladly accept returns for any reason within 30 days of receipt of delivery
  • Continental USA & Canada



Manufacturer: APC
Model: APC Symmetra PX 10kW Power Module 208V
Condition: Refurbished
Part Number: SYPM10KF
Warranty: 1 Year Warranty included

The SYPM10KF comes refurbished with a one year replacement warranty. The APC Symmetra comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

SYPM10KF Specifications


Output Power Capacity

10 kW / 10 kVA

Max Configurable Power

10 kW / 10 kVA

Nominal Output Voltage

208V, 208V 3PH

Efficiency at Full Load


Output Voltage Distortion

Less than 5% at full load

Output Frequency

(sync to mains)

57 - 63 Hz for 60 Hz


Crest Factor



Double Conversion Online

Waveform Type


Output Connections

(1) Hard Wire 5-wire (3PH + N + G)


Nominal Input Voltage

208V, 208V 3PH

Input Frequency

60 Hz +/- 3 Hz

Input Connections

Hard Wire 5-wire

(3PH + N + G)


Input voltage range for

main operations

177 - 239 (208V)V

Communications and Management:

Audible Alarm

Alarm when on battery :

distinctive low battery alarm :

configurable delays

Emergency Power

Off (EPO)



Maximum Height

133.00 mm

Maximum Width

483.00 mm

Maximum Depth

700.00 mm

Rack Height


Net Weight

26.36 KG

Shipping Weight

31.82 KG

Shipping Height

273.00 mm

Shipping Width

559.00 mm

Shipping Depth

832.00 mm


Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-999.9 meters

Storage Temperature

-40 - 70 °C

Storage Relative Humidity

0 - 95%

Audible noise at 1 meter

from surface of unit

64.00 dBA

Online Thermal Dissipation

2970.00 BTU/hr

Additional Info

Additional Info

Manufacturer N/A
Form Factor N/A
Waveform in Battery Mode N/A
Input Voltage N/A
Output (VA) No
Output Voltage N/A
