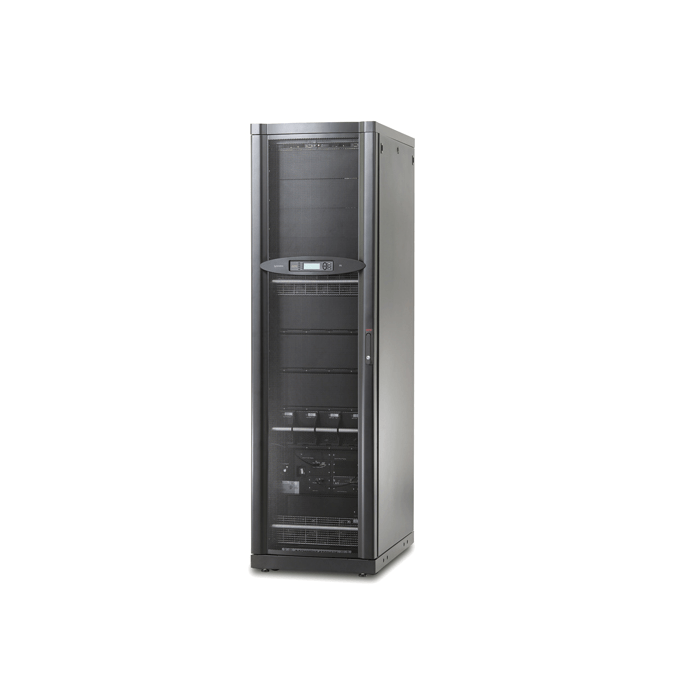

APC Symmetra PX 10kW Scalable to 40kW N+1, 208V SY10K40F
APC Symmetra PX 10kW to Scalable to 40kW N+1, 208V (SY10K40F)
10 kW / 10 kVA
Output: (1) Hard Wire 5-wire (3PH + N + G), (1) Screw Terminals
Refurbished with New Batteries
1 Year Replacement Warranty
CAD $15,697.49
In stock
Manufacturer: APC
Model: APC Symmetra PX 10kW to Scalable to 40kW N+1, 208V
Condition: Refurbished with New Batteries
Part Number: SY10K40F
Warranty: 1 year full replacement warranty
The SY10K40F comes refurbished with new batteries. The APC Symmetra comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
SY10K40F - APC Symmetra PX 10kW to Scalable to 40kW N+1 Specifications:
Main:
|
Main Input Voltage |
208V 3 phase |
|
Main Output Voltage |
120V |
|
Kw Rating |
10000W |
|
Rated Power in VA |
10000VA |
|
Output Connector Type |
Hard Wire 5-wire (3PH + N + G) 1 |
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
3 |
|
Typical Recharge Time |
2 h |
|
RBC Quantity |
1 |
|
Battery Voltage |
+/-192 V (split battery referenced to neutral) |
|
DC Overcurrent Protection |
125A |
|
Overload Operation |
60 seconds @ 125% and 30 seconds @ 150% |
|
Battery Charge Power (Watts) |
1375 W rated |
|
Extendable Run Time |
1 |
|
Replacement Battery |
SYBT4 |
General:
|
Bypass Connection |
5 wire (3PH + N + G) |
|
Max Bypass Input Current |
162 A |
|
Bypass Protection Device |
175 A |
|
Number of Power Module |
5 |
|
Number Preinstalled Power Module |
1 |
|
Number of Power Module Free Slots |
4 |
|
Number of Power Module Filled Slots |
1 |
|
Redundant |
Yes |
Physical:
|
Color |
Black |
|
Height |
81.50 in (207 cm) |
|
Width |
23.62 in (60 cm) |
|
Depth |
35.51 in (90.2 cm) |
|
Net Weight |
896.89 lb(US) (406.82 kg) |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz |
|
Number of Input Connectors |
1 Hard Wire 5-wire (3PH + N + G) |
|
Efficiency at Full Load |
177...240V |
|
Maximum Input Current per Phase |
162 A |
|
Switching Current Capacity |
175 A |
|
Maximum Short Circuit Withstand (Icw) |
30 kA |
|
Input Protection Type |
3-pole breaker |
|
Input Power Factor at Full Load |
0.99 |
Output:
|
Max Configurable Power (Watts) |
40000W |
|
Harmonic Distortion |
Less than 5% |
|
Output Frequency (sync to mains) |
57...63 Hz for 60 Hz nominal sync to mains |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Output Voltage Tolerance |
+/-1% static and +/- 5% at 100% load step |
|
Output Voltage THD |
< 2% for 0 to 100% linear load and < 5% for full non-linear load |
|
Overload Operation |
60 seconds @ 125% and 30 seconds @ 150% |
|
Required Output Current Protection |
150 A |
|
Bypass Type |
Built-in Static Bypass |
|
Efficiency at Full Load |
94 % in battery operation |
|
Maximum Output Current |
111 A |
|
Maximum Configurable Power in VA |
40000VA |
Conformance:
|
Product Certifications |
cUL Listed
|
|
Standards |
CSA C22.2 No.107.3-05 |
Environmental:
|
Ambient Air Temperature for Operation |
32…104°F (0…40°C) |
|
Relative Humidity |
0…95% |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5…104°F (-15…40°C) |
|
Storage Relative Humidity |
0…95% |
|
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
|
Acoustic Level |
64 dBA |
|
Heat Dissipation |
3381 Btu/h |
|
NEMA Degree of Protection |
NEMA 1 |
Communications & Management:
|
Free Slots |
2 |
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 - Masterpack for Symmetra 3-Phase |
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes |
