Description
Details
Manufacturer: APC

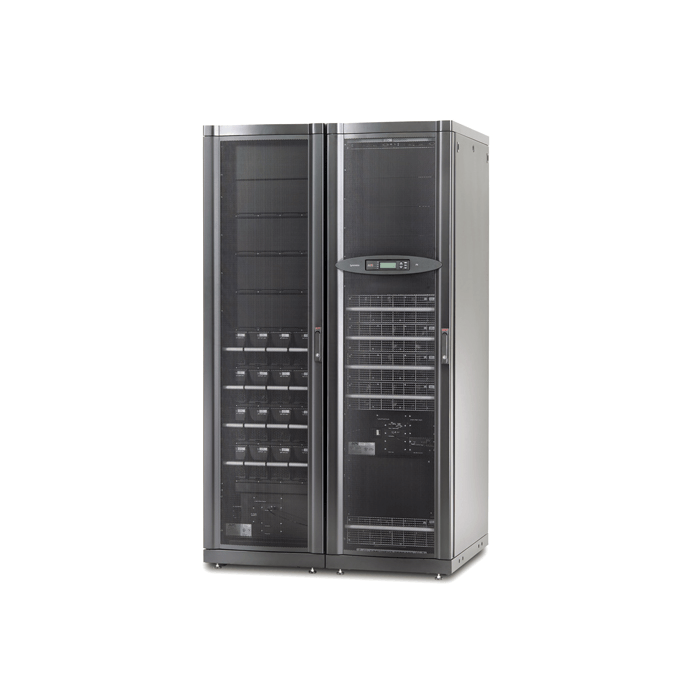

Model: APC Symmetra PX 40kW Scalable to 80kW N+1
Condition: Refurbished with New Batteries
Part Number: SY40K80F
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The SY40K80F comes refurbished with new batteries. The APC Symmetra comes with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
SY40K80F Specifications
Output:
Output Power Capacity |
40 kW / 40 kVA |
Max Configurable Power |
40 kW / 40 kVA |
Nominal Output Voltage |
120V, 208V, 208V 3PH |
Output Voltage Distortion |
Less than 3% |
Output Frequency (sync to mains) |
57 - 63 Hz for 60 Hz nominal |
Crest Factor |
Unlimited |
Topology |
Double Conversion Online |
Waveform Type |
sinewave |
Output Connections |
(1) Hard Wire 5-wire (3PH + N + G) (1) Screw Terminals |
Bypass |
Built-in Static Bypass |
Input:
Nominal Input Voltage |
208V 3PH |
||
Input Frequency |
50/60 Hz +/- 5 Hz (auto sensing) |
||
Input Connections |
|
||
Input voltage range for main operations |
177 - 240V |
Batteries and Runtime:
Battery Type |
No internal battery -uses external battery system |
Included Battery Modules |
4 |
Available Battery Module Slots |
4 |
Typical recharge time |
2 hour(s) |
Replacement Battery |
SYBT4 |
Communications and Management:
Interface Port(s) |
SmartSlot |
Available SmartSlot Interface Quantity |
2 |
Pre-Installed SmartSlot Cards |
AP9630 |
Control panel |
Multi-function LCD status and control console |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) |
Yes |
Physical:
Maximum Height |
2070.00 mm |
Maximum Width |
1219.00 mm |
Maximum Depth |
902.00 mm |
Rack Height |
42U |
Net Weight |
1012.73 KG |
Shipping Weight |
1069.91 KG |
Shipping Height |
2311.00 mm |
Shipping Width |
1499.00 mm |
Shipping Depth |
1054.00 mm |
Color |
Black |
Units per Pallet |
1.00 |
Environmental:
Operating Environment |
0 - 40 °C |
Operating Relative Humidity |
0 - 95% |
Operating Elevation |
0-3000 meters |
Storage Temperature |
-15 - 40 °C |
Storage Relative Humidity |
0 - 95% |
Storage Elevation |
0-15000 meters |
Audible noise at 1 meter from surface of unit |
64.00 dBA |
Online Thermal Dissipation |
11884.00 BTU/hr |
Protection Class |
NEMA 1 |
