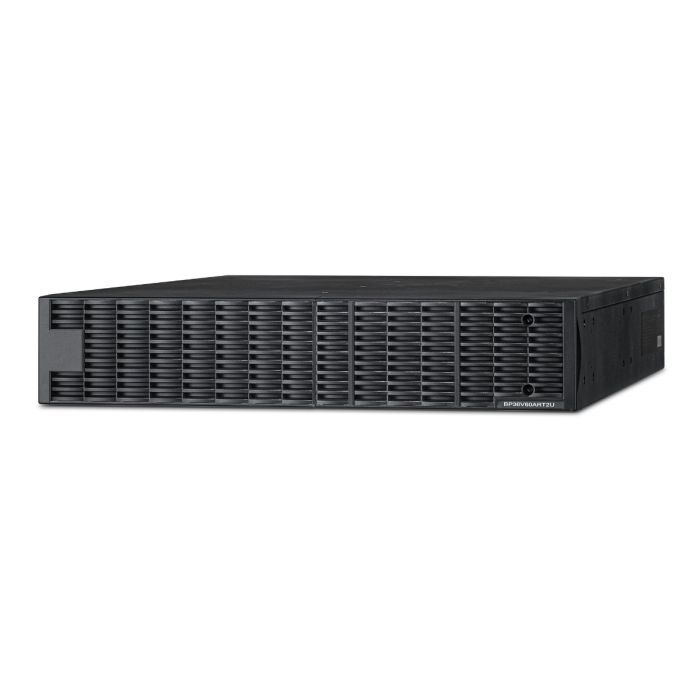

CyberPower 36V 60A Extended Runtime Battery Module (EBM) BP36V60ART2U - Refurbished
CyberPower Extended Battery Module
Model: BP36V60ART2U
Extended runtime battery cabinet
For select 36VDC UPS Systems
New batteries, refurbished cabinet
1 Year Warranty Included
CAD $574.99
In stock
Manufacturer: CyberPower
Model:Â BP36V60ART2U Extended Battery Module
Condition: New batteries, refurbished battery cabinet
Compatible with: OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN
Part Number: BP36V60ART2U
Warranty: 1 year full replacement warranty
BP36V60ART2U - CyberPower Extended Battery Module Specifications:
General:
|
Amperage |
60 A |
|
DC Voltage |
36 VDC |
Battery:
|
Battery Quantity |
6 |
|
Battery Size |
12V/9Ah |
|
Battery Type |
Sealed Lead-Acid Battery |
|
Built-in Charger |
Yes |
|
Expansion Ready (Daisy-Chain) |
Yes |
|
Hot Swappable |
Yes |
|
Replacement Battery Cartridge |
(1) RB1290X3R and |
|
Typical Recharge Time |
4 Hours (0% to 90% charged) |
|
User Replaceable Battery |
Yes |
Input
|
Circuit Breaker |
60 A |
|
Nominal Input Voltage |
36 VAC |
Output
|
USB Charge Port |
No |
Physical
|
Color |
Black |
|
Material of Construction |
Metal |
|
Mounting Hardware |
Yes (Not Included) |
|
Rack Height |
2U (Not Included) |
Dimensions
|
Physical Dimensions – (WxHxD) (cm) |
43.18 x 8.89 x 42.93 (cm) |
|
Physical Dimensions – (WxHxD) (in) |
17 x 3.5 x 16.9 (in) |
|
Physical Dimensions – (WxHxD) (mm) |
432 x 89 x 429 (mm) |
|
Physical Weight (kg) |
22.95 |
|
Physical Weight (lb) |
50.6 |
Environmental
|
Operating Elevation |
0 – 10000 ft (0 – 3048 m) |
|
Operating Relative Humidity |
0 – 90 % (non-condensing) |
|
Operating Temperature |
32 – 104 °F (0 – 40 °C) |
|
Storage Elevation |
0 – 50000 ft (0 – 15239 m) |
|
Storage Relative Humidity |
0 – 95% (non-condensing) |
|
Storage Temperature |
5 – 113 °F (-15 – 45 °C) |
Compatibility
|
UPS Models |
OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U, OL1500RTXL2UN |
Certifications
|
Environmental |
RoHS Compliant |
|
Safety |
UL1778 |
