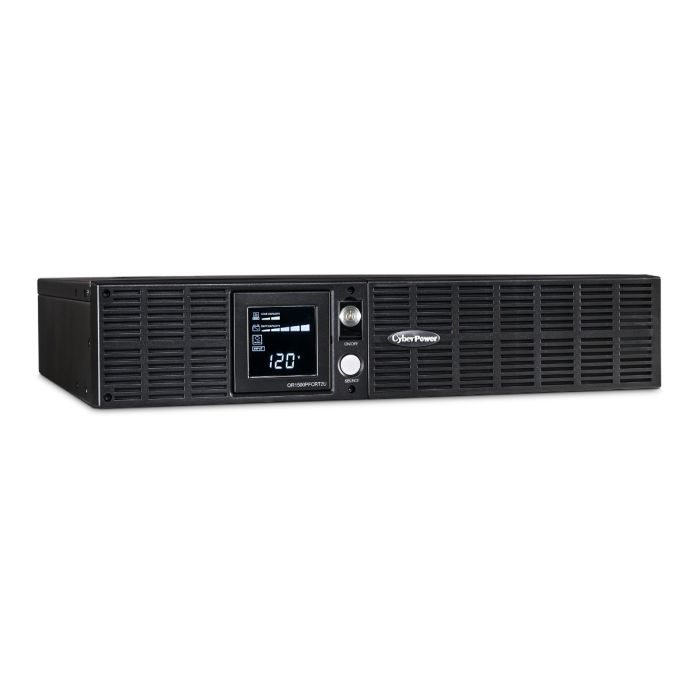

CyberPower PFC Sinewave UPS 1500VA 1050W 120V Output: (8)5-15R OR1500PFCRT2U - Refurbished
CyberPower PFC Sinewave UPS 1500VA 1050W, (RM 2U -Â Not Included)Â
Model: OR1500PFCRT2U
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Line-Interactive UPS - Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $459.99
Back Order
Manufacturer: CyberPower
Model: CyberPower PFC Sinewave UPS 1500VA, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: OR1500PFCRT2U
Maximum output: 1050WÂ /Â 1500VA
Typical backup time at half load: 17Â minutes (525 Watts)
Typical backup time at full load: 7.7 minutes (1050 Watts)
Warranty: 1 year full replacement warranty
CyberPower PFC Sinewave UPS 1500VA 1050W OR1500PFCRT2U Manual
OR1500PFCRT2U - CyberPower PFC Sinewave UPS 1500VA Specifications:
General:
|
UPS Topology |
Line Interactive |
Input:
|
Voltage |
120 VAC |
||
|
Input Voltage Range |
88 – 139 VAC |
||
|
Adjustable Voltage Range |
86 – 142 VAC |
||
|
Frequency Range |
60 Hz ± 3 Hz |
||
|
Plug Type |
|
||
|
Plug Style |
Right Angle, 45° Offset Right |
||
|
Cord Length |
10 ft (3 m) |
Output:
|
VA |
1500VA |
||
|
Watts |
1050W |
||
|
On Battery Voltage |
120 VAC ± 5% |
||
|
On Battery Frequency |
60 Hz ± 1% |
||
|
On Battery Waveform |
Sine Wave |
||
|
Output Power Factor |
0.7 |
||
|
Automatic Voltage Regulation (AVR) |
Yes, +14% |
||
|
Outlet Type |
|
||
|
Outlets – Total |
8 |
||
|
Outlets – Battery & Surge Protected |
8 |
||
|
Overload Protection |
Internal Circuitry Limiting |
||
|
Transfer Time |
4 ms |
Battery:
|
Runtime at Half Load |
17 minutes |
|
Runtime at Full Load |
7.7 minutes |
|
Battery Type |
Sealed Lead-Acid |
|
Battery Size |
12V/7Ah |
|
Battery Quantity |
4 |
|
Battery Voltage |
24V |
|
Hot-Swappable |
Yes |
|
User Replaceable |
Yes |
|
Typical Recharge Time |
10 hours |
|
Replacement Battery Cartridge |
RB1270X4G (With serial numbers beginning with ‘GX8’) |
|
Replacement Battery Cartridge Quantity |
1 |
Surge Protection & Filtering:
|
Surge Suppression |
1,470 J |
|
Phone RJ11 / Ethernet RJ45 |
1-In, 1-Out (10/100) |
|
EMI/RFI Filtration |
Yes |
Management & Communications:
|
Multifunction LCD Panel |
Yes |
|
HID Compliant USB Port |
Yes |
|
Serial Port |
Yes |
|
Emergency Power Off (EPO) Port |
Yes |
|
Cables Included |
USB Cable |
|
LED Indicators |
Power On |
|
Audible Alarms |
On Battery |
|
Software |
PowerPanel® Business Edition |
|
Remote Management Card |
None |
Physical:
|
Form Factor |
Rack/Tower (Not Included)
|
|
Rack Size |
2U (Not Included) |
|
Dimensions – W×H×D (in) |
17.01 × 3.5 × 15.32 inches |
|
Weight (lbs) |
50.6 lbs |
Environmental:
|
Operating Temperature |
32 – 104 °F (0 – 40 °C)
|
|
Operating Humidity |
0 – 90% (non-condensing) |
|
Maximum Operating Elevation |
0 – 10000 feet (0 – 3000 meters) |
|
Storage Temperature |
5 – 113 °F (-15 – 45 °C) |
|
Storage Humidity |
0 – 95% (non-condensing) |
|
Maximum Storage Elevation |
0 – 50000 feet (0 – 15000 meters) |
|
Audible Noise @ 1.5m |
48.7 dBA |
|
On Line Thermal Dissipation |
95.6 BTU/hr |
|
On Battery Thermal Dissipation |
647.4 BTU/hr |
