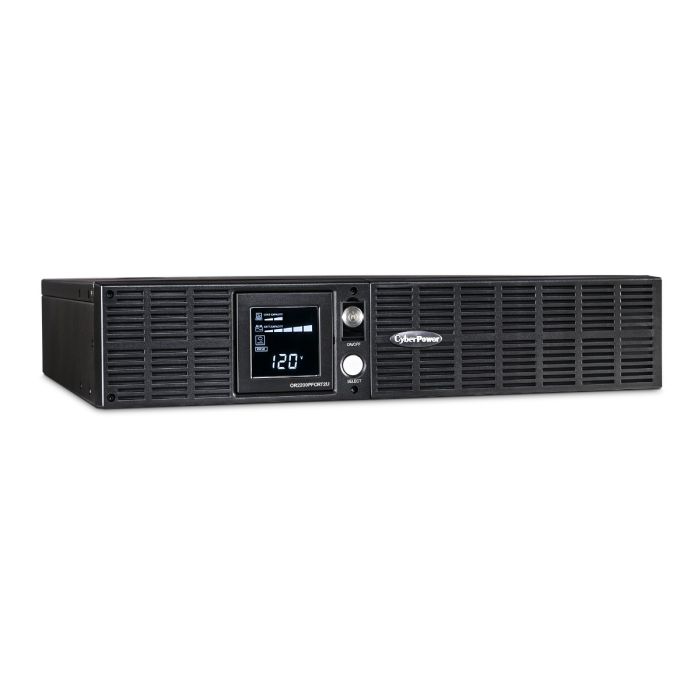

CyberPower PFC Sinewave UPS 2000VA 1540W 120V 20A OR2200PFCRT2U - Refurbished
CyberPower PFC Sinewave UPS 2000VA 1540WÂ
Model: OR2200PFCRT2U
Input: NEMA 5-20P (120V - 20A)
Output: (2) NEMA 5-20R, (6) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $517.49
Back Order
Manufacturer: CyberPower
Model: CyberPower PFC Sinewave UPS 2000VA 1540W, 20A, 120V, (RM 2U - Not included)
Condition: New batteries, Refurbished UPS
Part Number: OR2200PFCRT2U
Maximum output: 1540WÂ /Â 2000VA
Typical backup time at half load:Â 15.5Â minutes (770 Watts)
Typical backup time at full load: 4.5Â minutes (1540 Watts)
Warranty: 1 year full replacement warranty
CyberPower PFC Sinewave UPS 2000VA 1540W OR2200PFCRT2U User's Manual
OR2200PFCRT2U - CyberPower PFC Sinewave UPS 2000VA Specifications:
General:
|
UPS Topology |
Line Interactive |
|
Energy Saving |
GreenPower UPSâ„¢ Bypass |
Input:
|
Voltage |
120 VAC |
|
|
Input Voltage Range |
88 – 139 VAC |
|
|
Adjustable Voltage Range |
86 – 142 VAC |
|
|
Frequency Range |
|
|
|
Plug Type |
NEMA 5-20P |
|
|
Plug Style |
Right Angle |
|
|
Cord Length |
10 ft |
Output:
|
VA |
2000VA |
|
Watts |
1540W |
|
On Battery Voltage |
120 VAC ± 5% |
|
On Battery Frequency |
60 Hz ± 1% |
|
On Battery Waveform |
Sine Wave |
|
Output Power Factor |
0.77 |
|
Automatic Voltage Regulation (AVR) |
Yes, +14% |
|
Outlet Type |
(2) NEMA 5-20R, (6) NEMA 5-15R |
|
Outlets – Total |
8 |
|
Outlets – Battery & Surge Protected |
8 |
|
Overload Protection |
Internal Circuitry Limiting |
|
Transfer Time |
4 ms |
Battery:
|
Runtime at Half Load |
15.5 minutes |
|
Runtime at Full Load |
4.5 minutes |
|
Battery Type |
Sealed Lead-Acid |
|
Battery Size |
12V/9Ah |
|
Battery Quantity |
4 |
|
Battery Voltage |
24V |
|
Hot-Swappable |
Yes |
|
User Replaceable |
Yes |
|
Typical Recharge Time |
10 hours |
|
Replacement Battery Cartridge |
RB1290X4H (With serial numbers beginning with ‘GX9’) |
|
Replacement Battery Cartridge Quantity |
1 |
Surge Protection & Filtering:
|
Surge Suppression |
1470 J |
|
Phone RJ11 / Ethernet RJ45 |
1-In, 1-Out (10/100) |
|
EMI/RFI Filtration |
Yes |
Management & Communications:
|
Multifunction LCD Panel |
Yes |
|
HID Compliant USB Port |
Yes |
|
Serial Port |
Yes |
|
Emergency Power Off (EPO) Port |
Yes |
|
Cables Included |
USB Cable |
|
LED Indicators |
Power On |
|
Audible Alarms |
On Battery |
|
Software |
PowerPanel® Business Edition |
|
Remote Management Card |
None |
Physical:
|
Form Factor |
Rack (Not included) |
|
Rack Size |
2U (Not included) |
|
Dimensions – W×H×D (in) |
17.01 × 3.5 × 15.32 inches |
|
Weight (lbs) |
57.2 lbs |
Environmental:
|
Operating Temperature |
32 – 104 °F (0 – 40 °C) |
|
Operating Humidity |
0 – 90% (non-condensing) |
|
Maximum Operating Elevation |
0 – 10000 feet (0 – 3000 meters) |
|
Storage Temperature |
5 – 113 °F (-15 – 45 °C) |
|
Storage Humidity |
0 – 95% (non-condensing) |
|
Maximum Storage Elevation |
0 – 50000 feet (0 – 15000 meters) |
|
Audible Noise @ 1.5m |
48.5 dBA |
|
On Line Thermal Dissipation |
177.5 BTU/hr |
|
On Battery Thermal Dissipation |
1278 BTU/hr |
Certifications:
|
Safety |
UL 5th |
|
Environmental |
RoHS Compliant |
