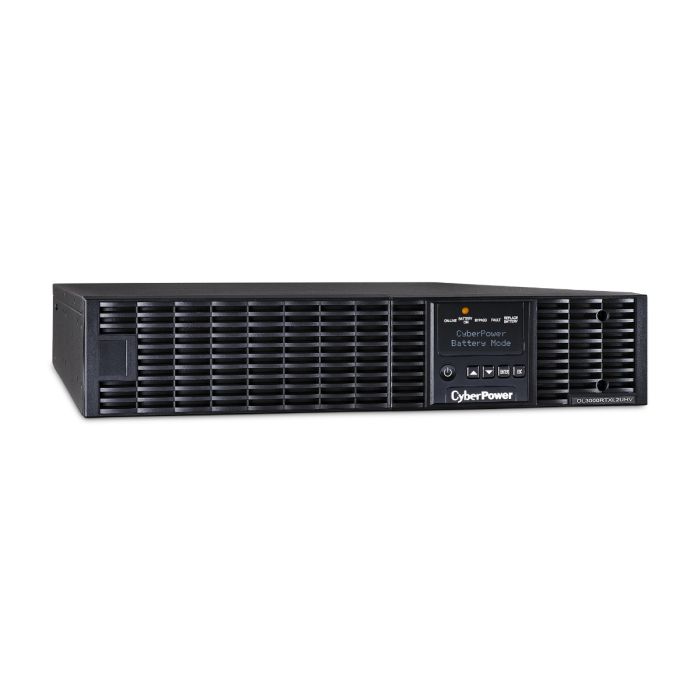

CyberPower Smart App UPS 3000VA 2700W LCD RM 2U 120V 30A OL3000RTXL2UHV - Refurbished

Energy Saving

ECO Mode Efficiency >97%

UPS Topology

Online Double Conversion

Battery Quantity

6

Battery Size

12 V / 9 Ah

Battery Type

Sealed Lead-Acid Battery

Extended Battery Module

BP72V60ART2U

Hot Swappable

Yes

Replacement Battery Cartridge

RB1290X6A

Replacement Battery Cartridge Quantity

1

Runtime at Full Load

4 min

Runtime at Half Load

12.5 min

Smart Battery Management (SBM) Mode

Yes

Typical Recharge Time

4 Hours (0% to 90% charged)

Circuit Breaker

16 A

Cold Start

Yes

Cord Length

10 ft (3.0 m)

Input Frequency Range

40 Hz – 70 Hz

Input Plug Type

Input Power Factor

0.99

Input Voltage Range

120 VAC – 139 VAC for 0–60% Load
140 VAC – 159 VAC for 0-70% Load
160 VAC – 179 VAC for 0-80% Load
180 VAC – 189 VAC for 0–90% Load
190 VAC – 280 VAC for 0–100% Load

Nominal Input Voltage

200 – 240 VAC

Bypass

Internal Bypass (Automatic and Manual)

Crest Factor

3:1

ECO Mode Voltage Regulation

±10%, ±15% (Configurable)

Harmonic Distortion

< 3% at Linear Load
< 5% at Non-Linear Load

On AC WaveForm

Sine Wave

On Battery Frequency

50/60 Hz ± 0.25Hz (auto-sensing or configurable)

On Battery Voltage

200/208/220/230/240 VAC ± 2% (configurable)

On Battery Waveform

Sine Wave

Outlet Type

Outlets – Total

3

Output Power Factor

0.9

Overload Protection

Line Mode: 105% ~ 125% Load – 1 min
Line Mode: 126% ~ 150% Load – 10 sec
Battery Mode: 105% ~ 130% Load – 10 sec
Battery Mode: 131% – 150% Load – 2 sec

Typical Transfer Time

0 ms

UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection

USB Charge Port

No

VA

3000 VA

Watts

2700 W

EMI/RFI Filtration

Yes

Phone / Network Protection RJ11/RJ45

1-In / 1-Out (Combo)

Surge Suppression (Joules)

445 J

Audible Alarms

Battery Mode
Low Battery
Overload
UPS Fault

Dry Contacts

Yes

Emergency Power Off (EPO) Port

Yes

Expansion Slot

Yes – with optional RMCARD205 or RMCARD203 - Not included

HID Compliant USB Port

Yes

LCD

Multifunction LCD

LED Indicators

Power On (White)
Line Mode (Green)
Battery Mode (Yellow)
Bypass Mode (Yellow)
Fault (Red)
Replace Battery (Red)

Management Cable

USB Cable

Removable LCD Control Panel Option

Yes – Requires DB26 cable (not included)

Rotatable LCD Control Panel Option

Yes

Serial Port

1 Serial

Software (Free Download)

PowerPanel® Business

Color

Black

Form Factor

Rack/Tower

Material of Construction

Metal

Mounting Hardware

Yes

Rack Height

2U

Physical Dimensions – (WxHxD) (cm)

43.18 x 8.89 x 59.99 (cm)

Physical Dimensions – (WxHxD) (in)

17 x 3.5 x 23.62 (in)

Physical Dimensions – (WxHxD) (mm)

432 x 89 x 600 (mm)

Physical Weight (kg)

30.93

Physical Weight (lb)

68.2

38 dBA to 55 dBA (0 to 100% load)

ECO Mode Thermal Dissipation

207 BTU/hr

Online Thermal Dissipation

790 BTU/hr

Operating Elevation

0 – 10000 ft (0 – 3048 m)

Operating Relative Humidity

0 – 90 % (non-condensing)

Operating Temperature

32 – 104 °F (0 – 40 °C)

Storage Elevation

0 – 50000 ft (0 – 15239 m)

Storage Relative Humidity

0 – 95% (non-condensing)

Storage Temperature

-4 – 113 °F (-20 – 45 °C)

Environmental

RoHS Compliant

Safety

UL1778
FCC Part 15 Class A
CSA C22.2 No. 107.3
