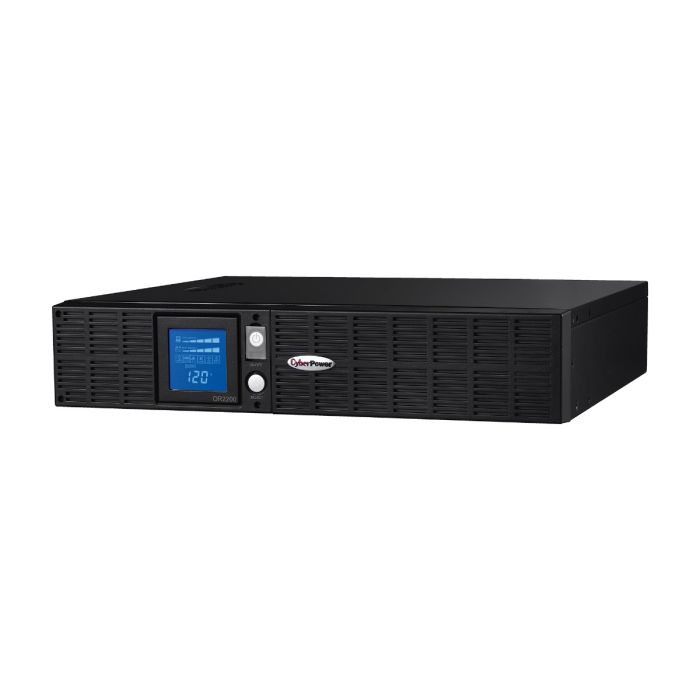

CyberPower Smart App LCD UPS 2200VA 1320W RM 2U 20A 120V OR2200LCDRM2U - Refurbished
CyberPower Smart App LCD UPS 2200VA 1320W RM 2U
Model: OR2200LCDRM2U
Input: NEMA 5-20P (120V - 20A)
Output: (8) NEMA 5-20R
Line-Interactive UPS - Simulated Sine wave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $574.99
Back Order
Manufacturer: CyberPower
Model: CyberPower Smart App LCD UPS, RM, 2U, 20A, 120V
Condition: New batteries, refurbished UPS
Part Number: OR2200LCDRM2U
Maximum output: 1320W / 2200VA
Typical backup time at half load: 13 minutes (620 Watts)
Typical backup time at full load: 5 minutes (1320 Watts)
Warranty: 1 year full replacement warranty
CyberPower Smart App LCD UPS 2200VA 1320W OR2200LCDRM2U Manual
OR2200LCDRM2U - CyberPower Smart App LCD UPS 2200VA Specifications:
General:
|
UPS Topology |
Line Interactive |
|
Energy Saving |
GreenPower UPS™ Bypass |
|
ENERGY STAR® Qualified |
Yes |
Input:
|
Voltage |
90 – 140 VAC |
||
|
Frequency Range |
47 – 63 Hz |
||
|
Plug Type |
|
||
|
Plug Style |
Straight |
||
|
Cord Length |
10 ft |
Output:
|
VA |
2000VA |
||
|
Watts |
1320W |
||
|
Automatic Voltage Regulation |
Yes |
||
|
On Battery Voltage |
120 VAC ± 10% |
||
|
On Battery Frequency |
60 Hz ± 1% |
||
|
On Battery Waveform |
Simulated Sine Wave |
||
|
Outlet Type |
|
||
|
Outlets – Total |
6 |
||
|
Outlets – Battery & Surge Protected |
8 |
||
|
Outlets – Surge-Only Protected |
2 |
||
|
|
Internal Circuitry Limiting |
||
|
Transfer Time |
4 ms |
Battery:
|
Runtime at Half Load |
13 minutes |
|
Runtime at Full Load |
5 minutes |
|
Battery Type |
Sealed Lead-Acid |
|
Battery Size |
12V/9Ah |
|
Battery Quantity |
4 |
|
User Replaceable |
Yes |
|
Replacement Battery Cartridge |
RB1290X4 |
|
Typical Recharge Time |
8 hours |
Surge Protection & Filtering:
|
Surge Suppression |
1,840 J |
|
Maximum Surge Current |
13,000 A |
|
Phone RJ11 / Ethernet RJ45 |
1-In, 1-Out (Combo) |
|
Coax Protection RG6 |
1-In, 1-Out |
Management & Communications:
|
|
Displays: |
|
HID Compliant USB Port |
Yes |
|
Serial Port |
No |
|
Audible Alarms |
On Battery |
|
Software |
PowerPanel® Business Edition |
|
SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD202, RMCARD203 or RMCARD205 |
|
Cable Management |
USB Cable, Serial Cable |
Physical:
|
Rack Size |
2U
|
|
Form Factor |
Rack/Tower |
|
Dimensions – W×H×D (in) |
17.25 × 3.5 × 15.75 inches |
|
Weight (lbs) |
57.0 lbs |
