Description
Details
Manufacturer: CyberPower

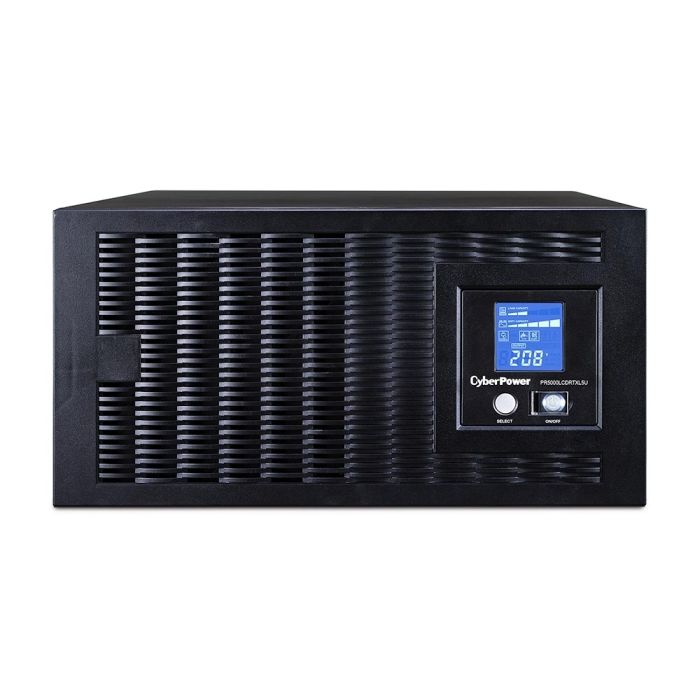

Model: CyberPower Smart App UPS 5000VA 4500W, LCD, RM, 5U, 208V
Condition: New batteries, refurbished UPS
Part Number: PR5000LCDRTXL5U
Maximum output: 4500W / 5000VA
Typical backup time at half load: 26 minutes (2250 Watts)
Typical backup time at full load: 10 minutes (4500 Watts)
Warranty: 1 year full replacement warranty
CyberPower Smart App UPS 5000VA 4500W RM 5U PR5000LCDRTXL5U Manual
PR5000LCDRTXL5U - CyberPower Smart App UPS 5000VA Specifications:
General:
|
UPS Topology |
Line Interactive |
Battery:
|
Battery Quantity |
16 |
|
Battery Size |
12V / 9Ah |
|
Battery Type |
Sealed Lead-Acid Battery |
|
Extended Battery Module |
BPL48V75ART2U |
|
Hot Swappable |
Yes |
|
Replacement Battery Cartridge |
RB1290X16 |
|
Replacement Battery Cartridge Quantity |
1 |
|
Runtime at Full Load |
10 min |
|
Runtime at Half Load |
26 min |
|
Hot-Swappable |
Yes |
|
User Replaceable |
Yes |
|
Typical Recharge Time |
8 Hours |
|
User Replaceable Battery |
Yes |
Input:
|
Adjustable Voltage Range |
131 – 268 VAC |
||
|
Circuit Breaker |
40 A |
||
|
Cold Start |
Yes |
||
|
Cord Length |
10 ft (3.0 m) |
||
|
Input Frequency Range |
47 Hz – 63 Hz |
||
|
Input Plug Type |
|
||
|
Nominal Input Voltage |
208 VAC |
||
|
Plug Style |
Straight |
||
|
Voltage Range |
148Vac – 254Vac |
Output:
|
Automatic Voltage Regulation |
Double BoostSingle Buck |
||||
|
On Battery Frequency |
50/60 Hz ± 0.1% |
||||
|
On Battery Voltage |
208 VAC ± 5% |
||||
|
On Battery Waveform |
Sine Wave |
||||
|
Outlet Type Type |
|
||||
|
Outlets – Battery & Surge Protected |
5 |
||||
|
Outlets – Critical Load |
2 |
||||
|
Outlets – Total |
5 |
||||
|
Output Power Factor |
0.8 |
||||
|
Overload Protection |
On Utility: Circuit Breaker Protected |
||||
|
Typical Transfer Time |
4 ms |
||||
|
VA |
5000VA |
||||
|
Watts |
4500W |
Surge Protection & Filtering:
|
EMI/RFI Filtration |
Yes |
|
Phone / Network Protection RJ11/RJ45 |
1-In / 1-Out (Combo) |
|
Surge Suppression |
2430 J |
Management & Communications:
|
AS400 Management |
None |
|
Audible Alarms |
Battery Mode |
|
Emergency Power Off (EPO) Port |
Yes |
|
HID Compliant USB Port |
Yes |
|
LCD |
Multifunction LCD |
|
LED Indicators |
Power On |
|
Management Cable |
USB Cable |
|
SNMP / HTTP Remote Monitoring |
Yes – with optional RMCARD205 - Not included |
|
Serial Port |
1 Serial |
|
Software |
PowerPanel® Business |
Physical:
|
Color |
Black |
|
Form Factor |
Rackmount |
|
Material of Construction |
Metal |
|
Rack Height |
5U |
|
Physical Dimensions – (WxHxD) (in) |
17 x 8.75 x 24.25 (in) |
|
Weight (lbs) |
222.0 lbs |
Environmental:
|
On Battery Thermal Dissipation |
4332 BTU/hr |
|
Online Thermal Dissipation |
490 BTU/hr |
|
Operating Elevation |
0 – 10000 ft (0 – 3048 m) |
|
Operating Relative Humidity |
0 – 95 % (non-condensing) |
|
Operating Temperature |
32 – 104 °F (0 – 40 °C) |
|
Storage Elevation |
0 – 50000 ft (0 – 15239 m) |
|
Storage Temperature |
5 – 113 °F (-15 – 45 °C) |
Additional Info
Additional Info
| Manufacturer | CyberPower |
|---|---|
| Form Factor | Rackmount |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | 208V AC |
| Output (VA) | 5000VA |
| Output Voltage | 208V AC |
| PDU Total Outlets | No |
