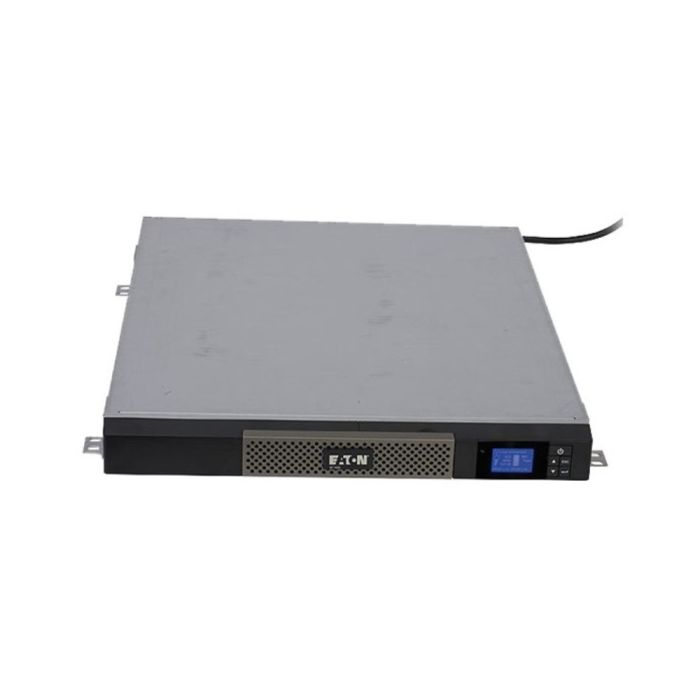

Eaton 5P UPS 1000VA 770W RM 1U 120V 5P1000R - Refurbished
Eaton 5P 1000VA 770W RM 2U 120V
Model: 5P1000R
Input: NEMA 5-15P
Output: (5) NEMA 5-15R (120V-15A)
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $459.99
Back Order
Manufacturer: Eaton
Model: Eaton 5P 1000VA 770W RM 2U 120V
Condition: New Batteries, Refurbished UPS
Part Number: 5P1000R
Maximum output: 1000VA / 770W
Typical backup time at half load: 12 minutes (385 Watts)
Typical backup time at full load: 5 minutes (770 Watts)
Warranty: 1 year full replacement warranty
Eaton 5P - 1000VA 770W RM 2U 120V 5P1000R Manual
5P1000R - Eaton UPS 770W Specifications:
General:
|
Product Name |
Eaton 5P UPS |
|
Catalog Number |
5P1000R |
|
UPC |
743172088277 |
|
Product Length/Depth |
20 in |
|
Product Height |
1.7 in |
|
Product Width |
17.4 in |
|
Product Weight |
32.5 lb |
|
Compliances |
CE Marked |
|
Certifications |
cULus Listed |
Product:
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
||
|
Output Waveform |
Sine Wave |
||
|
VA Rating |
1000VA |
||
|
Wattage |
770W |
||
|
Output Power Factor |
0.77 |
||
|
Form Factor |
Compact |
||
|
Receptacle |
|
||
|
Mounting Method |
Rackmount/Wallmount |
||
|
|
|||
|
Input Connection |
|
||
|
Noise Level |
<45 dB at 1 meter |
||
|
Feed Type |
1 |
||
|
Software Compatibility |
Eaton Intelligent Power Manager (included) |
||
|
User Interface |
LCD Graphical Display |
||
|
Battery Replacement |
User Replaceable |
||
|
Battery Type |
Sealed, lead-acid |
||
|
Efficiency |
95.9% |
||
|
Rack Size |
2U |
||
|
Voltage |
120V |
||
|
Input Cord Length |
6 ft |
||
|
Temperature Range |
0° to 35°C (32° to 95°F) |
||
|
Communication |
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included |
||
|
Relative Humidity |
0-90% non-condensing |
||
|
Color |
Black/Silver |
||
|
Rack Mounting Kit |
Yes |
||
|
Extended Battery Capability |
None; See Eaton 5PX UPS for extended runtimes options |
||
|
Output Voltage Range |
102-132 VAC |
||
|
Quantity |
1 |
||
|
Topology |
Line-interactive |
||
|
BTU Rating |
Online: 106, Battery 500 |
||
|
Type |
UPS |
||
|
Output Nominal Voltage |
120V default (100/120/125V) |
||
|
Input Nominal Voltage |
120V default (100/110/120/125V) |
||
|
Input Power Factor |
0.77 |
||
|
Expansion Slots |
One slot; Gigabit Network Card (Network-M2) is optional |
||
|
Input Voltage Range |
89-151 Vac (adjustable to 70-153 Vac) |
||
|
Input Frequency Range |
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
||
|
Nominal Frequency |
50-60 Hz |
||
|
Altitude |
Up to 10,000 ft (3000m) without de-rating |
