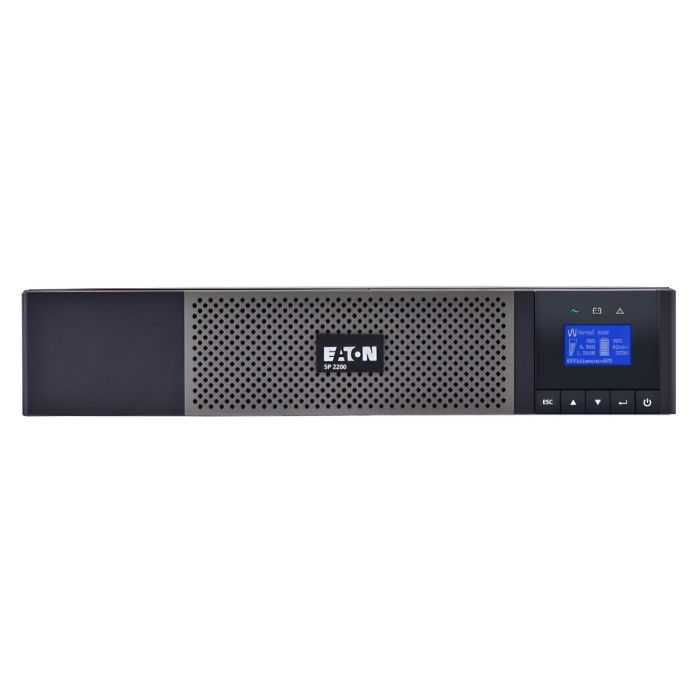

Eaton 5P UPS 1950VA 1920W 120V 20A RM 2U, Output:(8)5-20R, 5P2200 - Refurbished
Eaton 5P 2200VA 1920W RM 2U 120V 20A
Model: 5P2200
Input: NEMA 5-20P - 20A 120V
Output: (8) NEMA 5-20R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $804.99
Back Order
Manufacturer: Eaton
Model:Â Eaton 5P 2200VA 1920W RM 2U, 20A, 120V
Condition: New batteries, refurbished UPS
Part Number: 5P2200
Maximum output:Â 1950VAÂ / 1920W
Typical backup time at half load:Â 8 minutes (960 Watts)
Typical backup time at full load: 3Â minutes (1920 Watts)
Warranty: 1 year full replacement warranty
Eaton 5P 2200VA 1920W RM 2U 120V 5P2200 Manual
5P2200 - Eaton UPS 1920W Specifications:
General:
|
Product Name |
Eaton 5P UPS |
|
Catalog Number |
5P2200 |
|
Product Length/Depth |
20.6 in |
|
Product Height |
3.4 in |
|
Product Width |
17.4 in |
|
Product Weight |
65 lb |
|
Compliances |
FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b |
|
Certifications |
UL 497A |
Battery:
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
|
Battery Replacement |
User Replaceable |
|
Battery Type |
Sealed, Lead-acid |
|
Extended Battery Capability |
None; See Eaton 5PX UPS for extended runtimes options |
Electrical Output:
|
Topology |
Line-interactive |
|
Wattage |
1920W |
|
VA Rating |
1950VA |
|
Output Waveform |
Sine wave |
|
Voltage |
120V |
|
Output Power Factor |
0.98 |
|
Output Nominal Voltage |
120V default (100/120/125V) |
|
Output Voltage Range |
102-132 Vac |
|
Output Frequency |
50/60 Hz |
|
Feed Type |
1 |
Electrical Input:
|
Input Connection |
|
||
|
Input Cord Length |
8 ft |
||
|
Input Nominal Voltage |
120V default (100/110/120/127V) |
||
|
Input Voltage Range |
89-151 Vac (adjustable to 70-153 Vac) |
||
|
Nominal Frequency |
50-60 Hz |
||
|
Input Frequency Range |
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
||
|
Input Power Factor |
0.98 |
Communications:
|
Communication |
1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
|
Expansion Slots |
One slot; Gigabit Network Card (Network-M2) is optional |
|
Software Compatibility |
Eaton Intelligent Power Manager |
|
User Interface |
LCD graphical display |
Environmental:
|
Altitude |
Up to 10,000 ft (3000m) without de-rating |
|
BTU Rating |
Online: 305, Battery: 2047 |
|
Noise Level |
<45 dB at 1 meter |
|
Temperature Range |
0° to 40°C (32° to 104°F) |
|
Relative Humidity |
20-95% non-condensing |
|
Temperature Range |
0° to 40°C (32° to 104°F) |
Additional Specifications:
|
Form Factor |
Rack Mount 2U |
|
Efficiency |
97% |
