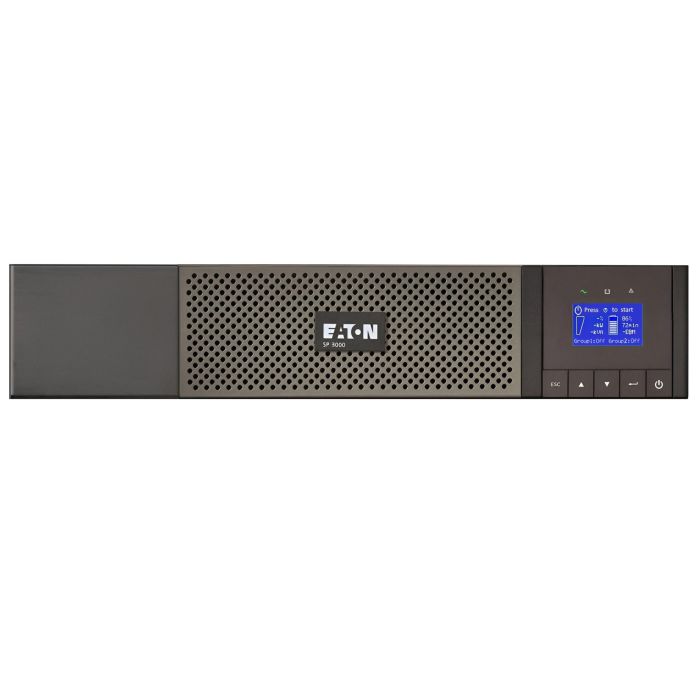

Eaton 5P 3000VA 2700W RM 2U 120V
Model: 5P3000
Input: NEMA L5-30P - 30A 120V
Output: (6) 5-20R, (1) L5-30R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
In stock
Manufacturer: Eaton
Model: Eaton 5P 3000VA 2700W RM 2U, 120V 30A
Condition: New batteries, refurbished UPS
Part Number: 5P3000
Maximum output: 3000VA / 2700W
Typical backup time at half load: 10 minutes (1350 Watts)
Typical backup time at full load: 4 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Eaton 5P - 3000VA 2700W RM 2U 120V 5P3000 Manual
5P3000 - Eaton UPS 2700W Specifications:
General:
Product Name |
Eaton 5P UPS |
Catalog Number |
5P3000 |
Product Length/Depth |
25.5 in |
Product Height |
17.4 in |
Product Width |
3.4 in |
Product Weight |
81 lb |
Compliances |
FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b |
Certifications |
cUL Listed |
Battery:
Battery Type |
Sealed, Lead-acid |
Battery Replacement |
User Replaceable |
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
Extended Battery Capability |
None; See Eaton 5PX UPS for extended runtimes options |
Electrical Output:
Voltage |
120V |
Receptacle |
(6) 5-20R; (1) L5-30R |
Wattage |
2700W |
Output Voltage Range |
102-132 Vac |
Output Frequency |
50/60 Hz |
Output Nominal Voltage |
120V default (100/120/125V) |
Topology |
Line-interactive |
Electrical Input:
Input Connection |
L5-30P |
Input Nominal Voltage |
120V default (100/110/120/127V) |
Nominal Frequency |
50-60 Hz |
Input Power Factor |
0.9 |
Input Cord Length |
10 ft |
Input Voltage Range |
89-151 Vac (adjustable to 70-153 Vac) |
Input Frequency Range |
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
Communications:
Communication |
1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
Expansion Slots |
One slot; Gigabit Network Card (Network-M2 or Network-MS) is optional |
Software Compatibility |
Eaton Intelligent Power Manager (included) |
Environmental:
Altitude |
Up to 10,000 ft (3000m) without de-rating |
Noise Level |
<50 dB at 1 meter |
Temperature Range |
0° to 40°C (32° to 104°F) |
BTU Rating |
Online: 305, Battery: 2047 |
Relative Humidity |
20-95% non-condensing |
Additional Specifications:
Form Factor |
Rackmount 2U |
Color |
Black/Silver |
Efficiency |
97% |
