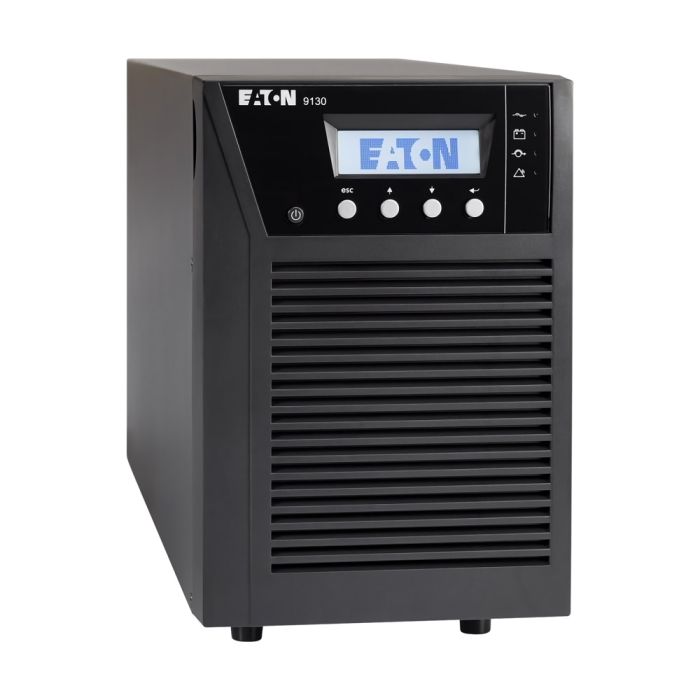

Eaton 9130 1500VA 1350W Tower 120V PW9130L1500T-XL - Refurbished
Eaton 9130 1500VA 1350W Tower 120V
Model: PW9130L1500T-XL
Input: NEMA 5-15P
Output: (6) NEMA 5-15R
Online Double Conversion - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $459.99
Back Order
Manufacturer: Eaton
Model: Eaton 9130 1500VA 1350W, 15A, 120V, Tower
Condition: New batteries, refurbished UPS
Part Number: PW9130L1500T-XL
Maximum output: 1350W / 1500VA
Typical backup time at half load: 18 minutes (675 Watts)
Typical backup time at full load: 7 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
Eaton 9130 - 1500VA 1350W Tower 120V PW9130L1500T-XL Manual
PW9130L1500T-XL - Eaton UPS 1500VA Specifications:
General:
|
Product Name |
Eaton 9130 UPS |
|
Catalog Number |
PW9130L1500T-XL |
|
Product Length/Depth |
16.9 in |
|
Product Height |
9.1 in |
|
Product Width |
6.3 in |
|
Product Weight |
41.9 lb |
|
Compliances |
FCC Class B |
|
Certifications |
VCCI |
|
Catalog Notes |
Thermal protection switches load to bypass in case of overheating, Allows UPS operation without utility input |
Battery:
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
|
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
|
Battery Rating |
(4) 12V, 9 Ah |
|
Battery Type |
Sealed, lead-acid |
|
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number PW9130N1500T-EBM |
Electrical Output:
|
Receptacle |
|
||
|
VA Rating |
1500VA |
||
|
Wattage |
1350W |
||
|
Topology |
Online/Double-conversion |
||
|
Output Power Factor |
0.9 |
||
|
Output Waveform |
Sine wave |
||
|
Voltage |
120V |
||
|
Output Nominal Voltage |
120V default (100/110/120/127V) |
||
|
Output Voltage Range |
±2% steady-state |
||
|
Output Frequency |
50/60 Hz |
Electrical Input:
|
Input Connection |
|
||
|
Input Cord Length |
6 ft |
||
|
Input Nominal Voltage |
120V default (100/110/120/127V) |
||
|
Input Frequency Range |
45-65 Hz |
||
|
Input Power Factor |
0.9 |
Communications:
|
Communication |
Best Dock Slot + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
|
Expansion Slots |
Yes |
|
User Interface |
Graphical display, 4-button programmable menu |
Environmental:
|
Altitude |
<3000m for nominal power, -5°C temp derating every 500m |
|
BTU Rating |
Online: 750, Battery: 1011 |
|
Noise Level |
<50 dB at 1 meter |
|
Relative Humidity |
5-90% non-condensing |
|
Temperature Range |
0° to 40°C (32° to 104°F) |
Additional Specifications:
|
Form Factor |
Tower |
|
Package Contents |
1 ready-to-go UPS |
|
Efficiency |
86% |
