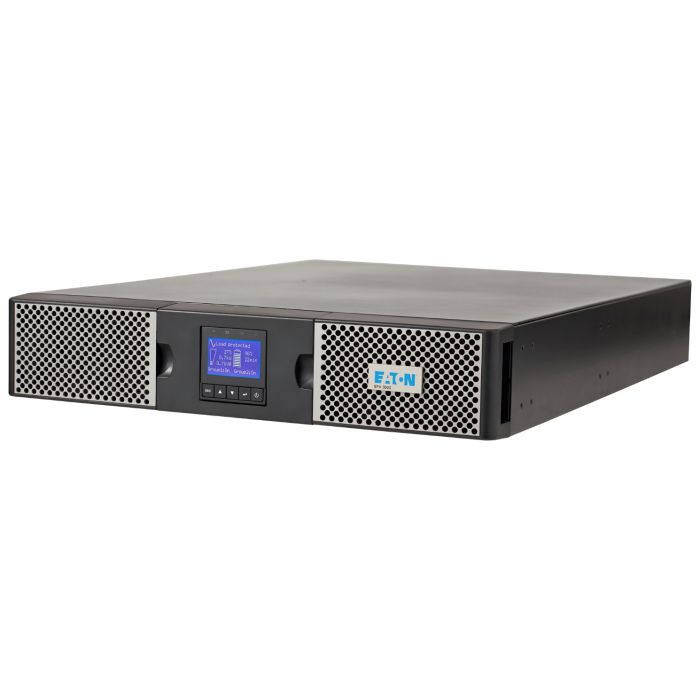

Eaton 5PX 3000VA 2700W RM 2U 120V
Model: 9PX3000RT
Input: NEMA L5-30P (30A 120V)
Output: (6) NEMA 5-20R, (1) NEMA L5-30R
Double Conversion UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
In stock
Manufacturer: Eaton
Model: Eaton 9PX 3000VA 2700W, RM, 2U, 120V, 30A
Condition: New batteries, refurbished UPS
Part Number: 9PX3000RT
Maximum output: 2700W / 3000VA
Typical backup time at half load: 14 minutes (1350 Watts)
Typical backup time at full load: 5 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
Eaton 9PX - 3000VA 2700W RM 2U 120V 9PX3000RT User's Manual
9PX3000RT - Eaton UPS 3000VA Specifications:
General:
Product Name |
Eaton 9PX UPS |
Catalog Number |
9PX3000RT |
Product Length |
23.8 in. |
Product Height |
3.4 in. |
Product Width |
17.3 in. |
Product Weight |
63.1 lbs. |
Compliances |
IEC 62040-2 Cat C1 |
Certifications |
cULus Listed |
Catalog Notes |
9PX replaces Evolution:_81715 and 81716, Add up to 4 EBMs, Allows start of UPS without utility power. |
Electrical Input:
Input Connection |
|
||
Input Cord Length |
8ft. |
||
Input Nominal Voltage |
120V default (100/110/120/125V) |
||
Input Frequency Range |
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
||
Input Power Factor |
>0.99 typical |
Electrical Output:
Output Receptacles |
|
||||
Output Power Factor |
0.9 |
||||
Output Waveform |
True Sine Wave |
||||
Voltage |
102V |
||||
VA Rating |
3000VA |
||||
Wattage |
2700W |
||||
Output Nominal Voltage |
120V default (100/110/120/125V) |
||||
Topology |
Online/Double-conversion |
Battery:
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
Battery Type |
Sealed, lead-acid |
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT |
Communications:
Communication |
MiniSlot + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
Expansion Slots |
(1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately. |
Software Compatibility |
Intelligent Power Software Suite |
User Interface |
Graphical display, 5-button programmable menu |
