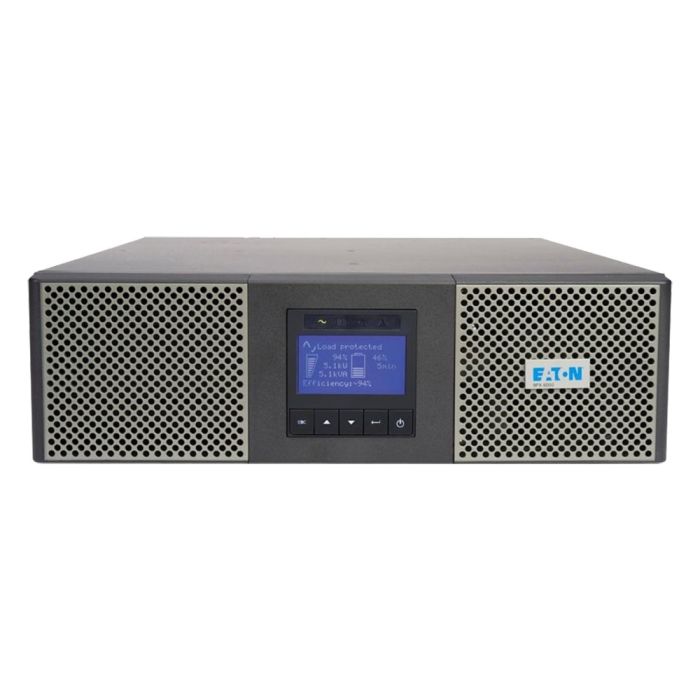

Eaton 9PX5K UPS 5000VA 4500W RM 3U 200-240V 20A Output: (2)L6-20R, (2)L6-30R -Refurbished
Eaton 9PX 5000VA 4500W RM 3U 208V 20A Network Card-MS Pre-Installed
Model: 9PX5K
Input: NEMA L6-30P (200V; 208V; 220V; 230V; 240V - 20A)
Output: (2) L6-20R, (2) L6-30R
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $2,184.99
Back Order
Manufacturer: Eaton
Model: Eaton 9PX 5000VA 4500W, RM 3U, 208V, 20A - Network Card-MS Pre-Installed
Condition: New batteries, refurbished UPS
Part Number: 9PX5K
Maximum output: 4500W / 5000VA
Typical backup time at half load: 11 minutes (2250 Watts)
Typical backup time at full load: 3 minutes (4500 Watts)
Warranty: 1 year full replacement warranty
Eaton 9PX UPS 5000VA 4500W RM 3U 208V 9PX5K Manual
9PX5K - Eaton UPS 5000VA Specifications:
General:
|
Product Name |
Eaton 9PX UPS |
|
Catalog Number |
9PX5K |
|
Product Length/Depth |
28.4 in. |
|
Product Height |
5.1 in. |
|
Product Width |
17.3 in. |
|
Product Weight |
106 lb. |
|
Compliances |
CE Marked |
|
Certifications |
cULus Listed |
Product Specifications:
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
||
|
Output Waveform |
True sine wave |
||
|
Max Number of Battery Packs |
4 |
||
|
Wattage |
4500W |
||
|
Output Power Factor |
0.9 |
||
|
Form Factor |
Rack |
||
|
Includes Network Card |
Yes |
||
|
Input Connection |
|
||
|
Software Compatibility |
Intelligent Power Software Suite |
||
|
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
||
|
Battery Type |
Sealed, Lead-acid |
||
|
Efficiency |
93% |
||
|
Number Of Outputs Hardwired |
1 |
||
|
Special Features |
Gigabit Network Card (NETWORK-MS) included |
||
|
Relative Humidity |
0-96% non-condensing |
||
|
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number 9PXEBM180RT |
||
|
Output Voltage Range |
±1% steady-state |
||
|
Topology |
Online/Double-conversion |
||
|
BTU Rating |
Online: 1150, Battery: 1560 |
||
|
Number Of Outputs L6-30R |
2 |
||
|
Input Nominal Voltage |
200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
||
|
Input Power Factor |
>0.99 typical |
||
|
Input Frequency Range |
60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
||
|
Iinternal Bypass |
Yes |
||
|
VA Rating |
5000VA |
||
|
Receptacle |
(2) L6-20R, (2) L6-30R, Hardwired |
||
|
Noise Level |
<45 dB at 1 meter |
||
|
User Interface |
Graphical display, 5-button programmable menu |
||
|
Rack Size |
3U |
||
|
Voltage |
208 V |
||
|
Input Cord Length |
6 ft |
||
|
Temperature Range |
0° to 40°C (32° to 104°F) |
||
|
Ethernet Interface |
Yes |
||
|
Protocol |
SNMP |
||
|
Communication |
Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
||
|
Relative Humidity |
0-95% non-condensing |
||
|
Rack Mounting Kit |
Yes |
||
|
Output Frequency |
50/60 Hz |
||
|
Runtime At Full Load |
3 min |
||
|
Number Of Outputs L6-20R |
2 |
||
|
Type |
UPS |
||
|
Output Nominal Voltage |
200V; 208V; 220V; 230V; 240V; 250V |
||
|
Expansion Slots |
(1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-MS) included |
||
|
Altitude |
<1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
