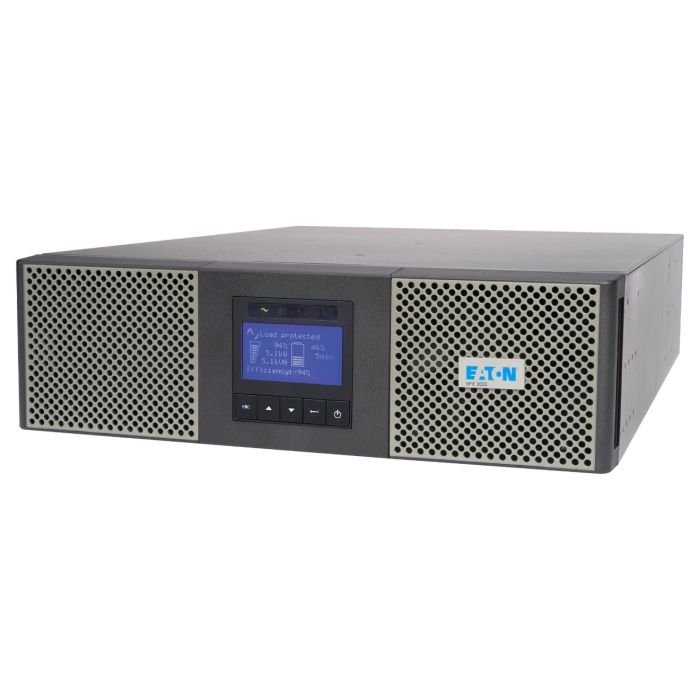

Eaton 9PX 8000VA 7200W Power Module 208V ,RM 3U 9PX8KPM - Refurbished
Eaton 9PX 8000VA 7200W 208V Power Module - Hardwired Input/Output, Extended Run,RMÂ 3UÂ
Model:Â 9PX8KPM
Input:Â Hardwire
Output:Â 30AÂ 200V; 208V; 220V; 230V; 240V; 250V - Hardwired
Double Conversion, Online UPS, Pure Sine wave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
CAD $4,599.99
In stock
Manufacturer: Eaton
Model: Eaton 9PX8KPM 8000VA 7200W 7200W, Online, RM 3U, 208V UPS
Condition: New Batteries, Refurbished UPS
Part Number:Â 9PX8KPMÂ
Maximum output: 7200W / 8000VA
Typical backup time at half load: 16Â minutes (3600 Watts)
Typical backup time at full load:Â 5Â minutes (7200 Watts)
Warranty: 1 year full replacement warranty
Included: 9PX8KMP (UPS) with Optional External Battery Cabinet (9PXEBM240RT)
Â
Eaton 9PX8KPM 8000VA 7200W 208V - User's Guide
Â
Eaton 9PX8KPM UPS Specifications:
|
General :Â |
 |
|
Product Name Â
|
Eaton 9PX UPS |
|
Catalog Number |
9PX8KPM |
|
Color |
Black |
|
Rating (VA/Watts) |
8000VA / 7200W |
|
Diagnostics |
Full system self-test |
|
UPS Bypass |
Automatic bypass |
|
Dimensions (L x W x H, inches) |
23.5" x 17.3" x 5.1" |
|
Weight (lbs) |
93lbs |
|
Warranty |
1 Year Replacement Warranty |
|
Rail Kit: |
Included |
|
Remote Emergency Power off (REPO) |
Emergency shutdown control through the REPO port |
|
Efficiency |
>95% in high-efficiency mode; >86% in online mode |
|
 |
 |
|
Electrical Input |
 |
|
Input Connection |
Hardwired |
|
Input Voltage Range |
208V default (200/208/220/230/240/250V) |
|
Nominal Voltage |
208V |
|
Frequency |
50/60 Hz |
|
Frequency Range |
 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
|
Input Power Factor |
 >0.99 typical |
|
 |
 |
|
Electrical Output |
 |
|
Receptacle |
Hardwired |
|
Topology |
Online/ Double-Conversion |
|
Wattage |
7200 W |
|
VA Rating |
8000 VA |
|
Output Waveform |
True sine wave |
|
Voltage |
208V |
|
Nominal Voltage |
208V default (200/208/220/230/240/250V) |
|
Power Factor |
0.9 |
|
Frequency Regulation |
±3% Hz online |
|
Output Voltage Range |
±1% steady-state |
|
Output Frequency |
50/50 Hz |
|
 |
 |
|
Battery |
 |
|
Battery Management |
ABM techonology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement ) |
|
Battery Type |
Sealed, lead-acid |
|
Extended Battery capability |
Yes |
|
Optional Extended Battery Module |
9PXEBM240RT (Not - Included) |
|
Maximum number of extended battery modules (EBM) |
5 Battery Management |
|
 |
 |
|
Communications |
 |
|
User Interface |
Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish |
|
LEDs |
Four status-indicating LEDs |
|
Communication Ports |
Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay communication slot |
|
Expansion Slots |
(1) Mini-Slot (MS) expansion port with Gigabit Network card NETWORK-M2 Optional |
|
Ethernet Interface |
Yes |
|
User Interface: |
Graphical display, 5-button programmable menu |
|
Software Compatibility |
Intelligent Power Software Suite |
Â
Â
Enviromental
|
Altitude |
<1000m for nominal power,10% power degrading every 1000m (up to 3000m) |
|
BTU Rating Â
|
Online: 176, Battery: 2375Â |
|
Noise level |
 <45 db at 1 meter |
|
Relative Humidiy |
0-95% non-condensing |
|
Temperature range |
0* to 40C (32 to 104*F) |
