Description
Details
Manufacturer: Eaton

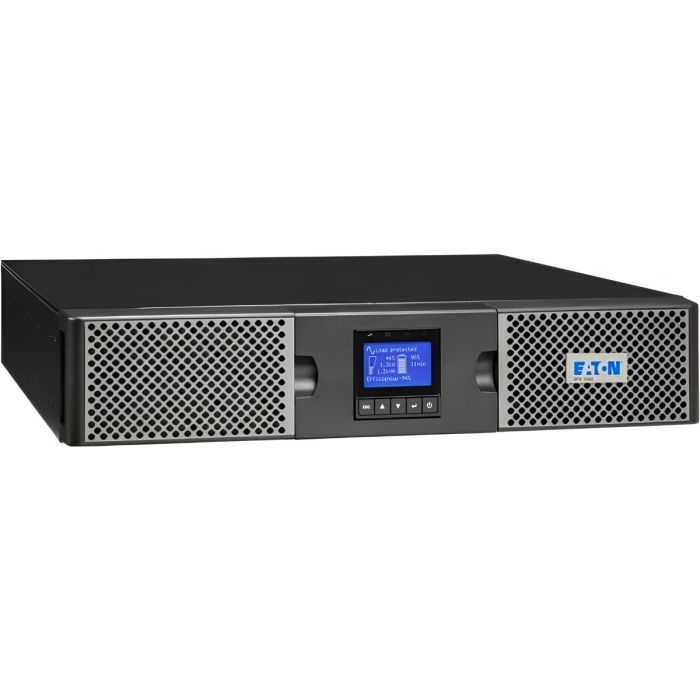

Model: Eaton 9PX UPS 1500VA 1350W, RM 2U, LCD, 120V, 15A
Condition: New batteries, refurbished UPS
Part Number: 9PX1500RT
Maximum output: 1350W / 1500VA
Typical backup time at half load: 16 minutes (675 Watts)
Typical backup time at full load: 6 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
Eaton 9PX UPS 1500VA 1350W RM 2U LCD 120V 9PX1500RT Manual
9PX1500RT - Eaton UPS 1500VA Specifications:
General:
|
Product Name |
Eaton 9PX UPS |
|
Catalog Number |
9PX1500RT |
|
Product Length/Depth |
17.7 in. |
|
Product Height |
3.4 in. |
|
Product Width |
17.3 in. |
|
Product Weight |
42.5 lbs. |
|
Compliances |
IEC 62040-2 Cat C1 |
|
Certifications |
cULus Listed |
Electrical Input:
|
Input Connection |
|
||
|
Input Nominal Voltage |
120V default (100/110/120/125V) |
||
|
Input Cord Length |
8 ft. |
||
|
Input Frequency Range |
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
||
|
INPUT POWER FACTOR |
>0.99 typical |
Electrical Output:
|
Output Receptacles |
|
||
|
Output Power Factor |
0.9 |
||
|
Output Waveform |
True sine wave |
||
|
VA Rating |
1500VA |
||
|
Wattage |
1350W |
||
|
Output Nominal Voltage |
120V default (100/110/120/125V) |
||
|
Topology |
Online/Double-conversion |
Battery:
|
Battery Type |
Sealed, lead-acid |
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
|
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
|
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number 9PXEBM48RT |
Communications:
|
Communication |
MiniSlot + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relayCommunication slot |
|
Expansion Slots |
(1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately. Gigabit Network Card part number: NETWORK-M2 Modbus card part number: MODBUS-MS Relay card part number: RELAY-MS |
|
Software Compatibility |
Intelligent Power Software Suite |
|
User Interface |
Graphical display, 5-button programmable menu |
Additional Info
Additional Info
| Manufacturer | Eaton Powerware |
|---|---|
| Form Factor | Rackmount |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | 120V AC |
| Output (VA) | 1500VA |
| Output Voltage | 120V AC |
| PDU Total Outlets | No |
