Eaton Powerware

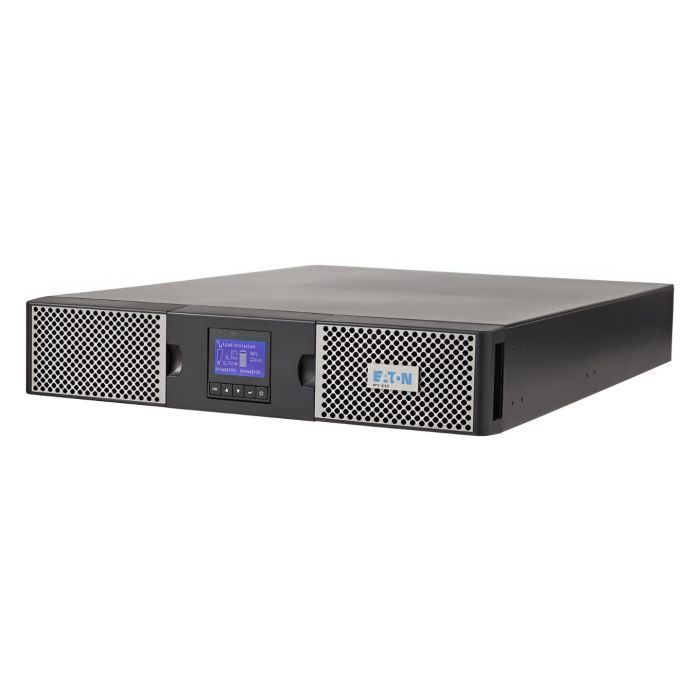

Eaton 9PX UPS 2000VA 1800W RM 2U 120V 9PX2000RT - Refurbished
Eaton 9PX UPS 2000VA 1800W RM 2U 120V
Model: 9PX2000RT
Input: NEMA 5-20P (120V - 20A)
Output: (6) NEMA 5-20R, (1) L5-20R
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
CAD $1,149.99
In stock
Manufacturer: Eaton
Model: Eaton 9PX UPS 2000VA 1800W, RM 2U, 120V, 20A - Double conversion, online UPS
Condition: New batteries, refurbished UPS
Part Number: 9PX2000RT
Maximum output: 1800W / 2000VA
Typical backup time at half load: 20 minutes (900 Watts)
Typical backup time at full load: 8 minutes (1800 Watts)
Warranty: 1 year full replacement warranty
Eaton 9PX UPS 2000VA 1800W RM 2U 120V 9PX2000RT Manual
9PX2000RT - Eaton UPS 2000VA Specifications:
General:
|
Product Name |
Eaton 9PX UPS |
|
Catalog Number |
9PX2000RT |
|
Product Length/Depth |
23.8 in. |
|
Product Height |
3.4 in. |
|
Product Width |
17.3 in. |
|
Product Weight |
75 lb. |
|
Compliances |
IEC 62040-2 Cat C1 |
|
Certifications |
cULus Listed |
Product:
|
Battery Management |
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
||||
|
Output Waveform |
True sine wave |
||||
|
VA Rating |
2000VA |
||||
|
Max Number of Battery Packs |
4 |
||||
|
Wattage |
1800W |
||||
|
Output Power Factor |
0.9 |
||||
|
Form Factor |
Rack |
||||
|
Receptacle |
|
||||
|
Input Connection |
|
||||
|
Noise Level |
<47 dB at 1 meter |
||||
|
Software Compatibility |
Intelligent Power Software Suite |
||||
|
User Interface |
Graphical display, 5-button programmable menu |
||||
|
Battery Replacement |
Hot-swappable internal batteries and extended battery modules (EBMs) |
||||
|
Battery Type |
Sealed, Lead-acid |
||||
|
Efficiency |
91% |
||||
|
Rack Size |
2U |
||||
|
Voltage |
120V |
||||
|
Input Cord Length |
8 ft |
||||
|
Temperature Range |
0° to 40°C (32° to 104°F) |
||||
|
Communication |
MiniSlot + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
||||
|
Relative Humidity |
0-96% non-condensing |
||||
|
Color |
Black/Silver |
||||
|
Rack Mounting Kit |
Not included |
||||
|
Extended Battery Capability |
Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT - Not included |
||||
|
Output Voltage Range |
±1% steady-state |
||||
|
Topology |
Online/Double-conversion |
||||
|
BTU Rating |
Online: 578, Battery: 974 |
||||
|
Output Frequency |
50/60 Hz |
||||
|
Runtime at Full Load |
8 mins |
||||
|
Type |
UPS |
||||
|
Output Nominal Voltage |
120V default (100/110/120/125V) |
||||
|
Input Nominal Voltage |
120V default (100/110/120/125V) |
||||
|
Input Power Factor |
>0.99 typical |
||||
|
Expansion Slots |
(1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately. |
||||
|
Input Frequency Range |
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
||||
|
Internal Bypass |
Yes |
||||
|
Number of Outputs 5-20R |
6 |
||||
|
Number of Outputs L5-20R |
1 |
||||
|
Altitude |
0-1500m (0° to 40°C), 1500-3000m (0° to 35°C) |
