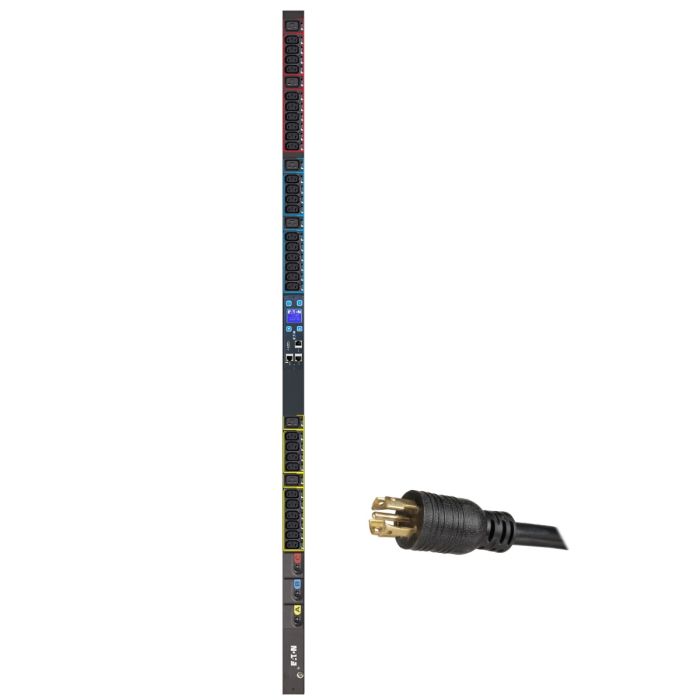

Eaton EMI304-10 Metered Input rack PDU, 0U, 8.64 kW max, 120/208V, 24A - Refurbished
Eaton Metered Input PDU Zero U, 120/208V, 24A, 8.64 kW – TAA Compliant
Model: EMI304-10
Input Connection: NEMA L21-30P (120/208V, 3-Phase)
Cord Length: 10 ft
Output Connections: (30) IEC C13, (6) IEC C19
Phase: 3-Phase
Form Factor: 0U (Vertical Rack Mount)
Condition: Professionally Refurbished PDU
Warranty: 1-Year Full Replacement Warranty
CAD $804.99
In stock
Manufacturer: Eaton
Model: EMI304-10
Input Connection: NEMA L21-30P, 10 ft cord
Output Connections: (30) IEC C13, (6) IEC C19
Phase: Three-Phase
Maximum Power: 8.64 kW
Current Rating / Nominal Input Voltage: 24 A / 120–208V
Frequency: 50–60 Hz
Form Factor: 0U (Vertical Rack Mount)
Condition: Refurbished PDU
Description: The Eaton EMI304-10 Metered Input PDU is a 8.64 kW, 120/208V three-phase rack power distribution unit designed for reliable power delivery and real-time input-level monitoring in data center environments. It features a NEMA L21-30P input with 10 ft cord and provides 36 total outlets (30 C13 and 6 C19) for flexible equipment connectivity.
This 0U vertical PDU supports remote monitoring via SNMP and web interface, allowing visibility into load, voltage, and power usage without outlet switching capability. Built for high-density IT deployments, it offers durable construction and efficient power distribution in a compact rack-mount design.
Eaton EMI304-10 Metered Input rack PDU, 0U, 8.64 kW - User Manual
Eaton EMI304-10 Specifications:
General:
|
Product Name |
Eaton metered input PDU |
|
Catalog Number |
EMI304-10 |
|
UPC |
786685885056 |
|
Product Type |
Metered Input PDU |
|
Form Factor |
0U (Vertical) |
|
Warranty |
3 years |
|
Certifications |
UL Listed |
Input
|
Input Voltage |
120/208V (3-phase) |
|
Frequency |
50–60 Hz |
|
Input Connection |
NEMA L21-30P |
|
Amperage Rating |
24A |
|
Max Power Capacity |
8.64 kW |
|
Cord Length |
10 ft |
|
Phase |
Three-phase |
Output
|
Output Connections |
(30) IEC C13 + (6) IEC C19 |
|
Total Outlets |
36 |
|
Outlet Types |
IEC 60320 C13 / C19 |
|
Outlet Control |
❌ No soportado (no switching) |
|
Outlet-Level Metering |
❌ No disponible (solo medición de entrada) |
|
Output Voltage |
120V / 208V (según sistema 3-phase de entrada) |
|
Power Distribution |
Distribución a nivel de rack (no conmutada) |
|
Load Balancing |
Dependiente de la fase de entrada (3-phase distribution) |
Monitoring & Metering
|
Metering Type |
Input level (no per-outlet metering) |
|
Measurement Accuracy |
±1% (billing-grade) |
|
Load Monitoring |
Corriente por fase (A) |
|
Power Monitoring |
kW total estimado |
|
Energy Monitoring |
kWh acumulado (dependiente de firmware) |
Communications & Management
|
Control Interface |
Web-based management interface (HTTP/HTTPS) + optional CLI via serial (RS-232) |
|
Local Display |
LED/LCD digital display for real-time input load monitoring (Amps per phase) |
|
Remote Monitoring |
Yes, full remote monitoring via embedded network interface |
|
Communication Protocols |
SNMP v1/v2c/v3, HTTP/HTTPS, SMTP (email alerts), Telnet (model/firmware dependent) |
|
Network Interface |
Built-in 10/100 Ethernet port |
|
Serial Interface |
RS-232 for local configuration and direct management |
|
Alarm Thresholds |
User-configurable thresholds for current (per phase), overload conditions |
|
Alarm Types |
Visual (local display) + remote alerts (network-based) |
|
Notifications |
SNMP traps and email alerts (SMTP configuration required) |
|
Load Monitoring |
Real-time input current monitoring per phase (A) |
|
Energy Monitoring |
Input energy consumption tracking (kWh) depending on firmware |
|
Data Logging |
Event logging and load history via web interface |
|
Firmware Upgrade |
Supported via network interface (web/FTP depending on firmware) |
|
User Access Control |
Multi-user access with role-based permissions |
|
Security |
HTTPS (SSL), SNMPv3 authentication/encryption, configurable network access |
|
Environmental Monitoring |
Optional via external sensors (temperature/humidity) depending on Eaton platform support |
Physical
|
Height |
66.5 in |
|
Width |
2.05 in |
|
Depth |
2.1 in |
|
Weight |
17.2 lb |
|
Mounting |
Vertical 0U (rack side mounting) |
|
Color |
Black |
Environmental Specifications
|
Operating Temperature |
0°C a 60°C (32°F a 140°F) |
|
Storage Temperature |
-25°C a 70°C (-13°F a 158°F) |
|
Operating Humidity |
5% a 95% (non-condensing) |
|
Storage Humidity |
5% a 95% (non-condensing) |
|
Operating Elevation |
0 a 3,000 m (0 a 9,843 ft) |
|
Storage Elevation |
0 a 15,000 m (0 a 49,213 ft) |
